RAM-B-149Z-A-PD3

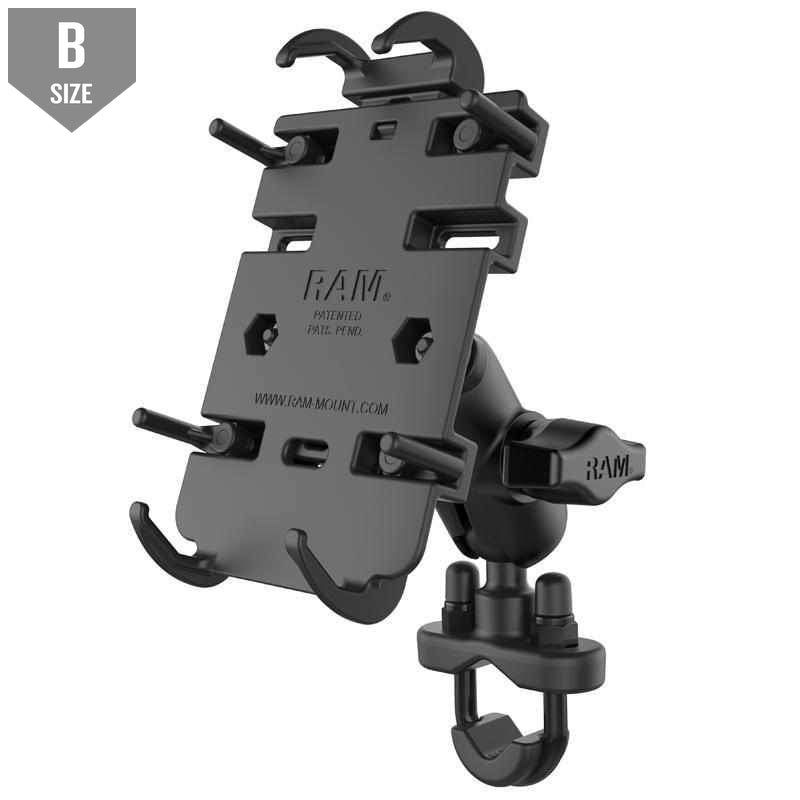

RAM Quick-Grip™ Phone Mount w Handlebar U-Bolt Base (RAM-B-149Z-A-PD3)

Name: RAM Quick-Grip™ Phone Mount w Handlebar U-Bolt Base (RAM-B-149Z-A-PD3)
Brand: Modest Mounts
SKU: RAM-B-149Z-A-PD3
Price: 100.0 AUD
Availability: InStock

Size Guide

$100.00 You Save 11% ( $13.40 ) You Save 11% ( $13.40 )

Included:

1 x RAM Quick-Grip Cradle For Phones (RAM-HOL-PD3U)
1 x RAM Rail Base with U-Bolt & 1" Ball (RAM-B-231ZU)
1 x RAM Short Double Socket Clamp Arm B Size (RAM-B-201U-A)
1 x RAM Diamond Base with 1" B Size Ball (RAM-B-238U)

The RAM-B-149Z-A-PD3 allows you to attach your phone to your handlebars, or any other rail that is between 0.50" and 1.25" (1.27cm and 3.17cm) in diameter.

This version of the spring-loaded RAM^® Quick-Grip^™ holder provides a secure fit for a variety of regular size phones and other devices. The adjustable side keepers ensure that devices like GPS units and Bluetooth speakers within the listed compatible dimensions will also fit in the holder.

Included is a short RAM^® double socket arm and zinc-coated handlebar U-Bolt base.

Compatible Devices

Any device that fits the dimensions below:

Cradle Clamping Dimensions:
Height Range: 4.75" - 5.75" (12.07cm to 14.61cm)
Width Range: 2.25" - 3.25" (5.72cm to 8.25cm)

Max Depth: 0.72"

ie. iPhone 11 Pro, XS, X, SE, 8, 7, 6, 6S, etc
Samsung Galaxy S5, S6, S7...
Google Pixel
See 'Compatibility' Tab below for more devices

Specs

U-Bolt Dimensions:

0.50" to 1.25" (1.27cm and 3.17cm)

Cradle Clamping Dimensions:

Height Range: 4.75" - 5.75" (12.07cm to 14.61cm)
Width Range: 2.25" - 3.25" (5.72cm to 8.25cm)
Max Depth: 0.72"

Material: High Strength Composite and Powder Coated Marine Grade Aluminum
Ball Size: B Size 1" Rubber Ball
Note: Part number reflects product packaged in clear clam shell for store shelf display.
Weight: 1.0 lbs.

Help

Collections: All, B Size Components 1", Best Selling Products, Bicycle Mounts, Motorcycle Mounts, Newest Products, Phone Mounts

Customer Reviews

5.0 Based on 3 Reviews

Write a Review Ask a Question

Reviews
Questions

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

12/06/2021

Paul V.

Australia

Max save my bacon, great customer service !!!

Max helped me select the right config and even when I ******* up my order max proactively checked it and corrected it before shipment. What a superstar.

RAM Quick-Grip™ Phone Mount w Handlebar U-Bolt Base (RAM-B-149Z-A-PD3)

09/03/2021

Stephen F.

Australia

Good

Good....................

RAM Quick-Grip™ Phone Mount w Handlebar U-Bolt Base (RAM-B-149Z-A-PD3)

17/07/2020

Craig B.

Australia

RAM Quick Grip Mount

Absolutely awesome, best ever phone gps mount. Only one to last the punishment so far in the tough environment our 500 exc's operate in. DACA Tours https://dacatours.com.au

RAM Quick-Grip™ Phone Mount w Handlebar U-Bolt Base (RAM-B-149Z-A-PD3)

Ball Sizes		Short Arm	Medium Arm	Long Arm
A Size	Overall Length	N/A	2.11" / 53.6 mm	3.57" / 90.7 mm
A Size	Socket-to-Socket	N/A	1.67" / 42.4 mm	3.12" / 79.3 mm
B Size	Overall Length	2.42" / 61.5 mm	3.73" / 94.7 mm	6.00" / 152.4 mm
B Size	Socket-to-Socket	1.75" / 44.5 mm	3.00" / 76.2 mm	5.31" / 134.9 mm
C Size	Overall Length	3.56" / 90.4 mm	5.69" / 144.5 mm	9.13" / 231.9 mm
C Size	Socket-to-Socket	2.50" / 63.5 mm	4.66" / 118.4 mm	8.00" / 203.2 mm
D Size	Overall Length	5.10" / 129.5 mm	8.44" / 214.4 mm	12.98" / 329.7 mm
D Size	Socket-to-Socket	3.60" / 91.4 mm	6.88" / 174.8 mm	11.41" / 289.8 mm
E Size	Overall Length	7.31" / 185.7 mm	12.63" / 320.8 mm	N/A
E Size	Socket-to-Socket	4.98" / 126.49 mm	9.88" / 251 mm	N/A

RAM Quick-Grip™ Phone Mount w Handlebar U-Bolt Base (RAM-B-149Z-A-PD3)
