RAM® Tab-Tite™ Rugged Tablet Holder - Installation Guide

This video shows how to assemble a RAM® Tab-Tite™ rugged tablet holder, including the holder body, end cups, mounting hardware and rear adapter connection.

What this video covers

The RAM® Tab-Tite™ holder uses a tablet holder body, interchangeable end cups and mounting hardware to create a cradle for compatible tablets. This video explains how the main pieces fit together before the holder is attached to the rest of a RAM® mounting system.

It covers the end cups, #8 nylock nuts, rear nut pockets, sheet metal screws and the rear ball or adapter connection. This is useful if you are assembling a Tab-Tite™ holder, checking what hardware is involved, or comparing replacement end cups and complete tablet mounting kits.

Use the related products and collections below to find compatible RAM® Mounts parts available from Modest Mounts in Australia.

Related products

RAM Tab-Tite™ Cradle for 9"-10.5" Tablets (RAM-HOL-TAB20U) - Modest Mounts

RAM Tab-Tite™ Cradle for 9"-10.5" Tablets (RAM-HOL-TAB20U)

RAM Tab-Tite™ Cradle for iPad Pro 9.7 with Case + More (RAM-HOL-TAB8U)

RAM Tab-Tite™ Cradle for iPad Pro 9.7 with Case + More (RAM-HOL-TAB8U)

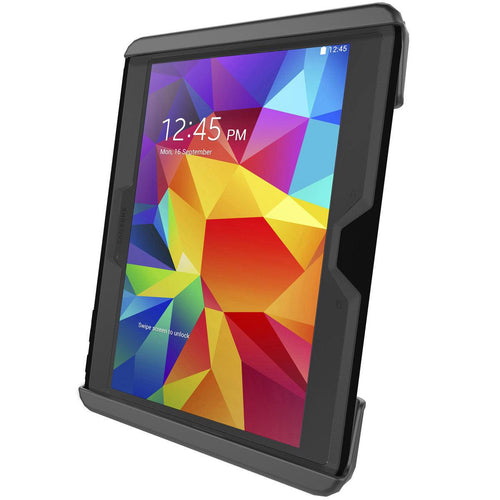

RAM Tab-Tite™ for 10" Tablets with Case + More (RAM-HOL-TAB25U)

RAM Tab-Tite™ for 10" Tablets with Case + More (RAM-HOL-TAB25U)

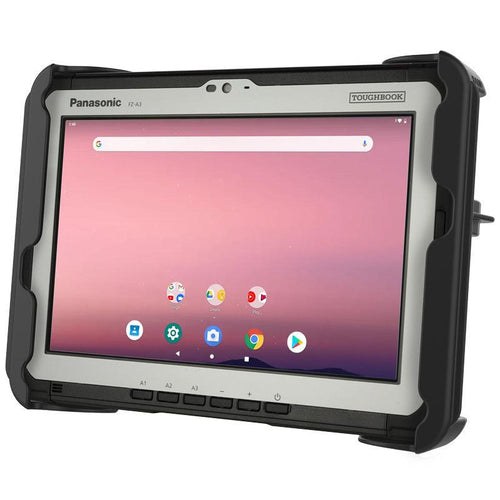

RAM Tab-Tite Holder for Panasonic FZ-G2 & FZ-A3 (RAM-HOL-TAB34U)

RAM Tab-Tite Holder for Panasonic FZ-G2 & FZ-A3 (RAM-HOL-TAB34U)

RAM Tab-Tite™ for 10" Tablets, Tab 4 + more (RAM-HOL-TAB26U) - Modest Mounts

RAM Tab-Tite™ for 10" Tablets, Tab 4, Tab S9 & more (RAM-HOL-TAB26U)

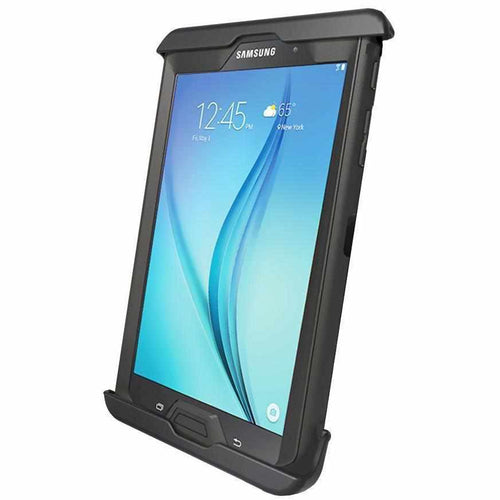

RAM Tab-Tite™ Cradle for 8" Tablets w Thick Case (RAM-HOL-TAB29U) - Modest Mounts

RAM Tab-Tite™ Cradle for 8" Tablets w Thick Case (RAM-HOL-TAB29U)

RAM Tab-Tite Backplate (RAM-HOL-ACU) - Modest Mounts

RAM Tab-Tite Backplate (RAM-HOL-ACU)

Related collections

Tab-Tite™ Tablet Holders

Tab-Lock™ Tablet Holders

Tablet Mounts For Cars

Transcript

This video provides a step-by-step assembly guide for the RAM® Tab-Tite™ mounting system.

Required Components:
• (1) Tab-Tite™ Body
• (2) End Cups
• (4) #8-32 x 1/2" Machine Screws
• (4) #8-32 Nylock Nuts
• (10) #4 x 3/8" Sheet Metal Screws

Assembly Steps:
• Step 1: Attach the two end cups to the main body using the ten #4 sheet metal screws.
• Step 2: Insert the four #8 nylock nuts into the designated nut pockets on the back of the device body, ensuring the nylock side is facing outward.
• Step 3: Align the mounting ball (sold separately) with the back of the device body and secure it using the four #8 machine screws.

For help choosing compatible RAM® Mounts components in Australia, contact Modest Mounts or use the related products and collections on this page.
