RAM® Tab-Lock™ Installation Guide

This video shows how to assemble a RAM® Tab-Lock™ tablet holder, including the locking body, end cups, ball adapter and cradle adjustment process.

What this video covers

The RAM® Tab-Lock™ holder is a locking tablet cradle designed for customers who want extra security around a compatible tablet. This video walks through the assembly process and explains how the major parts of the holder fit together.

It covers the rear ball adapter, nut placement, top and bottom end cups, locking top slide, front cover and the calibration step used to set the holder to the correct tablet size. This is most useful when comparing lockable tablet cradles, replacement end cups and complete RAM® tablet mounting kits.

Use the related products and collections below to find compatible RAM® Mounts parts available from Modest Mounts in Australia.

Related products

RAM Locking Cradle iPad Air with Case & More (RAM-HOL-TABL20U) - Modest Mounts

RAM Locking Cradle iPad Air with Case & More (RAM-HOL-TABL20U)

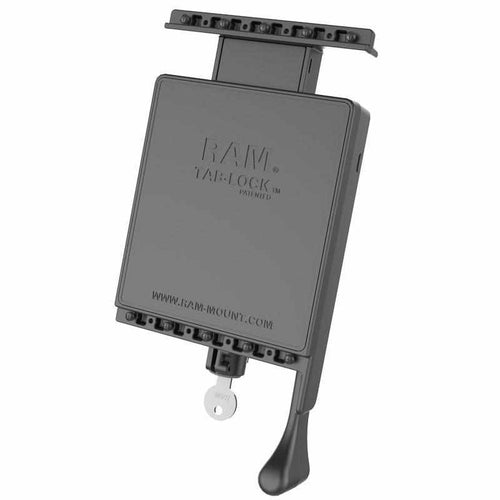

RAM Universal Tab-Lock Backplate (RAM-HOL-TABLBU) - Modest Mounts

RAM Universal Tab-Lock Backplate (RAM-HOL-TABLBU)

RAM Tab-Lock Holder for Panasonic FZ-G2 & FZ-A3 (RAM-HOL-TABL34U)

RAM Tab-Lock Holder for Panasonic FZ-G2 & FZ-A3 (RAM-HOL-TABL34U)

RAM Tab-Lock™ Cradle for iPad Mini 1-4 w Case (RAM-HOL-TABL12U) - Modest Mounts

RAM Tab-Lock™ Cradle for iPad Mini 1-4 w Case (RAM-HOL-TABL12U)

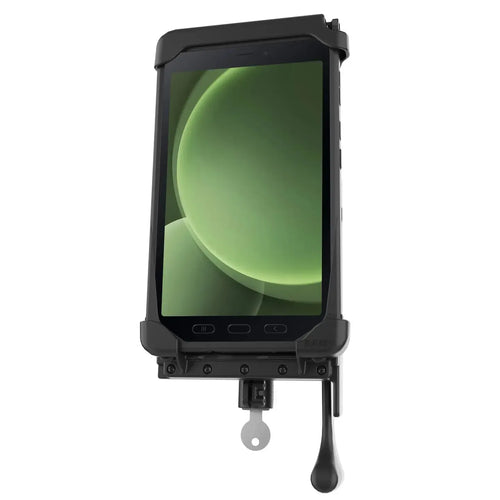

RAM Tab-Lock Holder for Samsung Tab Active5 & 3 (RAM-HOL-TABL-SAM29U)

RAM Tab-Lock Holder for Samsung Tab Active5 & 3 (RAM-HOL-TABL-SAM29U)

Related collections

Tab-Lock™ Tablet Holders

Tablet Mounts For Cars

Tab-Tite™ Tablet Holders

Transcript

This video provides a step-by-step guide on how to assemble the RAM® Tab-Lock™ tablet mount.

Key Assembly Steps:
• Verify Hardware: Ensure you have all the required screws and nuts before starting.
• Ball Adapter: Align and attach the ball adapter to the Tab-Lock™ body using the provided screws.
• Nut Placement: Place the smaller nuts into the designated pockets on the back of the device using a pen for guidance. Use a ruler to hold them in place while you secure them with M4 screws.
• End Cups: Attach the top and bottom end cups to the device body using the ten small screws provided.
• Top Slide Installation: Insert the larger nuts into the top slide, release the inner spine using the key lock, and install the top slide into the main body.
• Securing the Slide: Connect the #6 screws from behind to secure the slide, but do not fully tighten them yet.
• Calibration: Insert your tablet into the mount to determine the correct fitment, note the reference number on the back, remove the tablet, and tighten the #6 screws at that specific setting.
• Final Assembly: Install the front cover, secure it using the remaining #6 screws, and repeat the process to ensure the locking lever is accessible.
