RAM® Mounts Motorcycle Gas Tank Mount - Overview & Installation

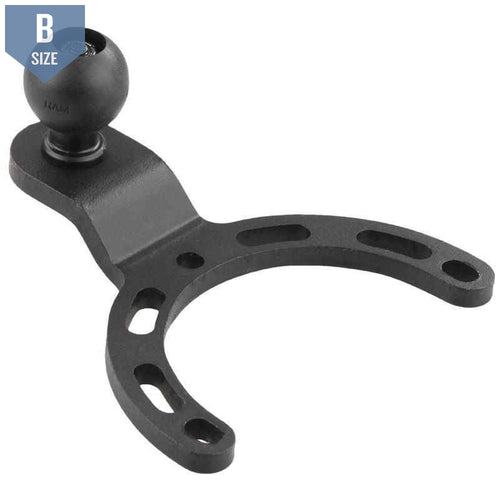

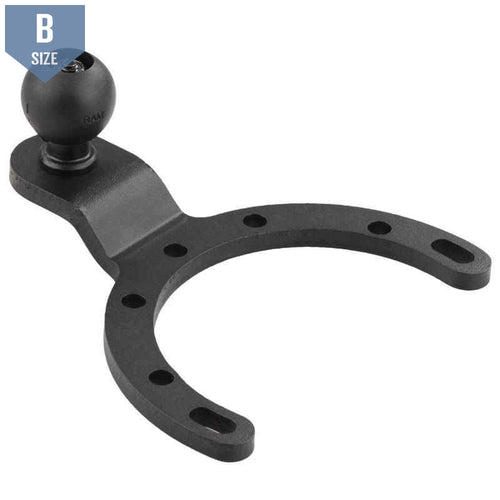

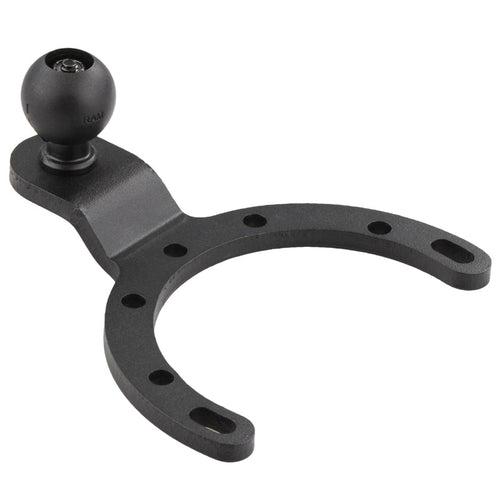

This video introduces the RAM® motorcycle gas tank flange mount and shows how it creates a low-profile B size mounting point near the tank on selected motorcycles.
What this video covers
This video introduces the RAM® motorcycle gas tank flange mount and shows how it can be installed to create a low-profile mounting point near the tank. The mount uses a 1 inch B size RAM® ball and marine-grade aluminium construction.
The installation section explains how the segmented mounting holes line up with different gas tank flange bolt patterns. It also shows the importance of choosing replacement screws that are longer than the original factory bolts, keeping track of which screw came from each hole, and tightening the base evenly by hand before final adjustment.
Once installed, the B size ball can be paired with a compatible RAM® arm and device holder for a phone, GPS, camera or similar device.
Use the related products and collections below to find compatible RAM® Mounts parts available from Modest Mounts in Australia.

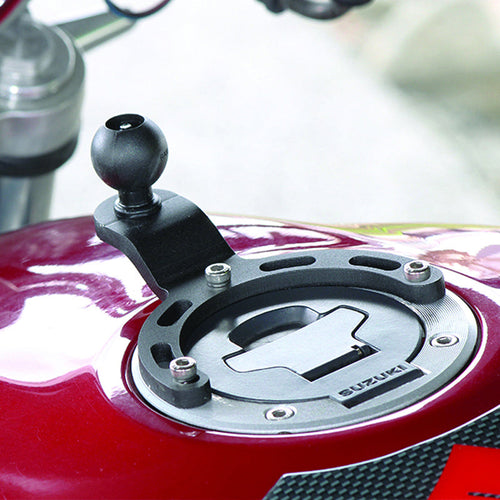

hi everybody I'm Jason with Ram mounts and today we're going to introduce you to the motorcycle gas tank flange mount it's made out of marine grade aluminum and utilizes our standard one-inch ball it has a series of segmented holes to accommodate a variety of gas tanks this is a secure low-profile mount for your cell phone or GPS and frees up space on your handlebars this mount comes in two different sizes depending on the application that you have today we'll be installing the one that fits the Suzuki sv650 as you can see here we've already reached the one-inch ball using the included hardware we will now line up the base with the flange of the gas tank and identify which bolts line up best with the holes of the base we will now remove these three bolts you can see here there are two different lengths of screws that came out of the flan to the gas tank utilizing the included hardware pack you would like to select a screw that is approximately 12 millimeters longer than the stock screw that came out of the flange as you can see here we've chosen the appropriate length of hardware and have attached the correct size of washer it is very important to remember what length of screw came out of which hole from the factory line up the base on the flange and insert one screw at a time and tighten by hand then snugging each bolt down after your base is installed you can now attach a double socket arm and the device in this case we're using a GoPro camera adjust to the position that you require and you're ready to ride
