RAM Fork Stem Mount w X-Grip Phone Cradle (RAM-B-176-A-UN7)

18 reviews
Size Guide

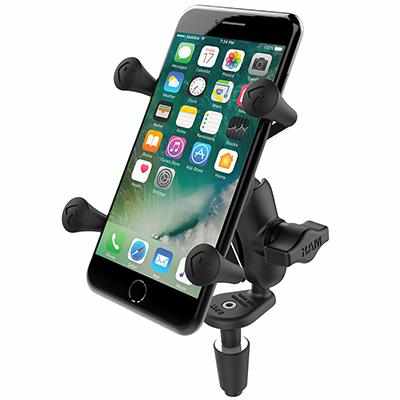

    The RAM-B-176-A-UN7 fork stem mount includes a fork stem base, short double socket arm and the universal X-Grip cradle for mobile phones (ie. iPhone 6, 7, 8, X; or Samsung S2-S8 and more).

    The Fork Stem Base is designed to fit into the cylindrical bore wall of fork stems and will work with stems that measure from 12 - 33mm (0.5” – 1.29”).

    The included X-Grip cradle has a smart and simple four leg design that delivers incredible holding power without hiding your phone behind things such as foam pads and plastic. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your cell phone.

    Compatible Devices

    • iPhone X, XS, 8, 7, 6, 5, 5S, 5C, 4S (and more)
    • Samsung Galaxy S2 S3 S4 S5 S6 S7 S8 with slim skin or shell
    • Samsung Xperia Z and Z2
    • HTC one M8
    • and more
    • View Full List of Compatible Devices
    • Cradle Dimensions:
      Minimum Width = 1.875" (Minimum Height = 4.25")
      Maximum Width = 3.25" (Minimum Height = 2.25")
      Depth = 0.875"
      It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
      View  Compatible Devices for the UN7 X-Grip cradle.
    • Purchase Includes: 1 x Rubber Tether (Optional)
    • Material: Powder Coated Marine Grade Aluminum, Marine Grade Stainless Steel Components & High Strength Composite
    • Ball Size: B Size 1" Rubber Ball
    • Weight: 0.6 lbs.

    un7 animation


    NOTE: It is STRONGLY suggested that you watch the instructional "How To" video BEFORE attempting to install this part. Attempting to install the product without the correct measurement information will render the product unusable.


    Compatible Motorcycles

    The fork stem is compatible with these motorcycles (and many more):

    • BMW S1000RR (2009-13)
    • BMW R1200ST (2005-2007)
    • Can-Am Spyder RT-S SE5 (All Years)
    • Ducati 1199 S Panigale (2011-13)
    • Honda CBR250R (2011-13)
    • Honda CBR1000RR Fireblade (2008-13)
    • Honda CBR1100XX (1996-07)
    • Honda CBR600F (1995-98)
    • Honda CBR600F4 (1999-00)
    • Honda CBR600F4i (2001-06)
    • Honda CBR600RR (2003-06)
    • Honda CBR900RR Fireblade (1996-03)
    • Honda CBR929 (2000-01)
    • Honda CBR954 (2002-03)
    • Honda ST1300 Pan European (2003-08)
    • Honda VFR750 (1994-97)
    • Honda VFR800 (1998-13)
    • Honda VFR800 Interceptor (1998-01)
    • Honda VFR800 Interceptor VTEC (2002-06)
    • Honda VFR1200F (2009-13)
    • Honda VTR1000F Superhawk (1997-05)
    • Kawasaki 1400GTR (2007-13)
    • Kawasaki 636 (2003-06)
    • Kawasaki 650R Ninja (2006-13)
    • Kawasaki ZX10R (2004-10)
    • Kawasaki ZX12R Ninja (2000-05)
    • Kawasaki ZX14R (2006-11)
    • Kawasaki ZX6R (1998-99)
    • Kawasaki ZX6R (2000-02)
    • Kawasaki ZX6R (2009-12)
    • Kawasaki ZX6R 636 Ninja (2003-06)
    • Kawasaki ZX6RR (2000-06)
    • Kawasaki ZX9R Ninja (1994-03)
    • Kawasaki ZZR1200 (2002-11)
    • Kawasaki ZZR1400 Ninja (2006-11)
    • Kawasaki ZZR600 (2005-07)
    • Suzuki GSXR1000 (all years)
    • Suzuki GSXR1100 (all years)
    • Suzuki GSXR600 (1996-10)
    • Suzuki GSXR750 (1996-10)
    • Suzuki Hayabusa GSX1300R (1999-13)
    • Suzuki SV650 (1999-02)
    • Suzuki TL1000 (all years)
    • Suzuki V-Strom DL1000 (2002-13)
    • Triumph Daytona (2006-13)
    • Triumph Daytona 675 (2006-13)
    • Triumph Street Triple R (2007-13)
    • Yamaha YZF-R1 (1996-02)
    • Yamaha YZF-R6 (2003-13)
    • Yamaha YZF-R6S (2006-09)

    If you do not see your bike listed above, measure your stem. If yours is between 12 - 33mm (0.5” – 1.29”) then it will fit.

    Note: Certain motorcycles require adding electrical tape to the area of the plug that is the largest in diameter until it fits snugly in the stem.
