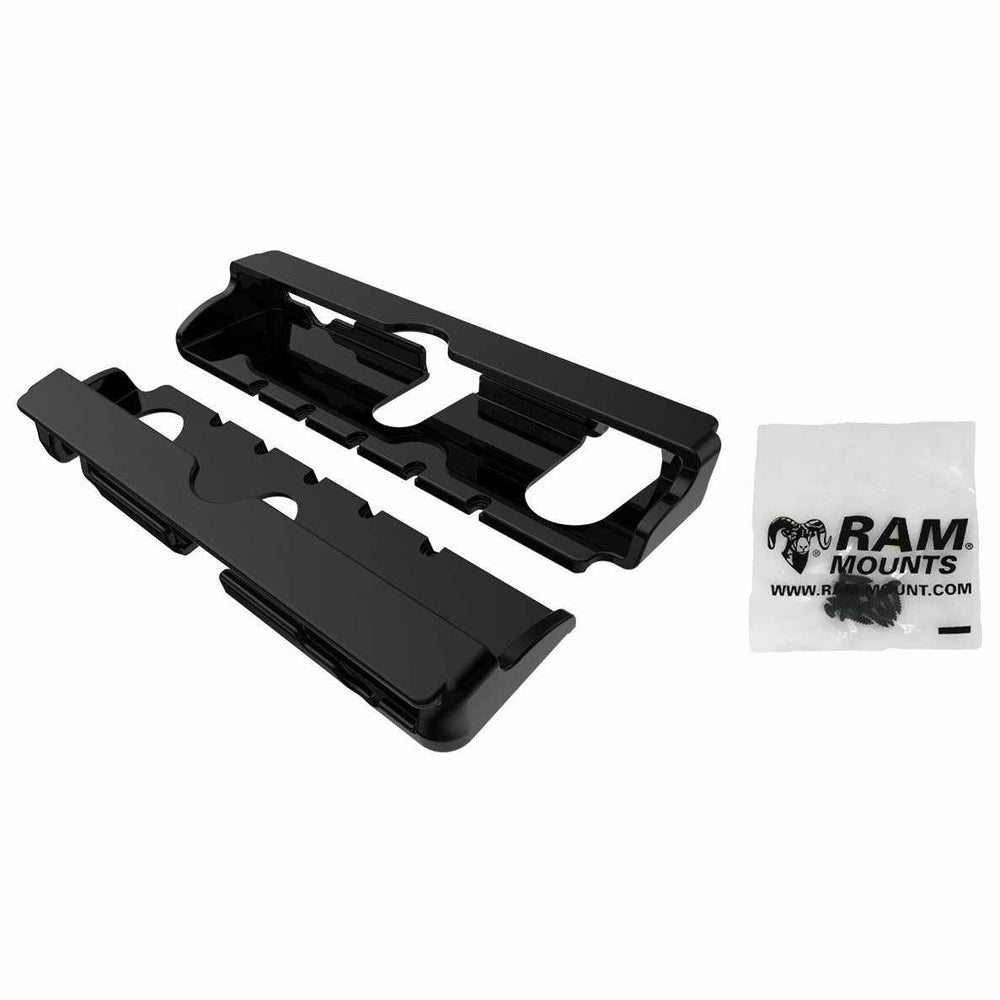

RAM Tab-Tite End Cups for 9" Tablets with Cases (RAM-HOL-TAB20-CUPSU)

Cup ends only: 1 set (2 cups) supplied.

Use this RAM-HOL-TAB20-CUPSU set to replace or change the cups on an existing compatible RAM Tab-Tite or Tab-Lock holder. Check your tablet, case and assembled-holder fit below before ordering.

Compatible backplate required: Reuse your compatible RAM-HOL-ACU Tab-Tite backplate or RAM-HOL-TABLBU Tab-Lock backplate. You need one backplate, not both; it is not included and is sold separately if needed.

Need cups and a backplate? Choose a full holder instead of buying both parts separately. See “Need a full holder?” below.

Included in this set

• 1 set of RAM-HOL-TAB20-CUPSU cup ends: 2 cups.
• Hardware to attach the cups to a compatible backplate, listed below.

Not included: Backplate, ball adapter, arm, mounting base, tablet or case.

Compatibility

These cup ends require one compatible RAM-HOL-ACU Tab-Tite backplate or RAM-HOL-TABLBU Tab-Lock backplate. An existing compatible backplate can be reused; a backplate is not included and is sold separately if needed.

For compatible 9–10.5-inch tablets with heavy-duty cases.

Measure your tablet with its case fitted, if you use one. Check the width, thickness, complete holder’s height range and access to buttons and ports. Screen size alone does not confirm fit.

Tablet fit

These are tablet-fit limits, not the physical dimensions of the loose cups. Height depends on the complete holder and backplate used.

Tablet fit when assembled as RAM-HOL-TAB20U:
Height Range: 9.5" - 12.125"
Width Range: 6.55" - 7.43"
Depth Range: .3" - .875"

Tablet fit when assembled as RAM-HOL-TABL20U:
Height Range: 9.25" - 12.125"
Width Range: 6.55" - 7.43"
Depth Range: .3" - .875"

Compatibility examples

Check the exact model, year and case against the fit requirements above. Examples do not guarantee fit with every case or accessory.

• Apple iPad (5th Generation) with Case
• Apple iPad (6th Generation) with Case
• Apple iPad (7th Generation) with Case
• Apple iPad (8th Generation) with Case
• Apple iPad 9.7 (2017) with Case
• Apple iPad 9.7 (2018) with Case
• Apple iPad Air with Case
• Apple iPad Air 2 with Case
• Apple iPad Pro 10.5 (2nd Generation) with Case
• ASUS ZenPad 10 with Case
• ASUS ZenPad 3S 10 with Case
• ASUS ZenPad Z10 with Case
• Huawei MediaPad M2 10.0 with Case
• Lenovo Tab 2 A10-70 with Case
• Lenovo Tab 4 10 with Case
• Lenovo Tab 4 10 Plus with Case
• Lenovo Tab3 10 Business with Case
• Lenovo Yoga Tab 3 10 with Case
• LG G Pad 10.1 with Case
• LG G Pad II 10.1 with Case
• LG G Pad X 10.1 with Case
• LG G Pad X II 10.1 with Case
• Samsung Galaxy Tab 10.1 with Case
• Samsung Galaxy Tab 3 10.1 with Case
• Samsung Galaxy Tab 8.9 with Case
• Samsung Galaxy Tab A 9.7 with Case
• Samsung Galaxy Tab A 10.5 with Case
• Samsung Galaxy Tab E 9.6 with Case
• Samsung Galaxy Tab Pro 10.1 with Case
• Samsung Galaxy Tab S2 9.7 with Case
• Samsung Galaxy Tab S4 10.5 with Case
• Sony Xperia Tablet Z with Case

Specs

Included hardware

• (10) #4 x 3/8" Sheet Metal Screws
• (4) #8-32 x 5/8" Machine Screws
• (4) #8-32 x 1/2" Machine Screws
• (4) #8-32 Nyloc Nuts

Material: High strength composite.

Packaging: Poly bag.

Need a full holder?

If you need both cup ends and a backplate, choose a full holder rather than buying them separately.

Choose RAM-HOL-TAB20U Tab-Tite holder or RAM-HOL-TABL20U Tab-Lock holder.

A complete holder includes the cups and backplate. Ball adapters, arms and mounting bases are separate components.
