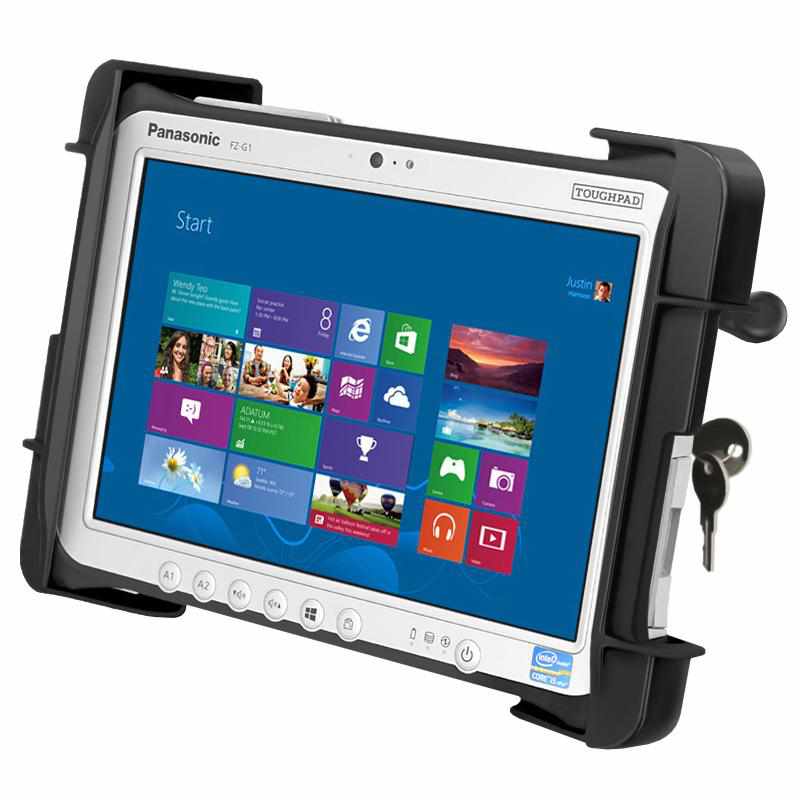

RAM-HOL-TABL19U
The RAM-HOL-TABL19U features a spring-loaded backplate, specially designed support cups and a locking mechanism that provides security from theft and tampering. This spring-loaded design makes it easy to load and unload your tablet (See 'Compatibility' tab below), while keeping it secure on the go.
Quickly lock the cradle, keeping your iPad or other tablet secure and safe from theft.
CRADLE DIMENSIONS
Height Range: 10.75" - 13.375"
Width Range: 6.5" - 7.75"
Depth Range: 0.13" - 0.93"
HARDWARE INCLUDED
(2) #8 x 5/8" Sheet Metal Screws
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) Keys
HOLDER DIMENSIONS
Height Range: 10.75" - 13.375"
Width Range: 6.5" - 7.75"
Depth Range: 0.13" - 0.93"
HOLE PATTERN: 4-Hole AMPS: 1.181" x 1.496"
MATERIALS: High strength composite
PACKAGING TYPE: Poly Bag
WEIGHT: 1.36 lbs.
Note: The "U" in the part number reflects product packaged in poly bag.
The backplate of the cradle is interchangeable with different support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the backplate for support of your new tablet.
RAM holders and cases can be secured in any application, with a range of RAM mounting ball plates and socket arms, in different sizes and lengths. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.
Examples of compatible devices:
or any device that fits within the dimensions below:
HOLDER DIMENSIONS
Height Range: 10.75" - 13.375"
Width Range: 6.5" - 7.75"
Depth Range: 0.13" - 0.93"
Collections: All, Best Selling Products, Newest Products, Tab-Lock™, Tablet Mounts
Here at Modest Mounts we strive to process all orders received before 12:00pm AEST on the same business day we receive them.
We currently offer the following domestic freight options*:
Our choice of courier service depends on the particular route/destination of your delivery, however the majority of all orders are sent with Australia Post, Startrack Premium, StarTrack Express & Sendle.
Note: Postage fee may be a little higher for some of the heavy or large items.
Read more on our Shipping & Delivery
Within 30 days of your purchase, we will happily accept returned items for refund or a replacement providing they are in re-saleable condition. To initiate a return, send us an email at info@modestmounts.com.au - DO NOT send items back to our office address.
Full information available here.
Yes. All RAM Mounts come with a lifetime warranty.
Please visit http://www.rammount.com/warranty for all information.
Sign up to get the latest on sales, new releases and more …
Ball Sizes | Short Arm | Medium Arm | Long Arm | |
---|---|---|---|---|
A Size | Overall Length | N/A | 2.11" / 53.6 mm | 3.57" / 90.7 mm |
Socket-to-Socket | N/A | 1.67" / 42.4 mm | 3.12" / 79.3 mm | |
B Size |
Overall Length | 2.42" / 61.5 mm | 3.73" / 94.7 mm | 6.00" / 152.4 mm |
Socket-to-Socket | 1.75" / 44.5 mm | 3.00" / 76.2 mm | 5.31" / 134.9 mm | |
C Size | Overall Length | 3.56" / 90.4 mm | 5.69" / 144.5 mm | 9.13" / 231.9 mm |
Socket-to-Socket | 2.50" / 63.5 mm | 4.66" / 118.4 mm | 8.00" / 203.2 mm | |
D Size | Overall Length | 5.10" / 129.5 mm | 8.44" / 214.4 mm | 12.98" / 329.7 mm |
Socket-to-Socket | 3.60" / 91.4 mm | 6.88" / 174.8 mm | 11.41" / 289.8 mm | |
E Size | Overall Length | 7.31" / 185.7 mm | 12.63" / 320.8 mm | N/A |
Socket-to-Socket | 4.98" / 126.49 mm | 9.88" / 251 mm | N/A |
