RAM-PA8218

RAM 18" Long 1/2" NPT Male Threaded Pipe (RAM-PA8218)

Name: RAM 18" Long 1/2" NPT Male Threaded Pipe (RAM-PA8218)
Brand: RAM Mounts
SKU: RAM-PA8218
Price: 69.0 AUD
Availability: InStock

.price-ui--loading { display: block !important; opacity: 1 !important; }

$69.00$101.00You Save 31% ($32.00)

Size Guide

Included:

1 x RAM 18" Long 1/2" NPT Male Threaded Pipe (RAM-PA8218)

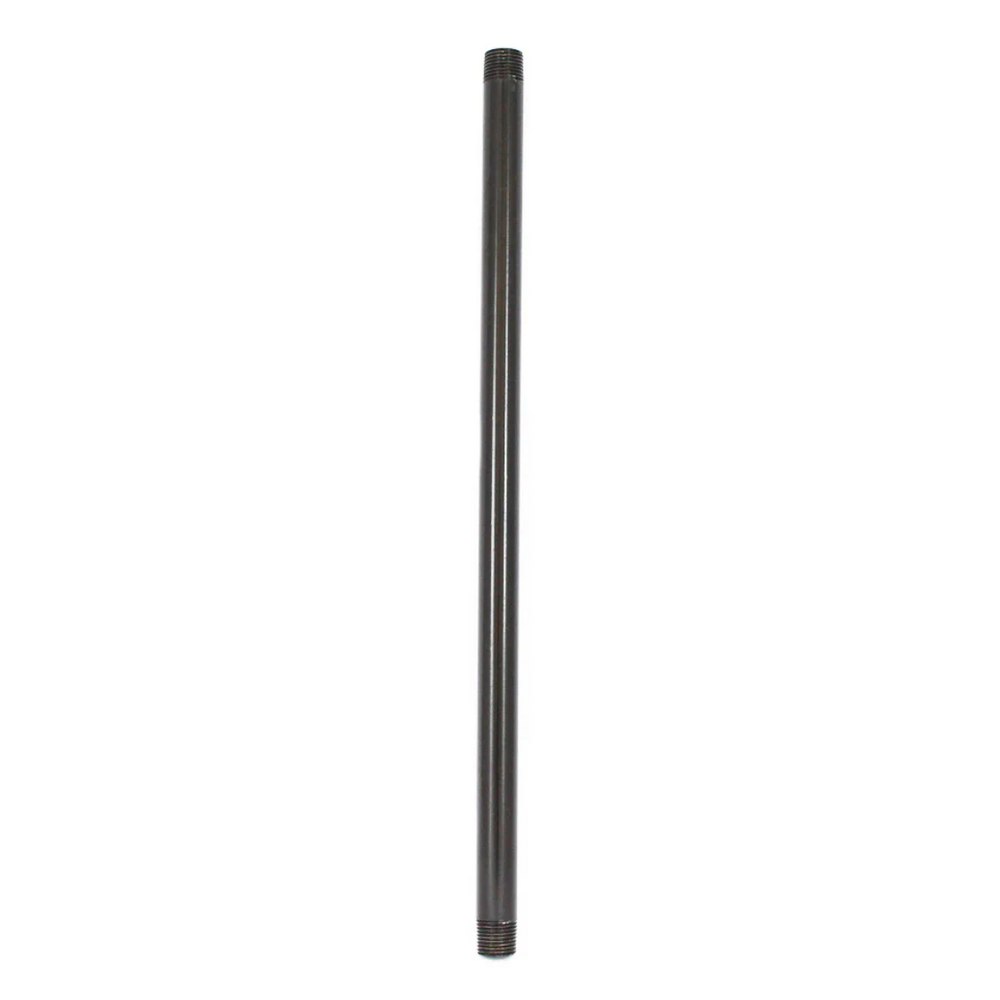

The RAM-PA8218 is a 18" long rigid aluminium pipe that has a 1/2" NPT male thread at both ends of the pipe.

PRODUCT DIMENSIONS:
Overall Length: 18"

THREAD PITCH:
1/2" NPT

MATERIALS:
Marine-grade aluminum

WEIGHT:
0.71 lb

NPT Thread and Pipe Sizing:
NPT (National Pipe Thread) is a standard used in joining pipes and fittings that have a tapered thread. As a general rule, the NPT inch size is the inside diameter of the threaded pipe and is known as the NPS (Nominal Pipe Size). The outer diameter (OD) of the pipe is shown in the table below:

NPT Size (NPS)	Pipe Outer Dia. (OD)	Threads per inch
1/4"	0.540"	18
1/2"	0.840"	14
1"	1.315"	11.5

NPT Thread and Pipe Sizing:
NPT (National Pipe Thread) is a standard used in joining pipes and fittings that have a tapered thread. As a general rule, the NPT inch size is the inside diameter of the threaded pipe and is known as the NPS (Nominal Pipe Size). The outer diameter (OD) of the pipe is shown in the table below:

NPT Size (NPS)	Pipe Outer Dia. (OD)	Threads per inch
1/4"	0.540"	18
1/2"	0.840"	14
1"	1.315"	11.5

Collections: Best Selling RAM® Mounts, Newest RAM® Mounts, POD & Vehicle Mounts, RAM® Ball Bases & Adapters, Shop All RAM® Mounts, Spare Parts & Replacement Components

Type: Mount Components

Category: Car, POD, Spare Parts, Vehicle Floor

Ball Sizes		Short Arm	Medium Arm	Long Arm
A Size	Overall Length	N/A	2.11" / 53.6 mm	3.57" / 90.7 mm
A Size	Socket-to-Socket	N/A	1.67" / 42.4 mm	3.12" / 79.3 mm
B Size	Overall Length	2.42" / 61.5 mm	3.73" / 94.7 mm	6.00" / 152.4 mm
B Size	Socket-to-Socket	1.75" / 44.5 mm	3.00" / 76.2 mm	5.31" / 134.9 mm
C Size	Overall Length	3.56" / 90.4 mm	5.69" / 144.5 mm	9.13" / 231.9 mm
C Size	Socket-to-Socket	2.50" / 63.5 mm	4.66" / 118.4 mm	8.00" / 203.2 mm
D Size	Overall Length	5.10" / 129.5 mm	8.44" / 214.4 mm	12.98" / 329.7 mm
D Size	Socket-to-Socket	3.60" / 91.4 mm	6.88" / 174.8 mm	11.41" / 289.8 mm
E Size	Overall Length	7.31" / 185.7 mm	12.63" / 320.8 mm	N/A
E Size	Socket-to-Socket	4.98" / 126.49 mm	9.88" / 251 mm	N/A
