RAM-202U-225

RAM 1.5" Ball with 2" x 1.5" Base (RAM-202U-225)

Name: RAM 1.5" Ball with 2" x 1.5" Base (RAM-202U-225)
Brand: Modest Mounts
SKU: RAM-202U-225
Price: 35.0 AUD
Availability: InStock

.price-ui--loading { display: block !important; opacity: 1 !important; }

$35.00$38.00

Size Guide

Included:

1 x RAM 1.5" Ball with 2" x 1.5" Base (RAM-202U-225)

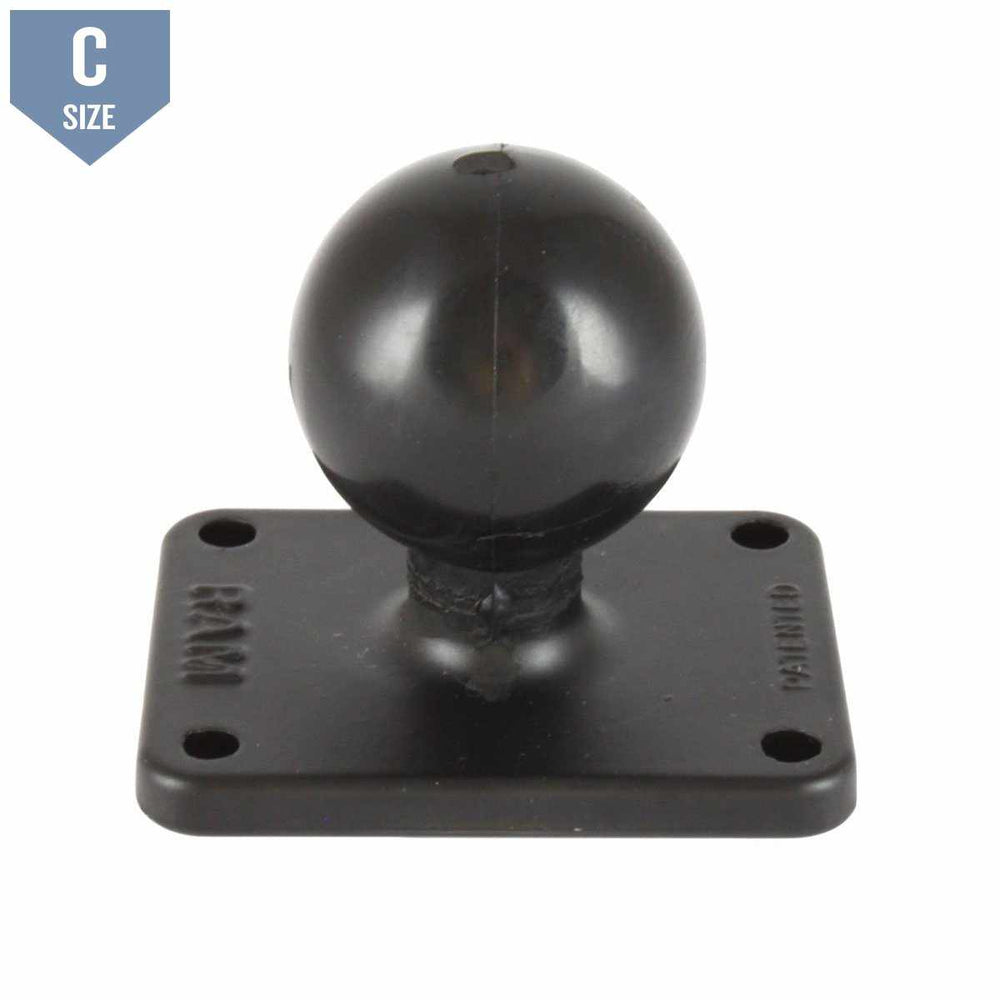

The RAM-202U-225 is a 1.5" diameter rubber ball connected to a rectangular plate with a 4-hole pattern of 2" x 1.5" centre to centre.

Specs

Material: Powder Coated Marine Grade Aluminum
Ball Size: C Size 1.5" Rubber Ball
Plate Dimensions: 2" x 2.5"
Note: The "U" in the part number reflects product packaged in poly bag.
Weight: 0.24 lbs.

Collections: All, Best Selling Products, C Size Components 1.5", Newest Products, Other Mounts

Type: RAM Component

Category: Base, C Size

Ball Sizes		Short Arm	Medium Arm	Long Arm
A Size	Overall Length	N/A	2.11" / 53.6 mm	3.57" / 90.7 mm
A Size	Socket-to-Socket	N/A	1.67" / 42.4 mm	3.12" / 79.3 mm
B Size	Overall Length	2.42" / 61.5 mm	3.73" / 94.7 mm	6.00" / 152.4 mm
B Size	Socket-to-Socket	1.75" / 44.5 mm	3.00" / 76.2 mm	5.31" / 134.9 mm
C Size	Overall Length	3.56" / 90.4 mm	5.69" / 144.5 mm	9.13" / 231.9 mm
C Size	Socket-to-Socket	2.50" / 63.5 mm	4.66" / 118.4 mm	8.00" / 203.2 mm
D Size	Overall Length	5.10" / 129.5 mm	8.44" / 214.4 mm	12.98" / 329.7 mm
D Size	Socket-to-Socket	3.60" / 91.4 mm	6.88" / 174.8 mm	11.41" / 289.8 mm
E Size	Overall Length	7.31" / 185.7 mm	12.63" / 320.8 mm	N/A
E Size	Socket-to-Socket	4.98" / 126.49 mm	9.88" / 251 mm	N/A
