RAM Tab-Tite End Cups for Samsung Tab Active3 and Tab Active5 (RAM-HOL-SAM29-CUPSU)

Cup ends only: 1 set (2 cups) supplied.

Use this RAM-HOL-SAM29-CUPSU set to replace or change the cups on an existing compatible RAM Tab-Tite or Tab-Lock holder. Check your tablet, case and assembled-holder fit below before ordering.

Compatible backplate required: Reuse your compatible RAM-HOL-ACU Tab-Tite backplate or RAM-HOL-TABLBU Tab-Lock backplate. You need one backplate, not both; it is not included and is sold separately if needed.

Need cups and a backplate? Choose a full holder instead of buying both parts separately. See “Need a full holder?” below.

Image clarification: The grey backplate shown in the product image is for illustration only and is not included.

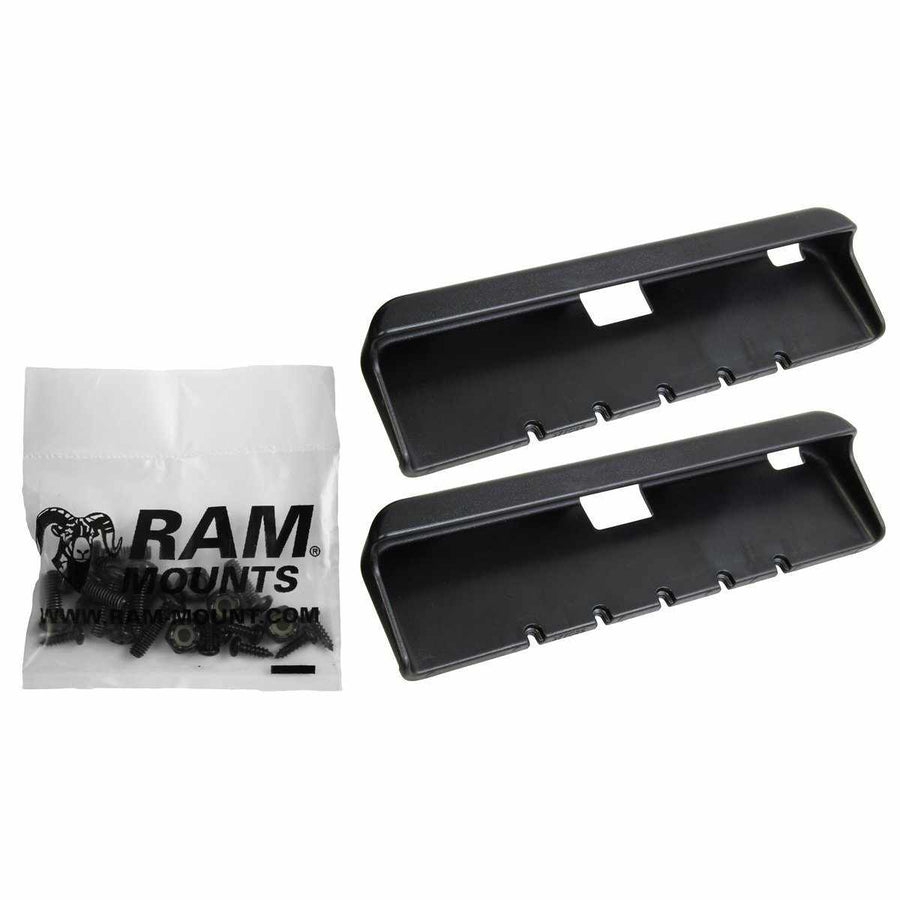

Included in this set

• 1 set of RAM-HOL-SAM29-CUPSU cup ends: 1 top cup and 1 bottom cup.
• Hardware to attach the cups to a compatible backplate, listed below.

Not included: Backplate, ball adapter, arm, mounting base, tablet, case or charging cable.

Compatibility

These cup ends require one compatible RAM-HOL-ACU Tab-Tite backplate or RAM-HOL-TABLBU Tab-Lock backplate. An existing compatible backplate can be reused; a backplate is not included and is sold separately if needed.

These cups are used in RAM’s holders for Samsung Galaxy Tab Active2, Active3 and Active5 with the OEM case or RAM Skin. Check your exact tablet and case combination before ordering. These are non-powered support cups, not a charging dock.

Measure your tablet with its case fitted, if you use one. Check the width, thickness, complete holder’s height range and access to buttons and ports. Screen size alone does not confirm fit.

Tablet fit

These are tablet-fit limits, not the physical dimensions of the loose cups. Height depends on the complete holder and backplate used.

Tablet fit when assembled as RAM-HOL-TAB-SAM29U:
Height Range: 8.5" - 10.375"
Max Width: 5.23"
Max Depth: 0.6"

The dimensions above apply to RAM-HOL-TAB-SAM29U. For the Tab-Lock version, check its linked product page and your exact device/case configuration.

Compatibility examples

Check the exact model, year and case against the fit requirements above. Examples do not guarantee fit with every case or accessory.

Samsung Galaxy Tab Active5, Active3 and Active2 with the OEM case or RAM Skin. A compatible backplate is required.

Specs

Included hardware

• (5) #4 x 3/8" Sheet Metal Screws
• (5) #4 x 1/2" Sheet Metal Screws
• (4) #8-32 x 5/8" Machine Screws
• (4) #8-32 x 1/2" Machine Screws
• (4) #8-32 Nyloc Nuts

Material: High strength composite.

Backed by RAM’s lifetime warranty.

Packaging: Poly bag.

Instructions and guides

• RAM^® Tab-Tite^™ Assembly Guide

Need a full holder?

If you need both cup ends and a backplate, choose a full holder rather than buying them separately.

Choose RAM-HOL-TAB-SAM29U Tab-Tite holder or RAM-HOL-TABL-SAM29U Tab-Lock holder.

A complete holder includes the cups and backplate. Ball adapters, arms and mounting bases are separate components.
