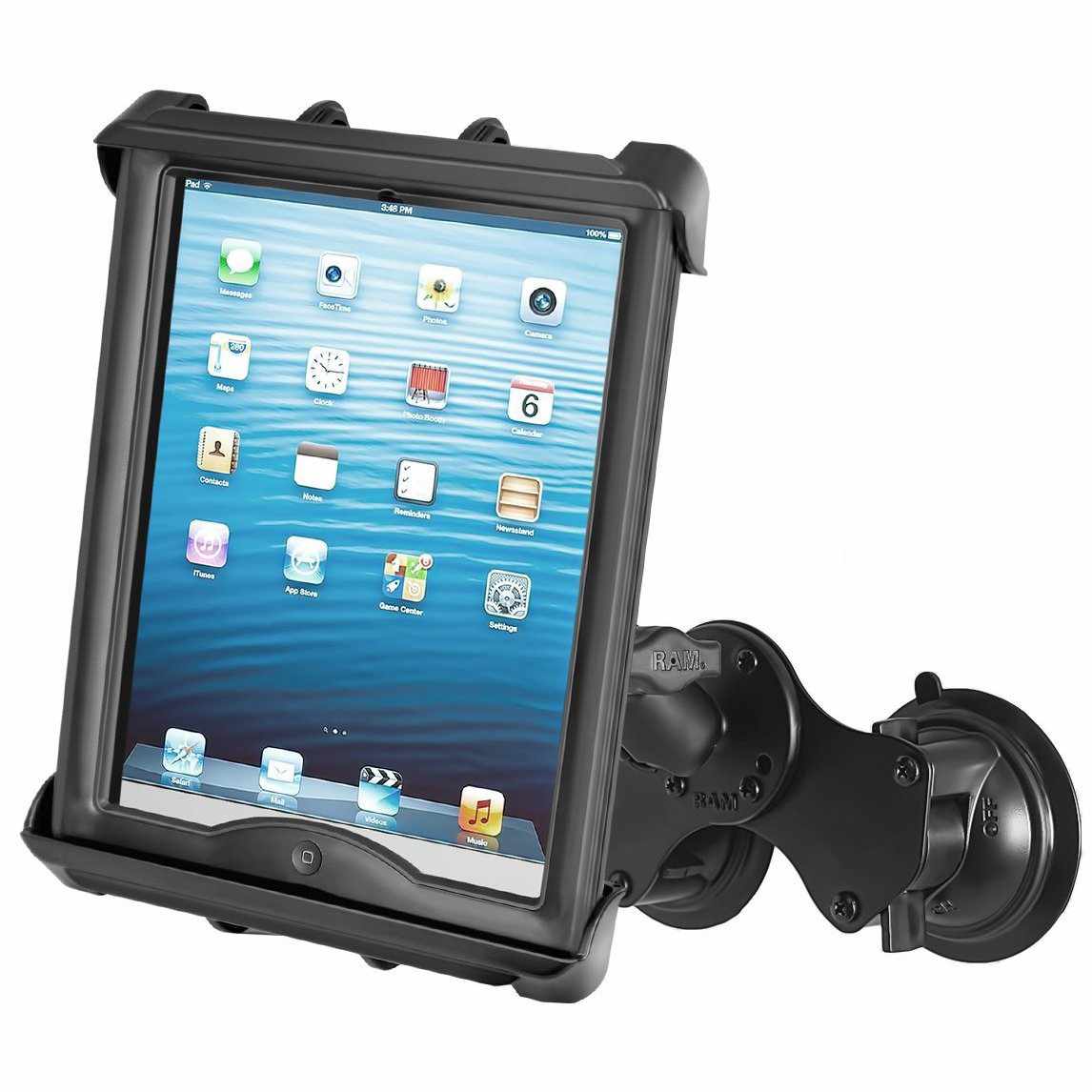

RAM Double Suction w Cradle for 10" Tablets (RAM-B-189-TAB8U)

Included:

• 1 x RAM Tab-Tite™ Cradle for 10" Tablets with Case (RAM-HOL-TAB8U)
• 1 x RAM Standard Double Socket Clamp Arm B Size (RAM-B-201U)
• 2 x RAM Round Base with 1" B Ball (RAM-B-202U)
• 1 x RAM Double Suction Cup Base (RAM-B-189BU)

The RAM-B-189-TAB8U consists of a double 3.3" twist lock suction cup base, double socket arm, round base adapter, and a Tab-Tite™ universal clamping cradle for 10" tablets in heavy duty cases (see compatibility below). The double suction base allows for an extra strong hold on glass and non-porous plastic surfaces.

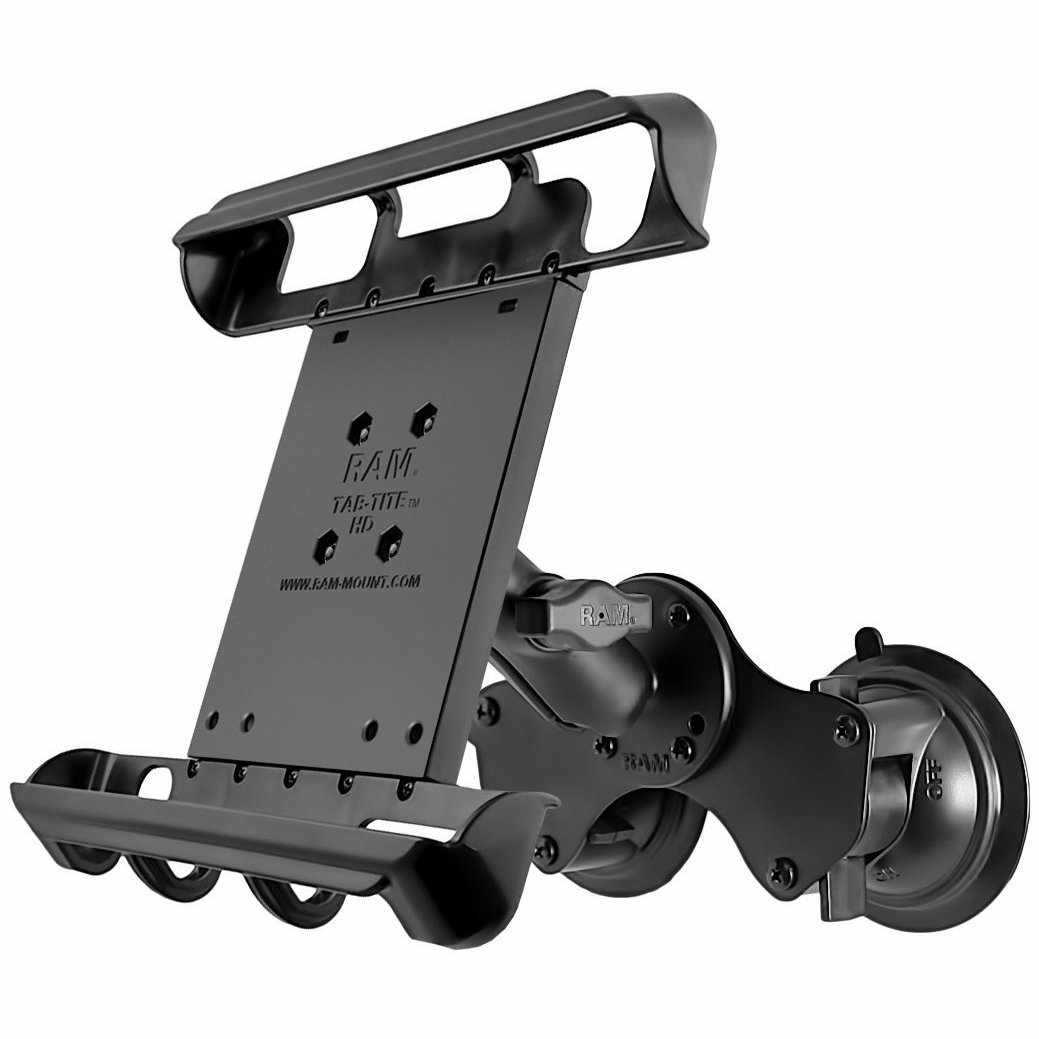

The included Tab-Tite™ cradle includes a spring loaded back plate and custom support cups for 10" screen tablets WITH heavy duty cases. The spring loaded design makes it easy to load and unload your tablet, while keeping it secure on the go. Interchangeable cup ends are designed to optimize the utility of your tablet, providing access to its audio inputs, USB, power, and other ports.

Specifications

• Cradle Dimensions:
  Height: 9" to 11.5” (229mm to 292mm)
  Width: 6.38" to 8.31” (162mm to 211mm)
  Depth: 0.13" to 1.12” (3.3mm to 28.4mm)


• Support cups contain open slots to accommodate for tablets of various sizes
• Back plate can support various size support cups
• Spring loaded tension provides secure support for your tablet
• Spring loaded cradle allows for quick release of your tablet
• High strength materials maximize longevity of cradle
• Full access to all ports
• Lifetime warranty
• Material: High Strength Composite & Powder Coated Marine Grade Aluminium
• Ball Size: 1" Rubber Ball "B" Size

Note: The "U" in the part number reflects product packaged in poly bag.

(RAM-B-189-TAB8U)

Compatibility

The Tab-Tite™ cradle is compatible with the following tablets:

• Apple iPad Pro 9.7 (1st Generation) with Case
• 10" Screen Tablets with OtterBox Defender cases
• 10" Screen Tablets with Gumdrop Drop Tech cases
• 10" Screen Tablets with Griffin Technology cases
• 10" Screen Tablets with Belkin cases
• 10" Screen Tablets with heavy duty cases
• Any tablets that will fit the dimensions listed below:

• Height: 9" to 11.5"
  Width: 6.38" to 8.31"
  Depth: 0.13" to 1.12"
