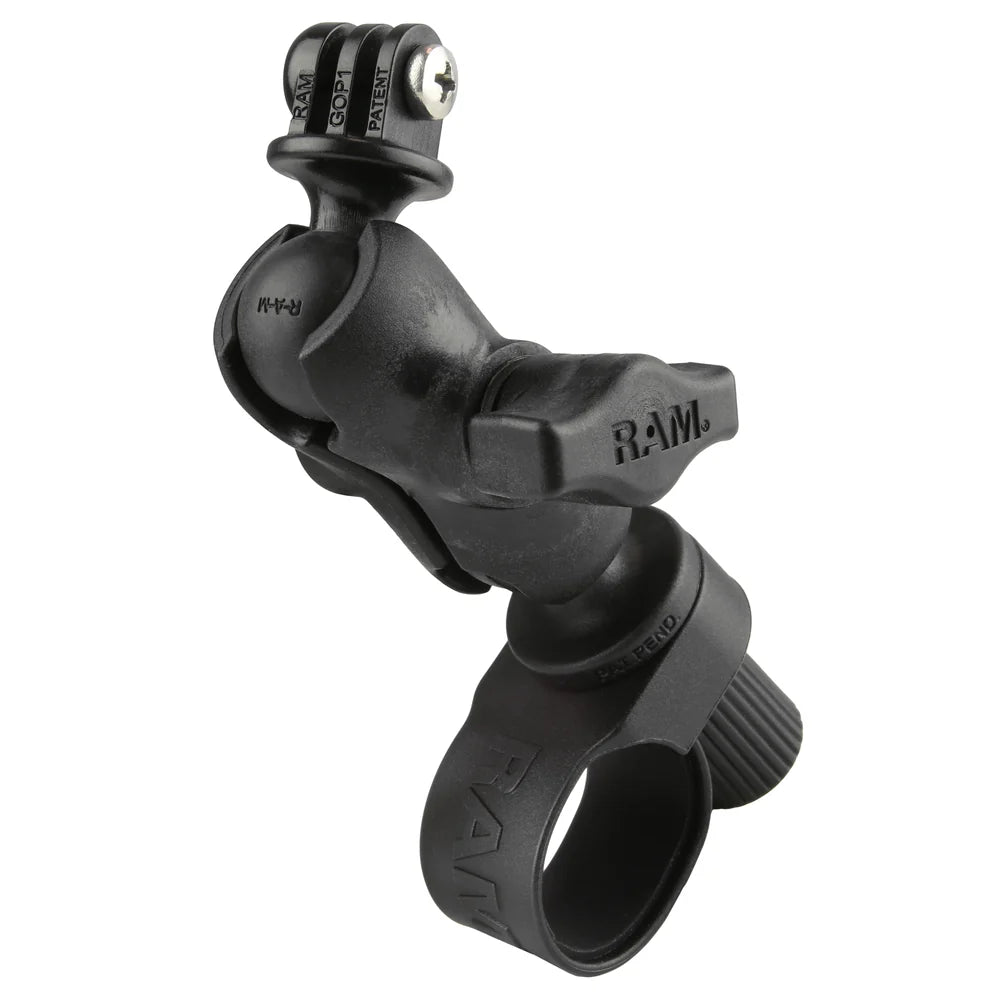

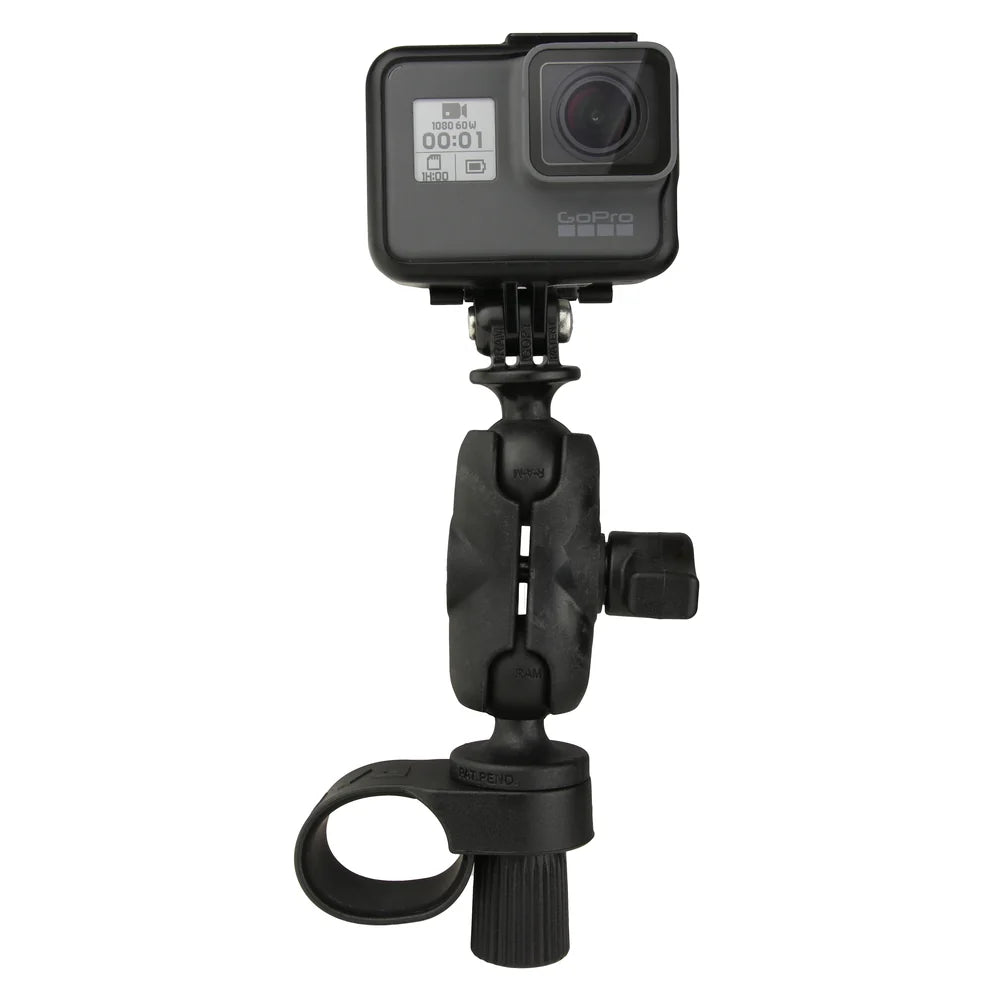

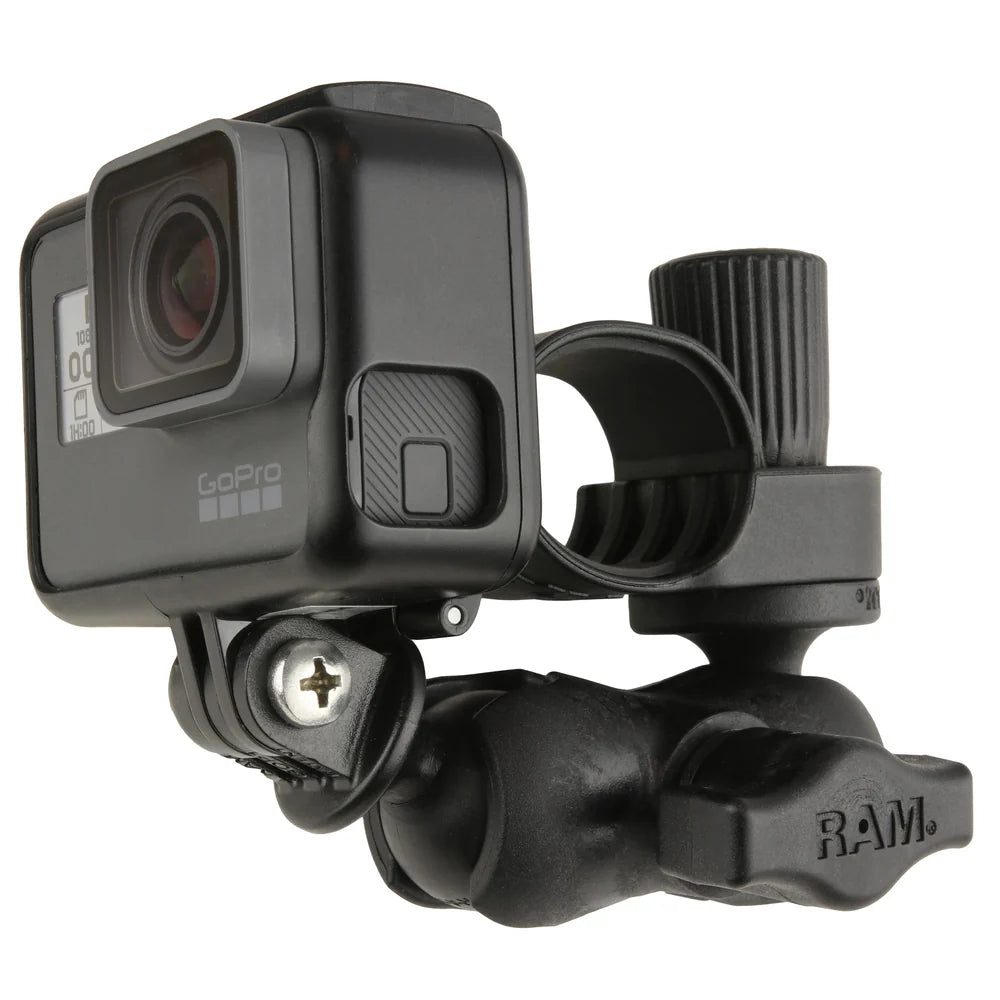

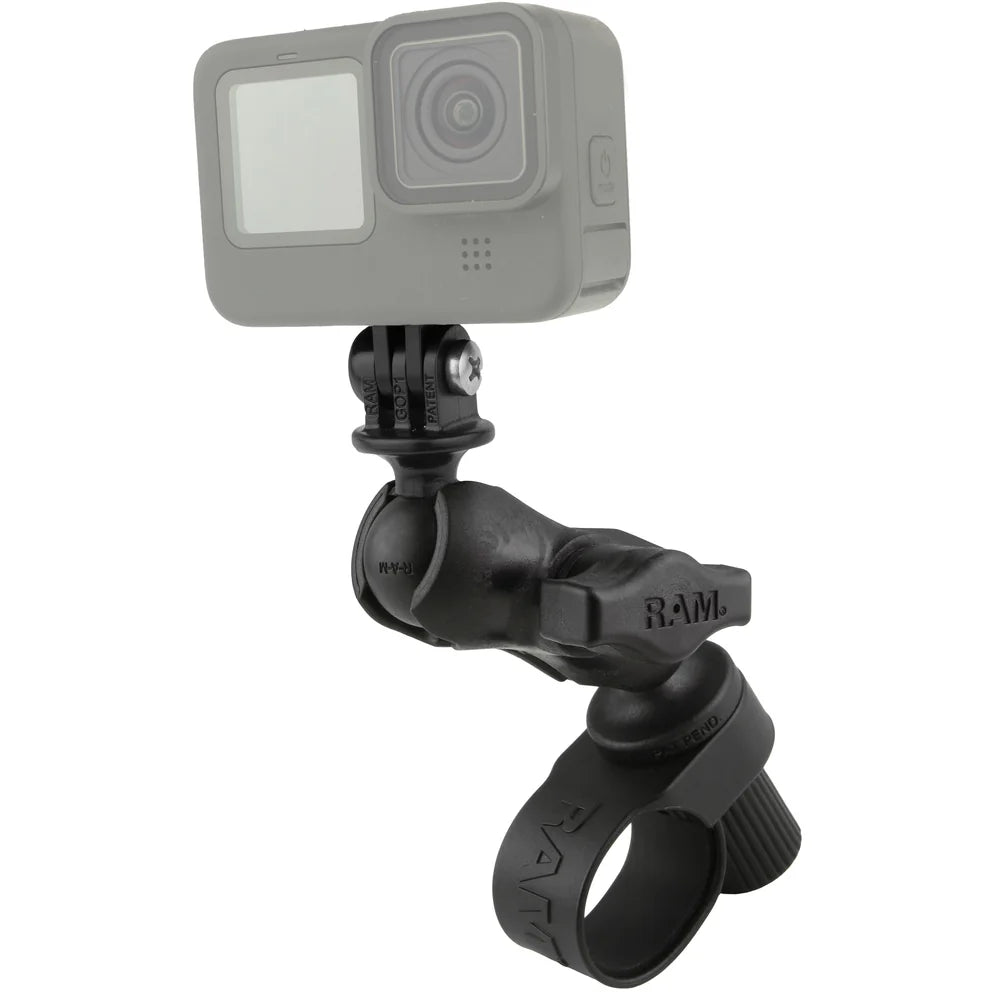

RAM Tough-Strap GoPro Handlebar Mount (RAP-B-460-A-GOP1U)

Included:

• 1 x RAM Tough-Strap Handlebar Ball Base (RAP-B-460U)
• 1 x RAM Short Composite Double Socket Arm (RAP-B-201U-A)
• 1 x RAM Action Camera Ball Adapter (RAP-B-202U-GOP1)
• Long and short straps, long and short rubber strips, #10-24 x 2.5 inch hex bolt and tightening knob

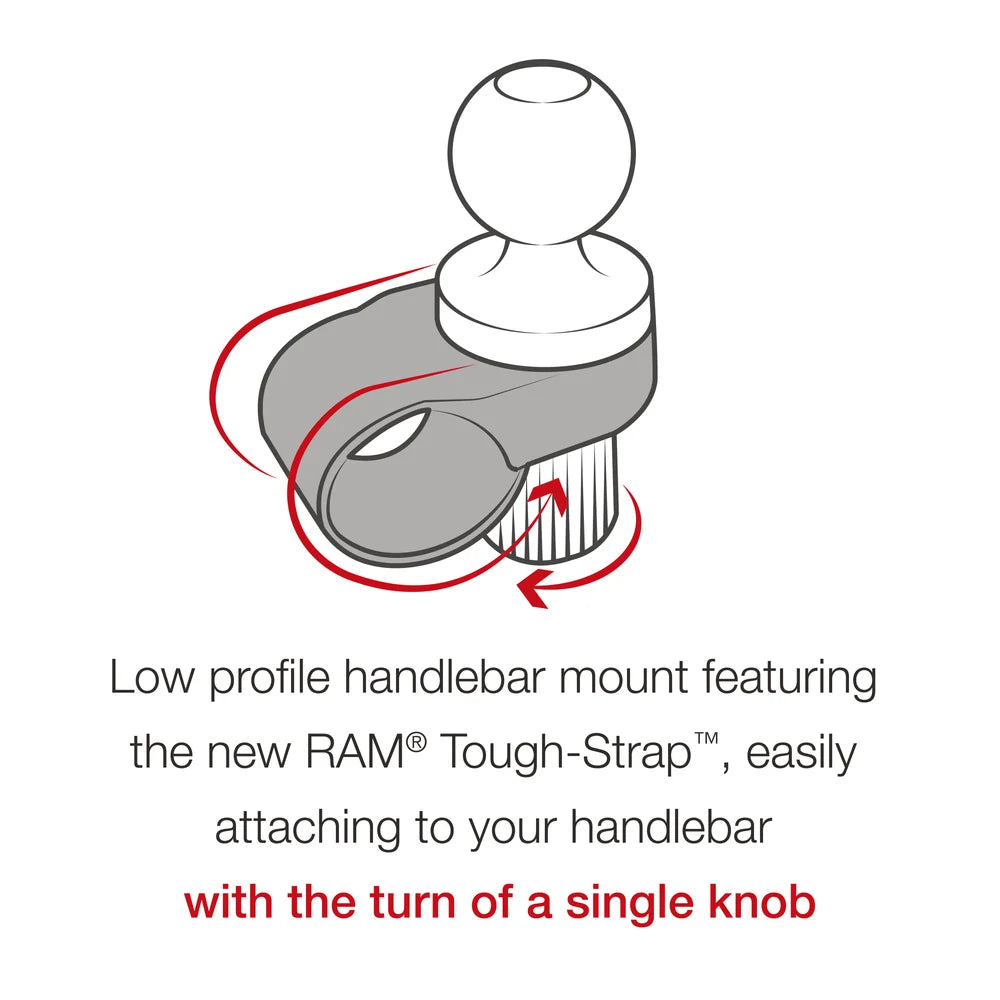

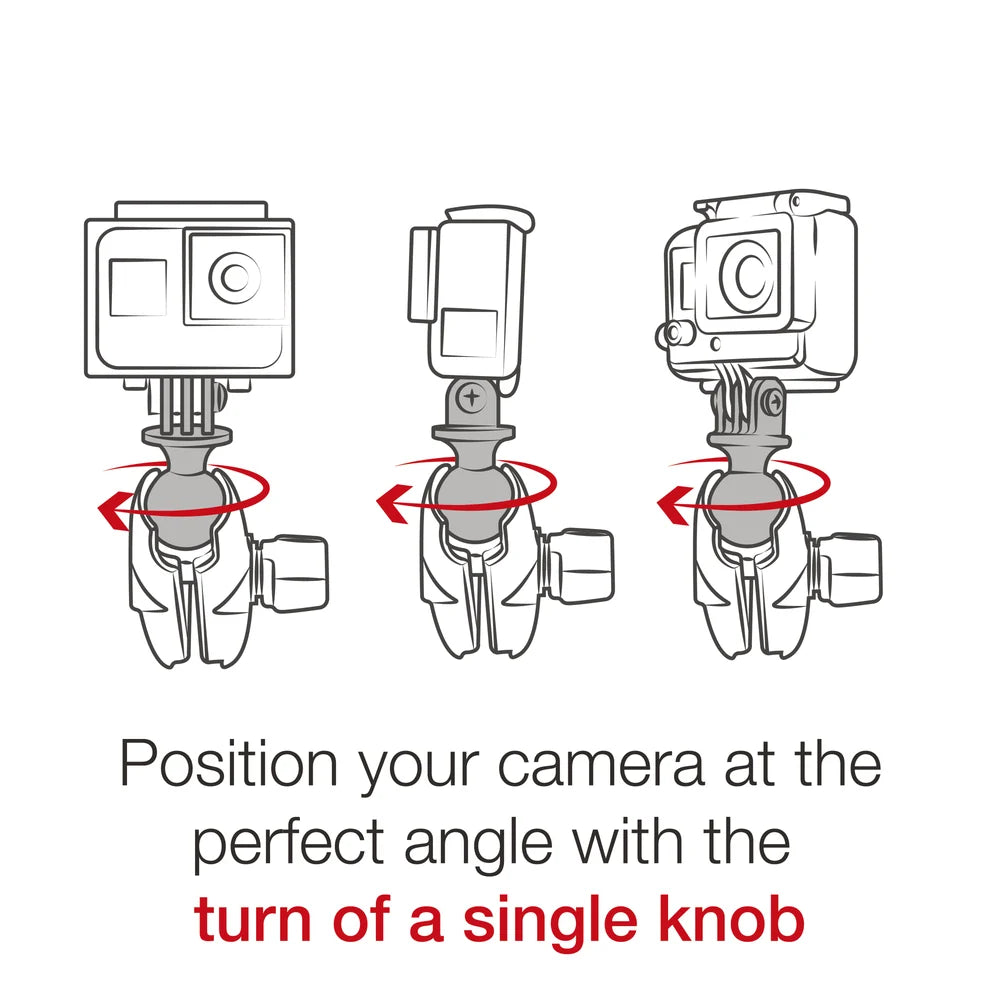

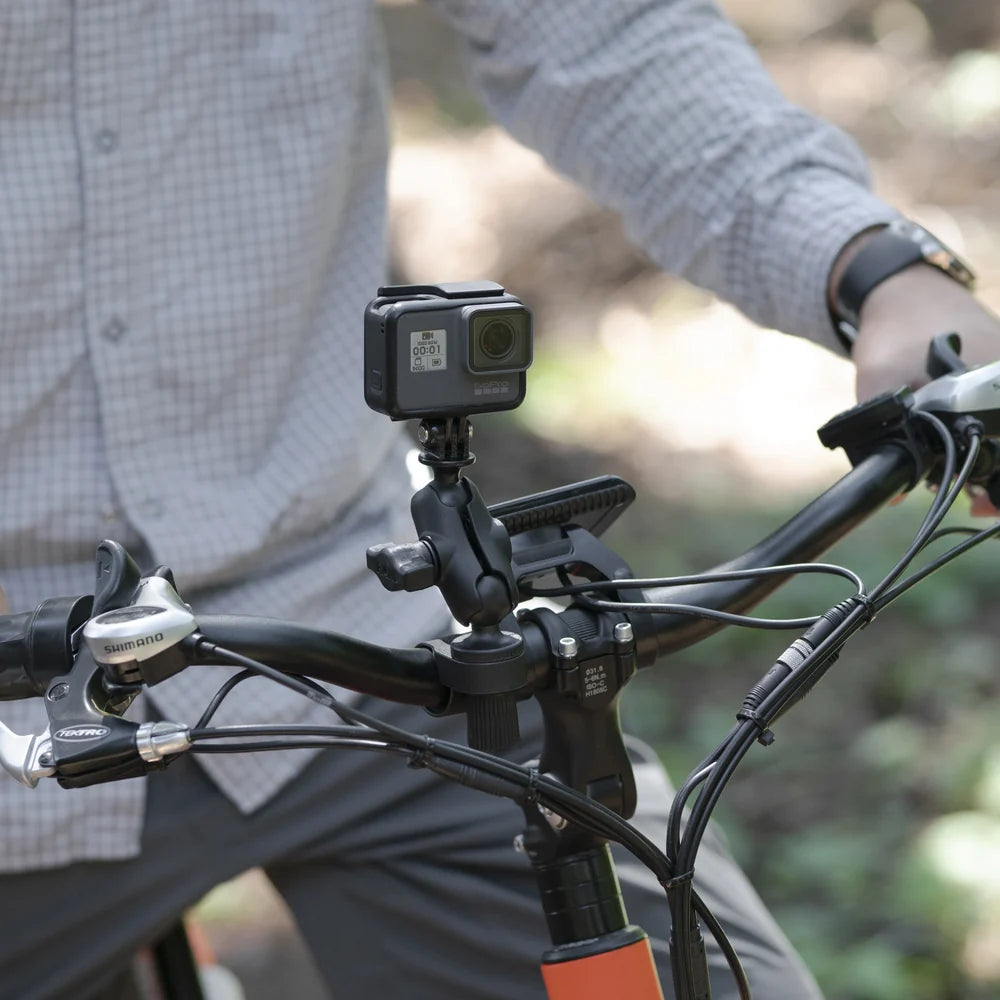

Position a compatible GoPro-style action camera on your bicycle or motorcycle handlebar with the RAM Tough-Strap mount. The strap base tightens with a knob, while the short B-size arm gives you adjustable camera angles in a compact setup.

The included straps and rubber strips cover round handlebar diameters from 0.875 to 1.38 inches (22.2–35.1mm). Use the manufacturer's assembly guide to select the correct combination for your measured bar diameter.

Your camera or its case must have a compatible GoPro-style finger/hinge mounting connection. Camera, camera case and model-specific adapters are not included. A bare 1/4 inch-20 tripod socket or proprietary magnetic camera connection requires its own suitable adapter.

Specifications

• Ball Size: B Size, 1 inch (25.4mm)

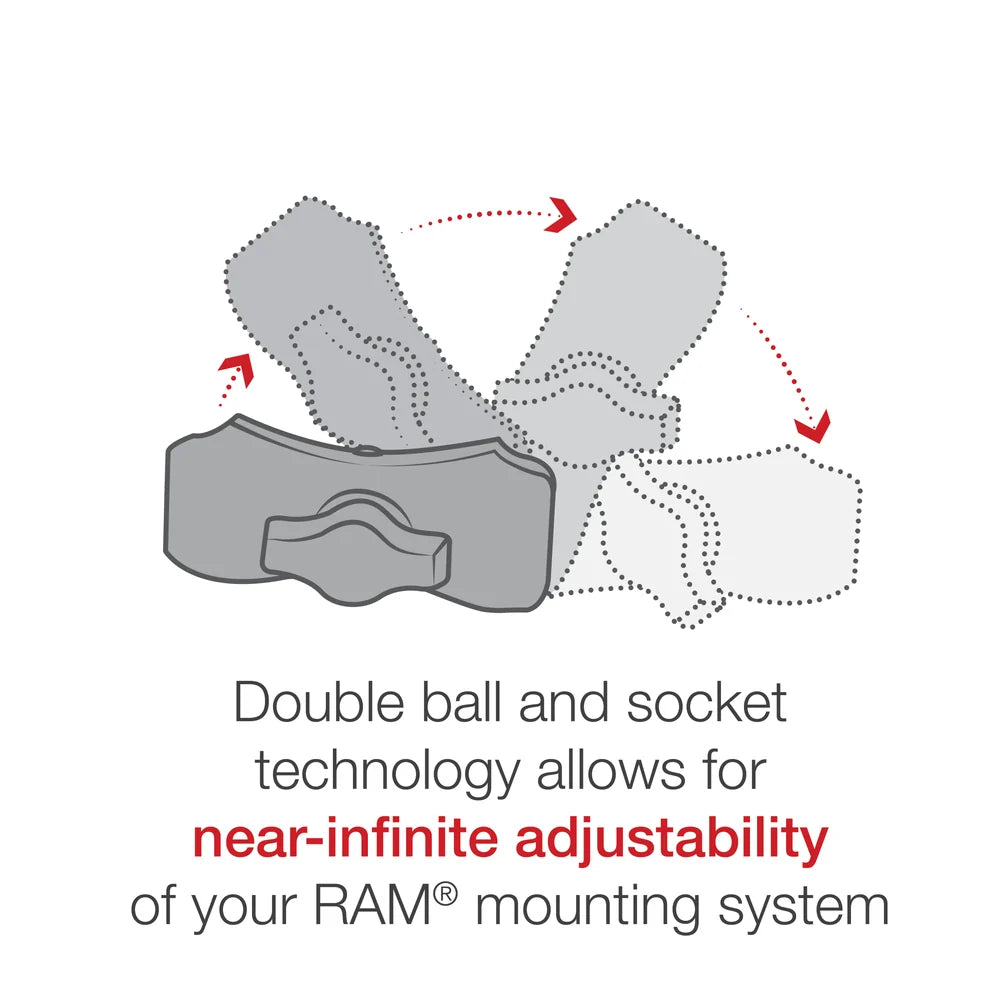

• Arm: Short composite double socket arm
• Clamp Range: 0.875–1.38 inches (22.2–35.1mm), using the correct supplied strap and rubber-strip combination
• Materials: High-strength composite with stainless steel hardware
• Weight Capacity: 2 lb (0.91kg) standard use; 1 lb (0.45kg) heavy-duty use. Include camera, housing and accessories in the supported load.
• Product Weight: 0.45 lb (approximately 204g)
• Packaging: Poly bag

Help

Check bar diameter, mounting security and clearance around controls, cables and steering before use. Do not install where the mount obstructs your view or interferes with safe vehicle operation.

• Tough-Strap Ball Base Assembly Guide
• Action Camera Ball Adapter Instructions
