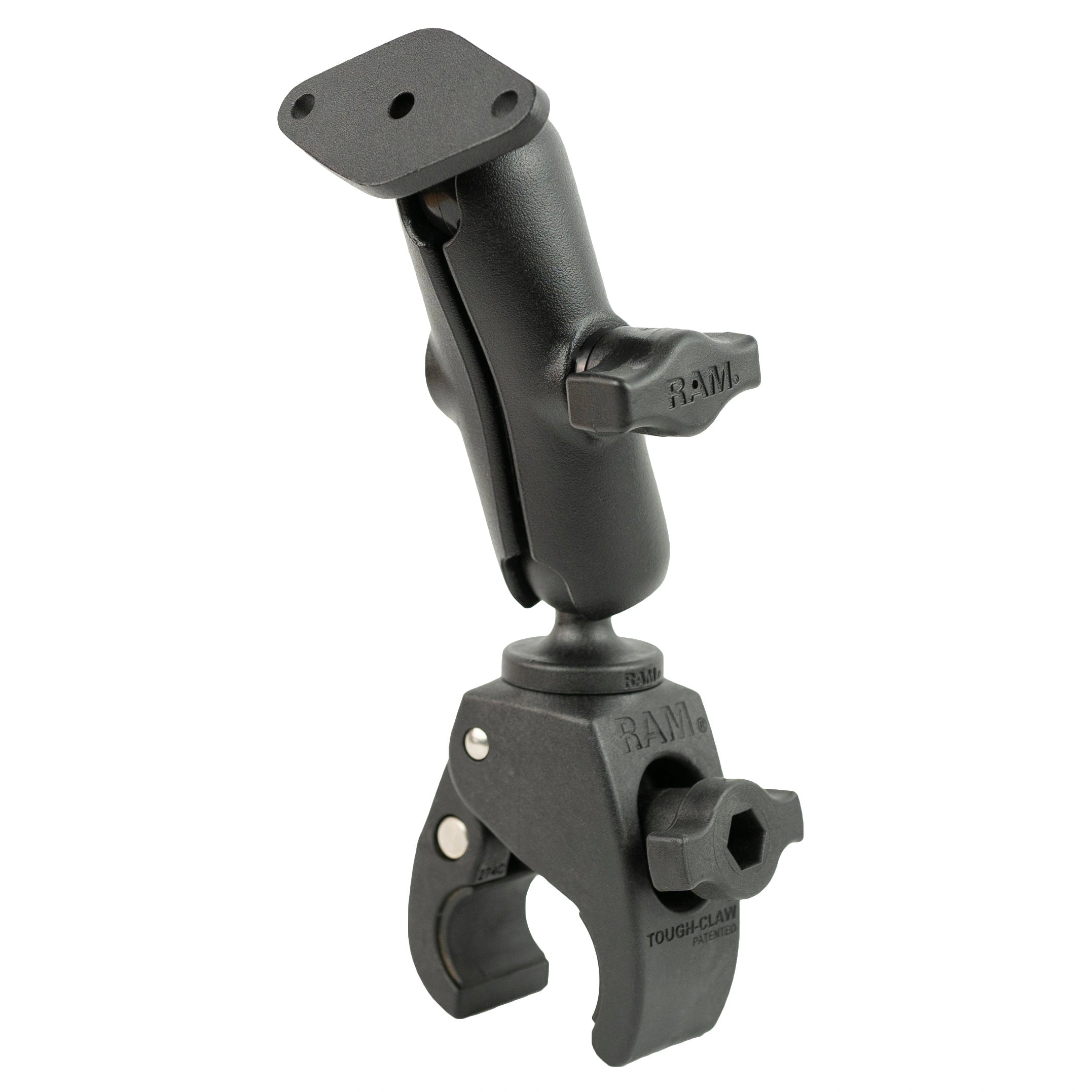

RAM Small Tough-Claw Mount w Standard Arm & Diamond Plate (RAM-B-400-238U)

Included:

• 1 x RAM Small Tough-Claw Clamp with 1" Ball (RAP-B-400U)
• 1 x RAM Standard Double Socket Clamp Arm B Size (RAM-B-201U)
• 1 x RAM Diamond Base with 1" B Size Ball (RAM-B-238U)

The RAM-B-400-238U combines a small Tough-Claw clamp, medium arm and diamond plate for attaching a compatible holder to a rail or handlebar. The clamp installs and removes without tools, with rubber pads to help protect the mounting surface.

B Size ball-and-socket adjustment lets you position the holder at either end of the arm. The diamond plate accepts a matching 2-hole AMPS holder. Device holder sold separately.

Specifications

• Rail Diameter: 0.625"–1.14" (15.9–29.0 mm), as specified for this kit by RAM
• Arm Length: 3.73" (94.7 mm) overall; 3" (76.2 mm) socket-to-socket
• Diamond Plate: 2.43" × 1.31" (61.7 × 33.3 mm)
• Hole Pattern: 2-hole AMPS, 1.912" (48.6 mm) hole spacing
• Ball Size: B Size 1" (25.4 mm) rubber balls
• Weight Capacity: Standard use: 2 lbs (0.91 kg); heavy-duty use: 1 lb (0.45 kg)
• Material: Powder-coated marine-grade aluminium and high-strength composite
• Packaging: Poly bag
• Weight: 0.69 lb (approximately 313 g)
• Warranty: RAM limited lifetime warranty

Fitment: Check the rail's shape and diameter, holder hole pattern and total supported weight. This listing follows RAM's published kit-specific clamp range.

Help

• RAM diamond plate drawing

Holder Connection: The supplied diamond plate is for a flat-backed holder with the matching 2-hole AMPS pattern. A holder with its own B Size ball can connect directly to the arm in place of the upper plate.
