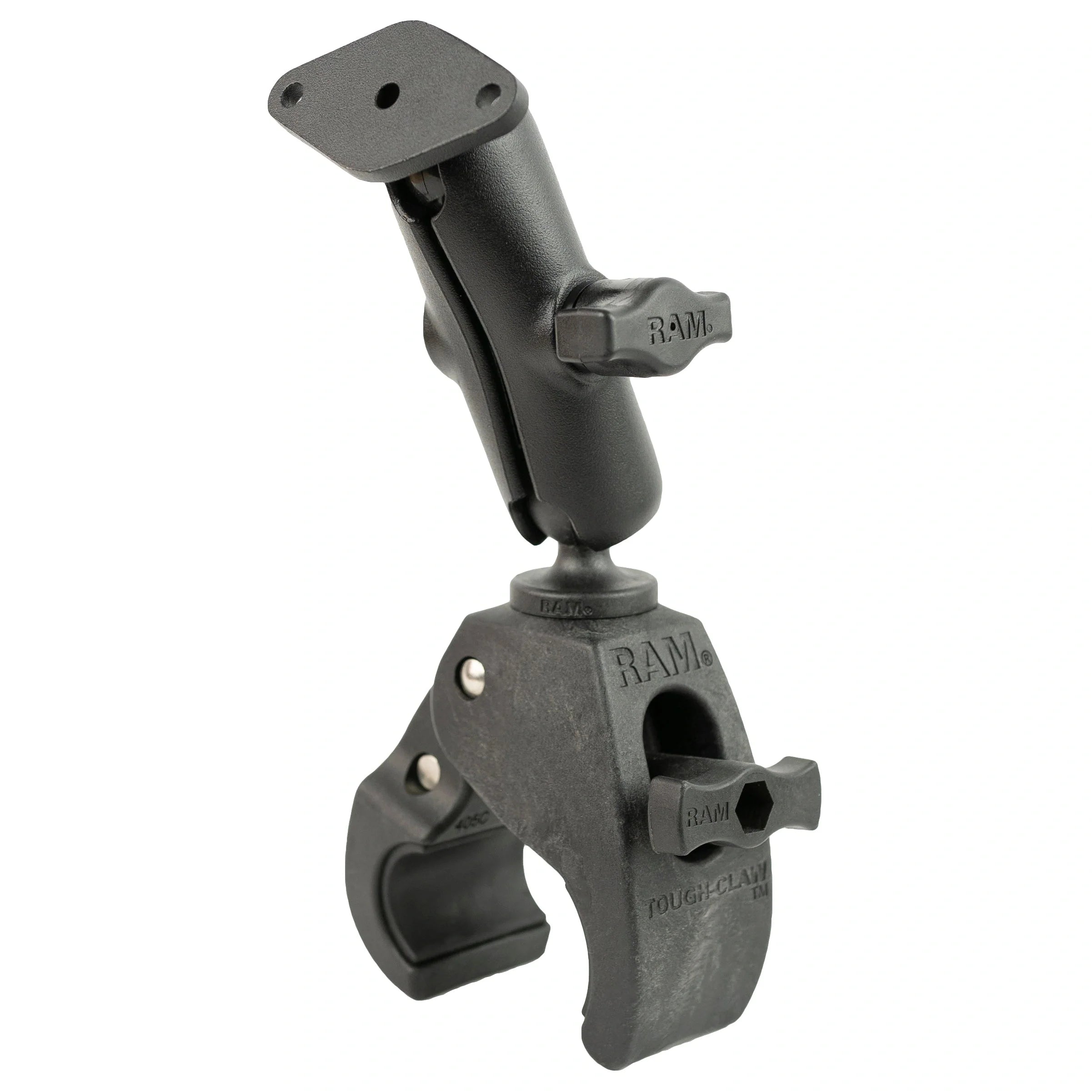

RAM Medium Tough-Claw Diamond Plate Bundle (RAM-B-404-238U)

Included:

• 1 x RAM Medium Tough-Claw Clamp Base with 1" B Size Ball (RAP-B-404U)
• 1 x RAM Medium Double Socket Arm, B Size (RAM-B-201U)
• 1 x RAM Diamond Plate with 1" B Size Ball (RAM-B-238U)

This tool-free RAM rail mounting kit is built around the medium Tough-Claw clamp. Its medium B size arm and diamond plate provide an adjustable connection for a compatible holder or accessory with the 2-hole AMPS pattern.

The clamp can be moved between suitable round, square and irregular rails; check the rail shape and clearance as well as its size.

RAM’s rubber ball-and-socket system provides adjustment at both ends of the arm and helps dampen shock and vibration.

A compatible holder or accessory and device are sold separately.

Specifications

• Ball Size: B Size, 1" (25.4mm)
• Arm Length: Medium
• Overall Arm Length: 3.73" (94.7mm), RAM-B-201U
• Socket-to-Socket Length: 3" (76.2mm)
• Clamp Range: Round rail: 1"–1.6" (25.4–40.64mm) outside diameter
• Plate Size: Diamond output plate with 2-hole AMPS pattern
• Hole Pattern: 2-hole AMPS: 1.912" (48.56mm) centre-to-centre
• Manufacturer-rated Capacity: Standard use: 2 lb (0.91kg); heavy-duty use: 1 lb (0.45kg)
• Materials: Powder-coated marine-grade aluminium and high-strength composite
• Warranty: RAM limited lifetime warranty, subject to manufacturer terms.

Packaging may vary; all listed components are genuine RAM.

Help

The supplied holder-side diamond plate presents the 2-hole AMPS (48.56mm centre-to-centre) pattern for a matching flat-backed holder or dock. A holder with its own compatible 1" B size ball can attach directly to the arm instead, without the upper plate. Match the holder’s connection and ball size before choosing the setup.

This kit uses the medium Tough-Claw for 1"–1.6" (25.4–40.64mm) round rails. Check the rail’s outside diameter and clearance.

Include the holder, device and attached accessories when checking the load. Choose the heavy-duty rating for more demanding conditions and follow the manufacturer’s installation instructions.
