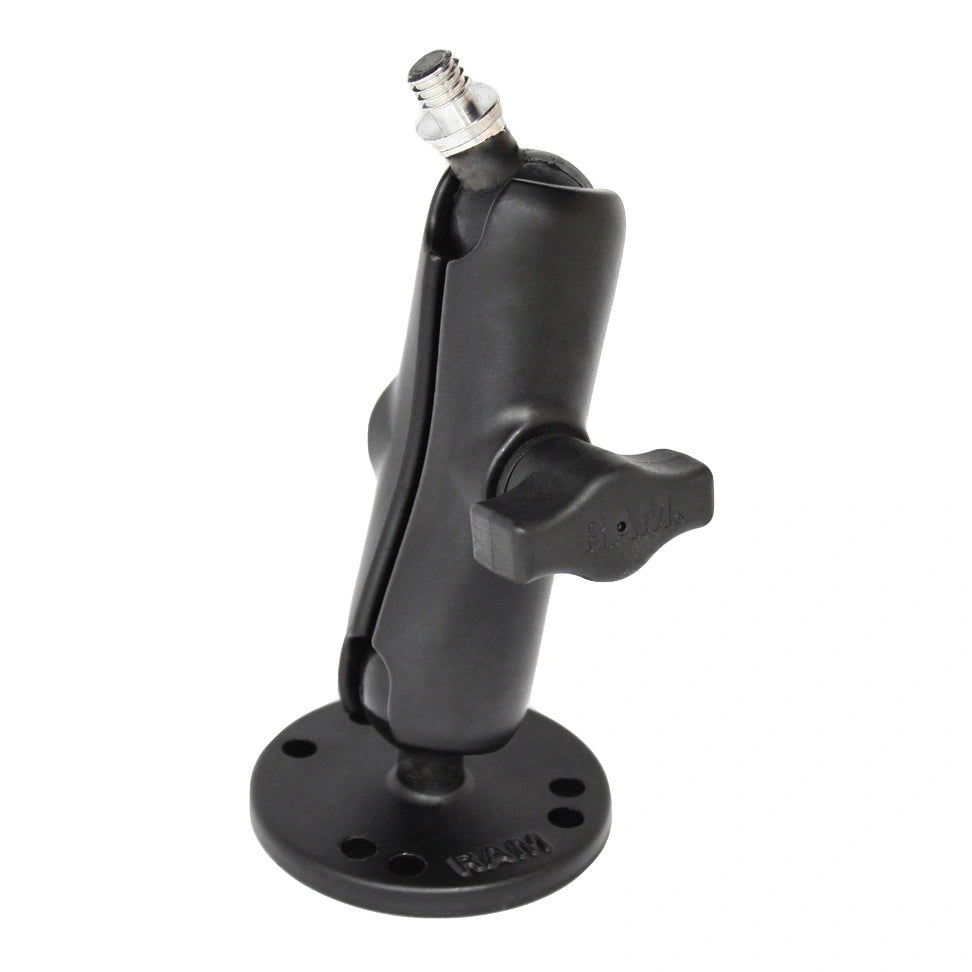

RAM Double Ball Mount with 3/8"-16 Stud & Round Plate (RAM-B-101-236U)

Included:

• 1 x RAM 1" Ball with 3/8" Male Thread (RAM-B-236U)
• 1 x RAM Standard Double Socket Clamp Arm B Size (RAM-B-201U)
• 1 x RAM Round Base with 1" B Ball (RAM-B-202U)

The RAM-B-101-236U combines a 3/8"-16 threaded ball, medium double socket arm and 2.5" round AMPS plate. Use the threaded end with a matching female 3/8"-16 connection and the plate with a compatible flat mounting surface or holder.

Device holder and device are sold separately. The supplied round plate fits a holder with a matching four-hole AMPS pattern. A holder with its own 1" B-size ball can connect directly to the arm in place of this plate.

Specifications

• Mounting Thread: 3/8"-16 male
• Thread Length: 0.5" (12.7 mm)
• Plate Connection: 2.5" (63.5 mm) round plate; four-hole AMPS pattern
• Arm Length: 3.73" (94.7 mm) overall; 3" (76.2 mm) socket-to-socket
• Component Weight Capacity: Standard use: 2 lbs (0.91 kg); heavy-duty use: 1 lb (0.45 kg), subject to the mounting surface and installed connection
• Material: Powder-coated marine-grade aluminium with stainless-steel lock washer
• Hardware Included:
  • 1 x 3/8" stainless-steel split lock washer

Packaging may vary; all listed components are genuine RAM.

Installation & Fitment: Check the exact thread, engagement depth and seating surface at the threaded connection. Match the round plate to the mounting surface or holder and select suitable attachment hardware. If used on a vehicle, confirm clearance and the function of the original fastener. No metric or reverse-thread adapter is included.

RAM component limited lifetime warranty.

Reference price shown is the combined RRP of the included components.
