RAP-403U

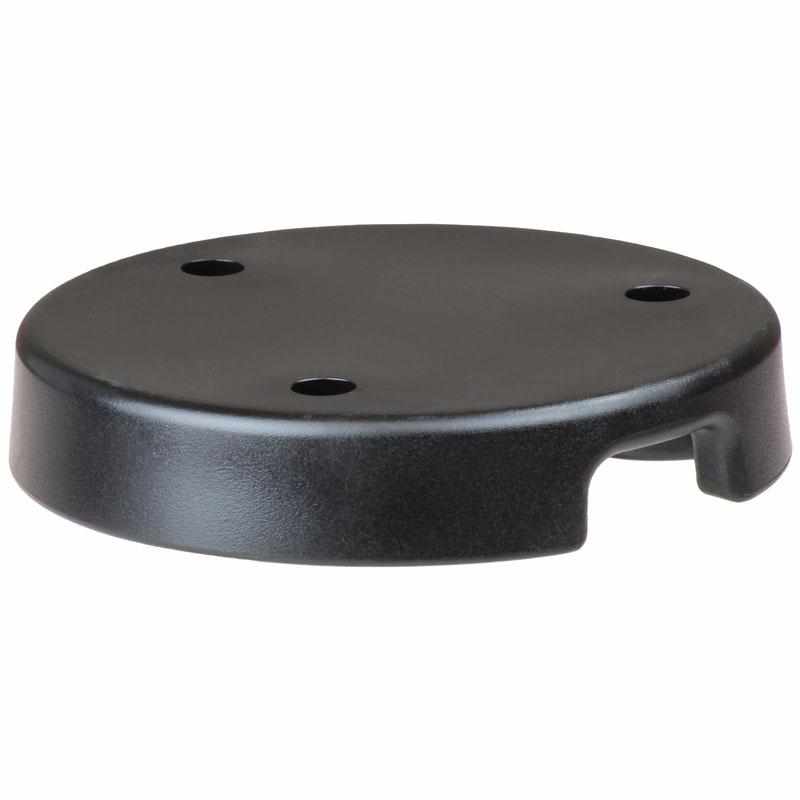

The RAP-403U Cable Manager offers an integrated route for electrical wiring and cleanly covers installation holes. A great addition to any surface mounting application. The RAM Cable Manager is made of glass-filled nylon which has the benefit of creating a barrier between the RAM Surface Mount and the attachment area; minimizing vibration while reducing fibreglass and gel-coat damage.
This item will work with any of the 2 5/8" round plates with AMPs hole pattern (ie. RAM-202U).
HARDWARE INCLUDED
(4) #10-24 x 2" Machine Screws
(4) #10-24 Nylock Nuts
(4) #10 Fender Washers
PRODUCT DIMENSIONS
Cable Slot Height: .56"
Cable Slot Width: .7"
CLAMP RANGE
Max mounting surface thickness: .68"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
MATERIALS
High strength composite
WEIGHT
0.25 lbs.
ADDITIONAL INFORMATION
To prevent galling of threads during assembly, it is imperative that all threads are lubricated with oil prior to assembly.
Note: The "U" in the part number reflects product packaged in poly bag.
