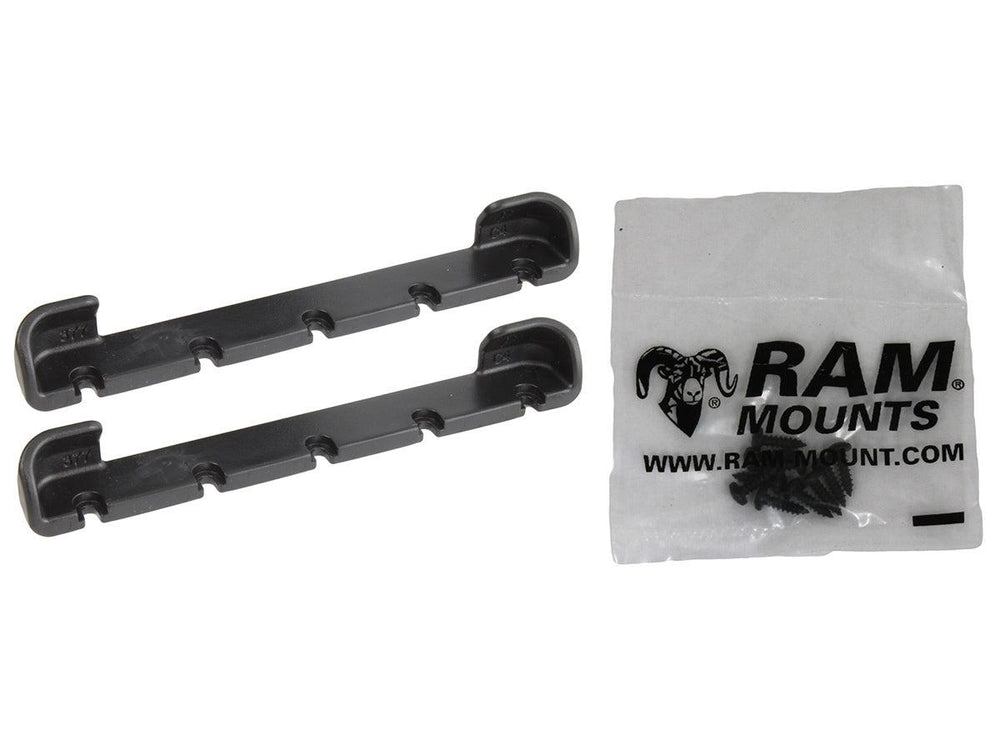

RAM Tab-Tite End Cups for Small 7" Tablets (RAM-HOL-TAB5-CUPSU)

Cup ends only: 1 set (2 cups) supplied.

Use this RAM-HOL-TAB5-CUPSU set to replace or change the cups on an existing compatible RAM Tab-Tite or Tab-Lock holder. Check your tablet, case and assembled-holder fit below before ordering.

Compatible backplate required: Reuse your compatible RAM-HOL-ACU Tab-Tite backplate or RAM-HOL-TABLBU Tab-Lock backplate. You need one backplate, not both; it is not included and is sold separately if needed.

Need cups and a backplate? Choose a full holder instead of buying both parts separately. See “Need a full holder?” below.

Included in this set

• 1 set of RAM-HOL-TAB5-CUPSU cup ends: 2 cups.
• Hardware to attach the cups to a compatible backplate, listed below.

Not included: Backplate, ball adapter, arm, mounting base, tablet or case.

Compatibility

These cup ends require one compatible RAM-HOL-ACU Tab-Tite backplate or RAM-HOL-TABLBU Tab-Lock backplate. An existing compatible backplate can be reused; a backplate is not included and is sold separately if needed.

Open-cup design for compatible 7-inch tablets. These are the cup ends used in RAM-HOL-TAB5U.

Measure your tablet with its case fitted, if you use one. Check the width, thickness, complete holder’s height range and access to buttons and ports. Screen size alone does not confirm fit.

Tablet fit

These are tablet-fit limits, not the physical dimensions of the loose cups. Height depends on the complete holder and backplate used.

Cup width and depth fit:
Width Range: 4.5" - 4.7"
Depth Range: .13" - .44"

Check the assembled height range of your chosen holder and backplate before ordering.

Specs

Included hardware

• (10) #4 x 3/8" Sheet Metal Screws
• (4) #8-32 x 5/8" Machine Screws
• (4) #8-32 x 1/2" Machine Screws
• (4) #8-32 Nyloc Nuts

Material: High strength composite.

Packaging: Poly bag.

Need a full holder?

If you need both cup ends and a backplate, choose a full holder rather than buying them separately.

If you already have compatible cups and only need a backplate, choose one of the backplates below. A backplate on its own is not a complete holder.
