RAM-HOL-UN12WB-V7M-1
RAM Tough-Charge 15W Waterproof Wireless Charging Holder w Charger (RAM-HOL-UN12WB-V7M-1)
$255.00$382.00
Size Guide

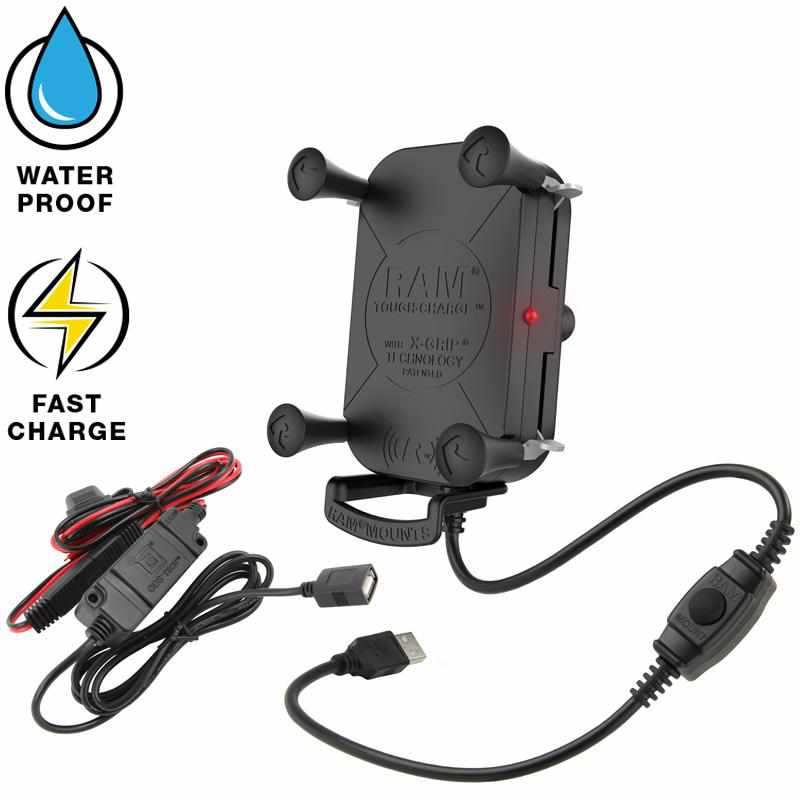

Included:
- 1 x RAM Tough-Charge X-Grip Cradle (RAM-HOL-UN12WB-1)
- 1 x Hardwire Charger for Motorcycles (RAM-CHARGE-V7MU)

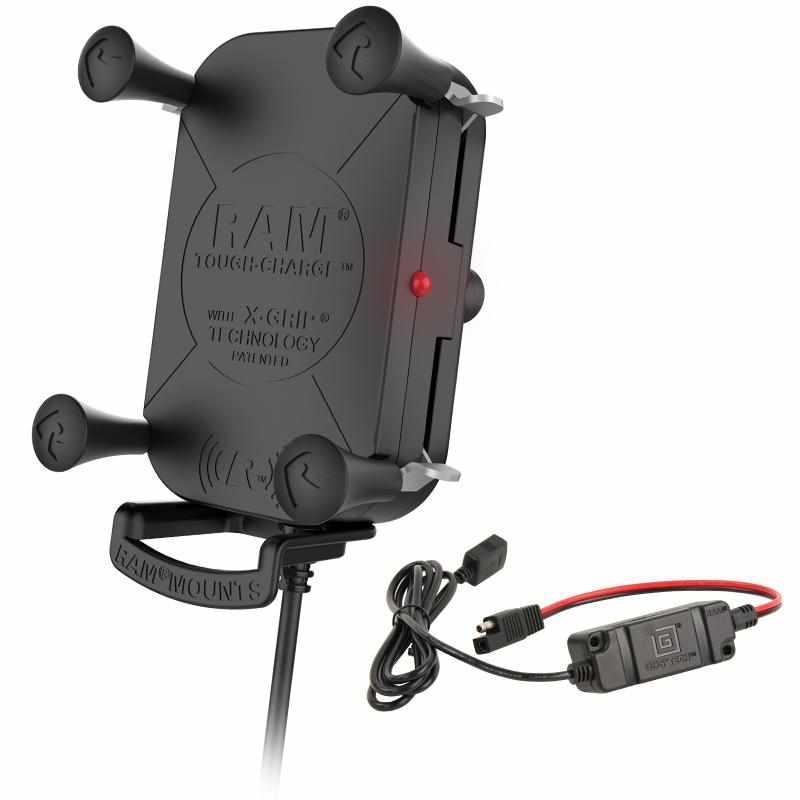

The RAM® Tough-Charge™ with X-Grip® Technology is the world's first patented, universal waterproof wireless charging cradle for phones.
FEATURES
- Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® X-Grip® technology and 15W maximum output
- Kit for motorcycles includes wireless cradle, B size diamond ball base, and hardwire charger; attaches to B size double socket arms
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required
Cradle Dimensions:
Width Range: 2.375" - 3.25"
Depth Range: 0.875" max
CHARGING
The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use.
For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable.
Specs

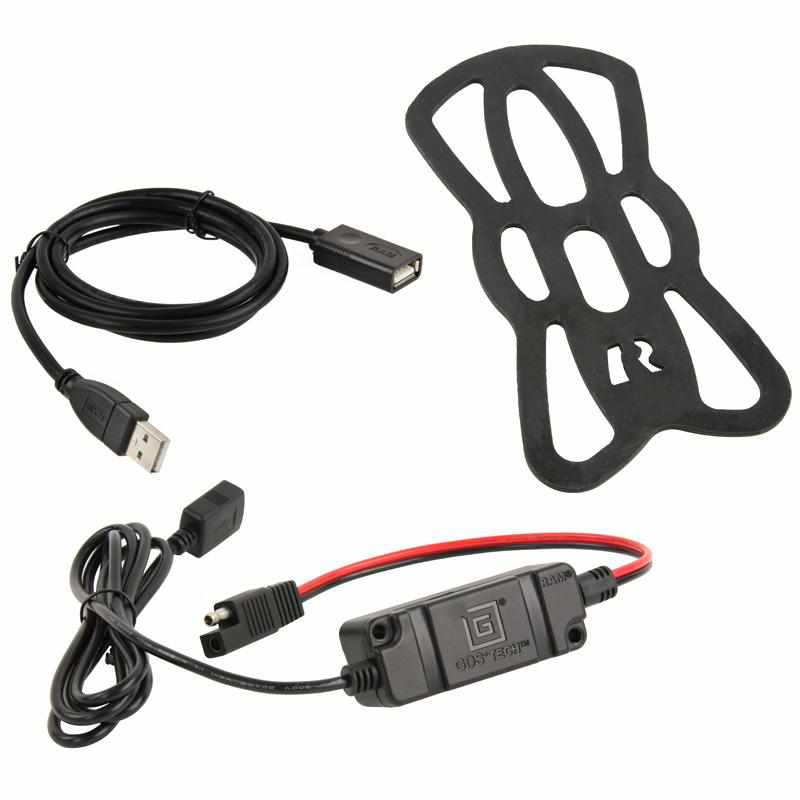

HARDWARE INCLUDED
(1) Safety Tether
(1) Glue Tube for Rubber Caps
(1) Cradle Leg
(1) Cradle Leg Cover
(1) Silicon sleeve for USB waterproof connection
(1) Hardwire Charger with Cable
(4) Small zip ties
(4) Large zip ties
(1) Glue Tube for Rubber Caps
(1) Cradle Leg
(1) Cradle Leg Cover
(1) Silicon sleeve for USB waterproof connection
(1) Hardwire Charger with Cable
(4) Small zip ties
(4) Large zip ties
HOLDER DIMENSIONS
Width Range: 2.375" - 3.25"
Depth Range: .875" max
Depth Range: .875" max
BALL/SOCKET SIZE
B Size (1")
MATERIALS
Marine-grade aluminum
High strength composite
Stainless steel
High strength composite
Stainless steel
POWER SPECIFICATIONS
Input Power:5V-2A; 9V-1.67A
Output: 15W
Conversion Efficiency: 85% Max
Maximum Case Thickness: 6mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
Qi Compatible
Compatible with QC2.0/QC3.0 power supplies
Output: 15W
Conversion Efficiency: 85% Max
Maximum Case Thickness: 6mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
Qi Compatible
Compatible with QC2.0/QC3.0 power supplies
COMPLIANCE
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
CERTIFICATIONS
CE Certification
KC
E-Mark Certification
RCM Certification
FCC Certification
KC
E-Mark Certification
RCM Certification
FCC Certification
WARRANTY STATUS
RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty
ADDITIONAL INFORMATION
This charger is not recommended for Apple iPhone 12, 13 & 14. These iPhone models support two wireless charging technologies: Apple’s proprietary “Magsafe” and WPC (Wireless Power Consortium) “Qi” standard. MagSafe can charge iPhones ~33-45% faster than the WPC Qi standard. RAM Wireless charging products provide WPC Qi BPP and EPP standard today up to 15W.
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
MagSafe is a registered trademark of Apple, Inc., Cupertino, CA
Help

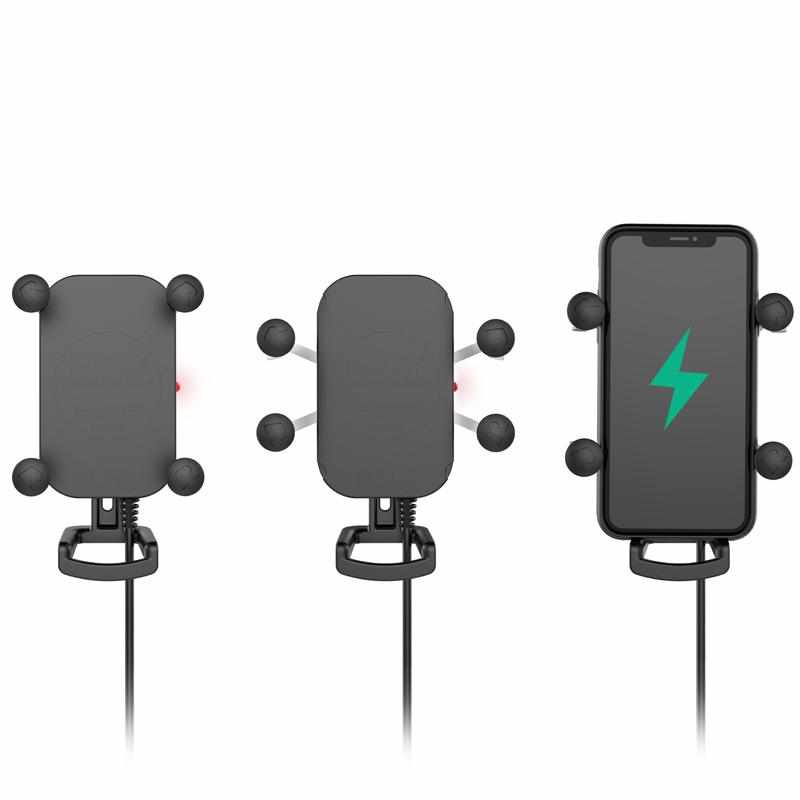

To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms.
