RAM-B-149Z-A-PD7VU
RAM Quick-Grip Pro XL Vibration Damping Phone Mount w U-Bolt Base (RAM-B-149Z-A-PD7VU)
$215.00$278.00
Size Guide

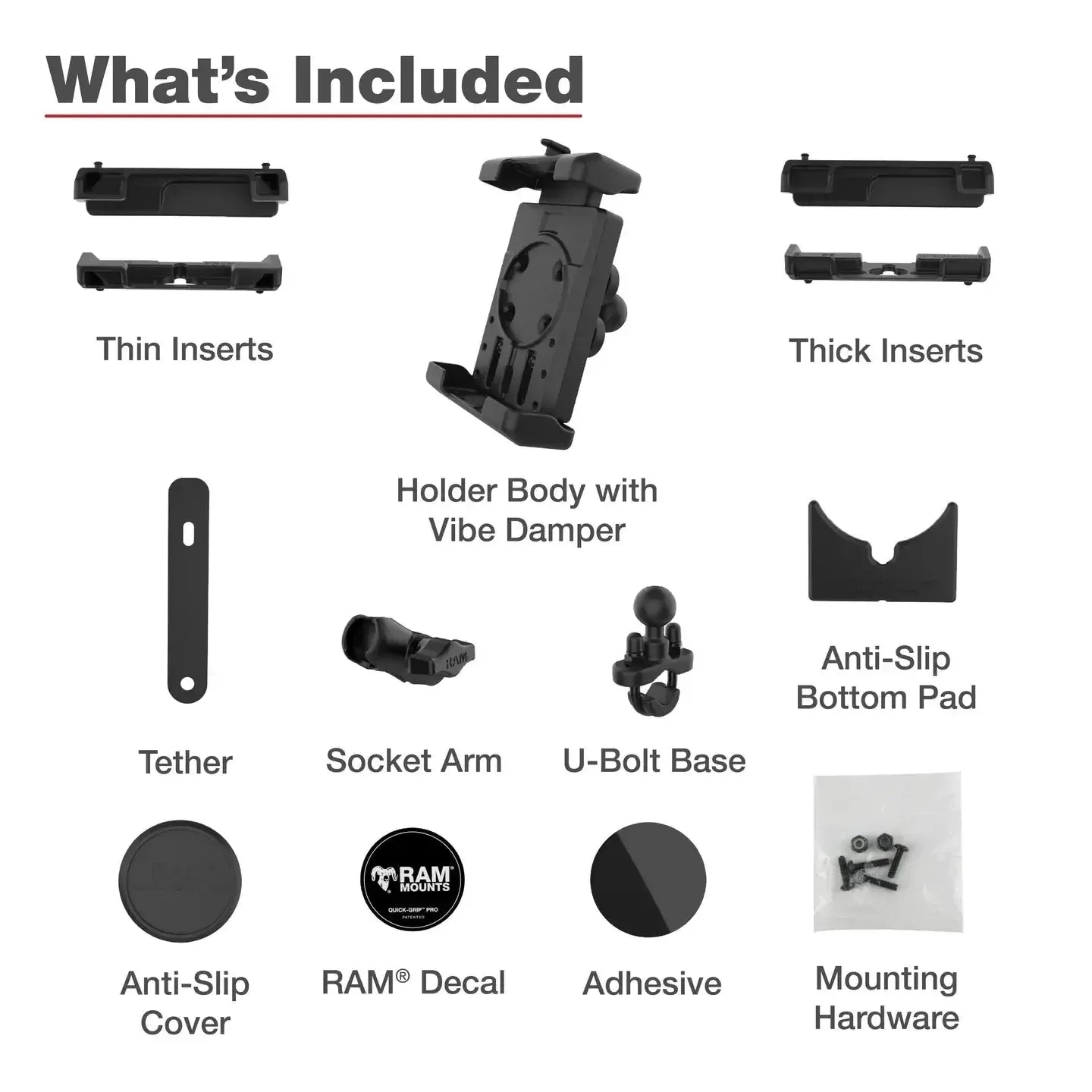

Included:
- 1 x RAM Quick-Grip Pro XL Phone Holder w Ball & Vibration Damper (RAM-HOL-PD7BVU)
- 1 x RAM Rail Base with U-Bolt & 1" Ball (RAM-B-231ZU)
- 1 x RAM Short Double Socket Clamp Arm B Size (RAM-B-201U-A)
- 1 x RAM Diamond Base with 1" B Size Ball (RAM-B-238U)

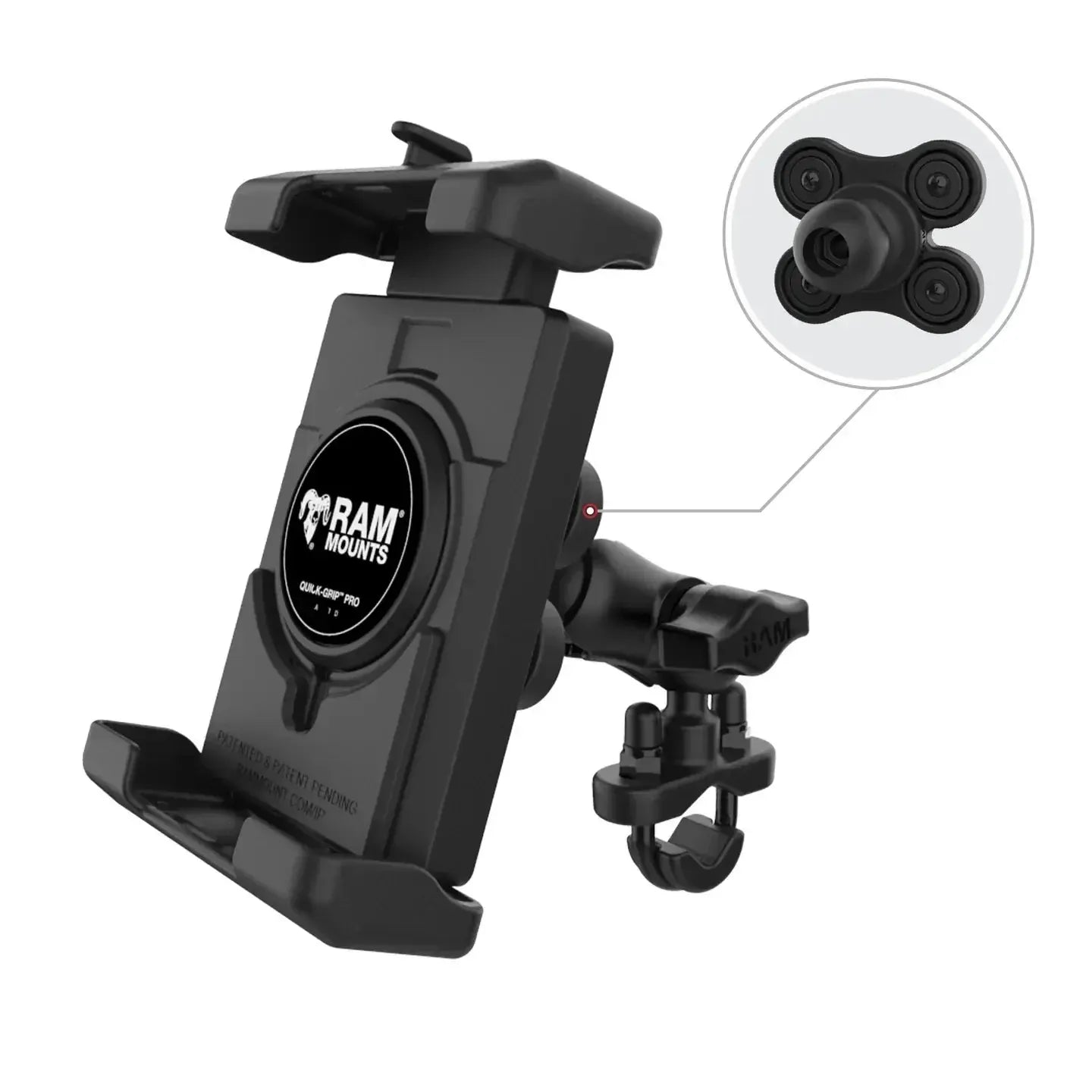

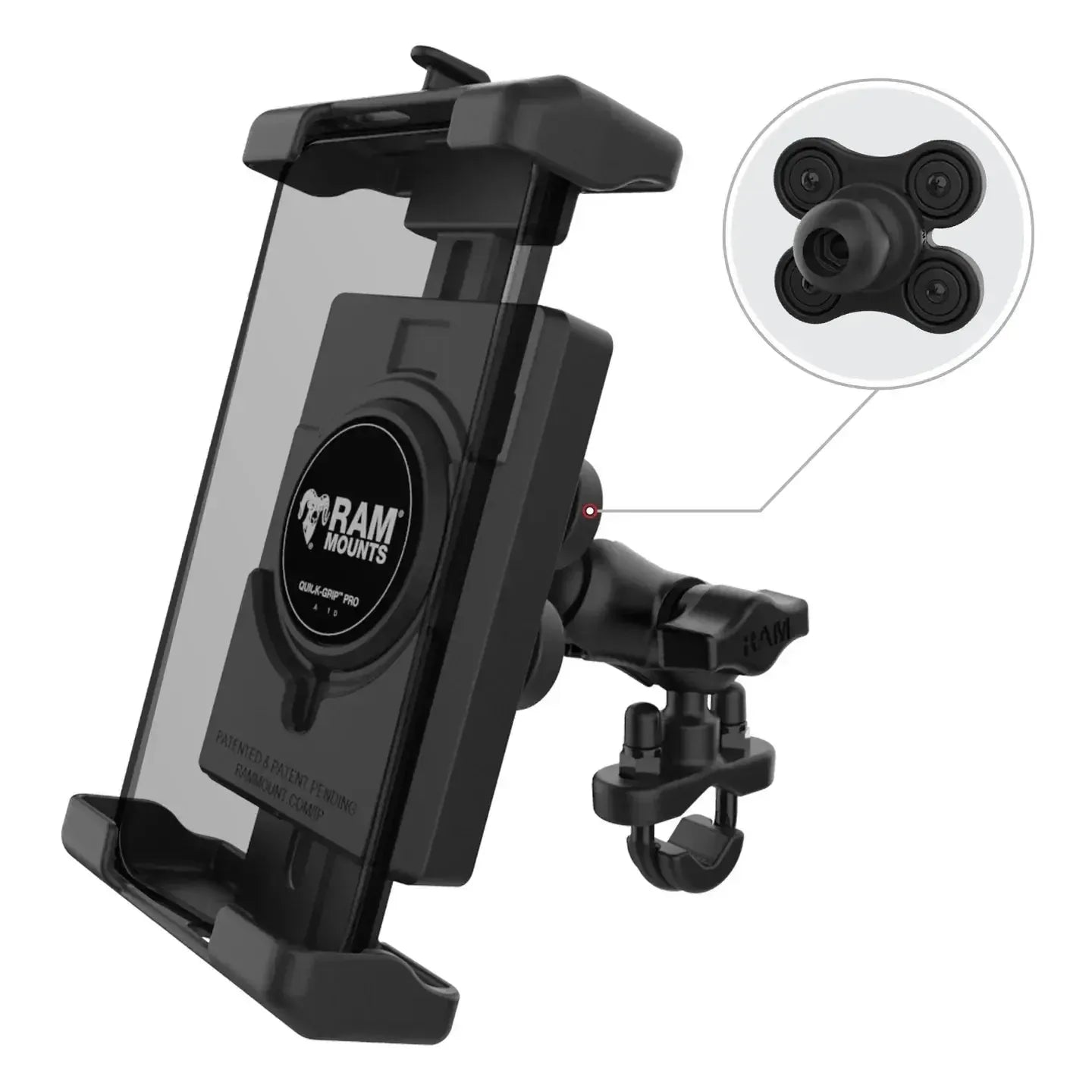

The RAM Quick-Grip Pro XL Vibration Damping Phone Mount with U-Bolt Base (RAM-B-149Z-A-PD7VU) is an ideal handlebar solution featuring the next evolution of the RAM Quick-Grip series of phone cradles made for large smart phones, and also including an integrated vibration damper.
Attach your phone to your handlebars, or any other rail that is between 0.50" and 1.25" (1.27cm and 3.17cm) in diameter.
This phone holder features an integrated cavity for an Apple MagSafe puck, allowing you to turn the phone holder into a wireless charging solution. Or purchase a RAM charging puck. Not interested in charging? No problem! The included anti-slip cover ensures a flush fit when the Apple MagSafe puck is not installed.

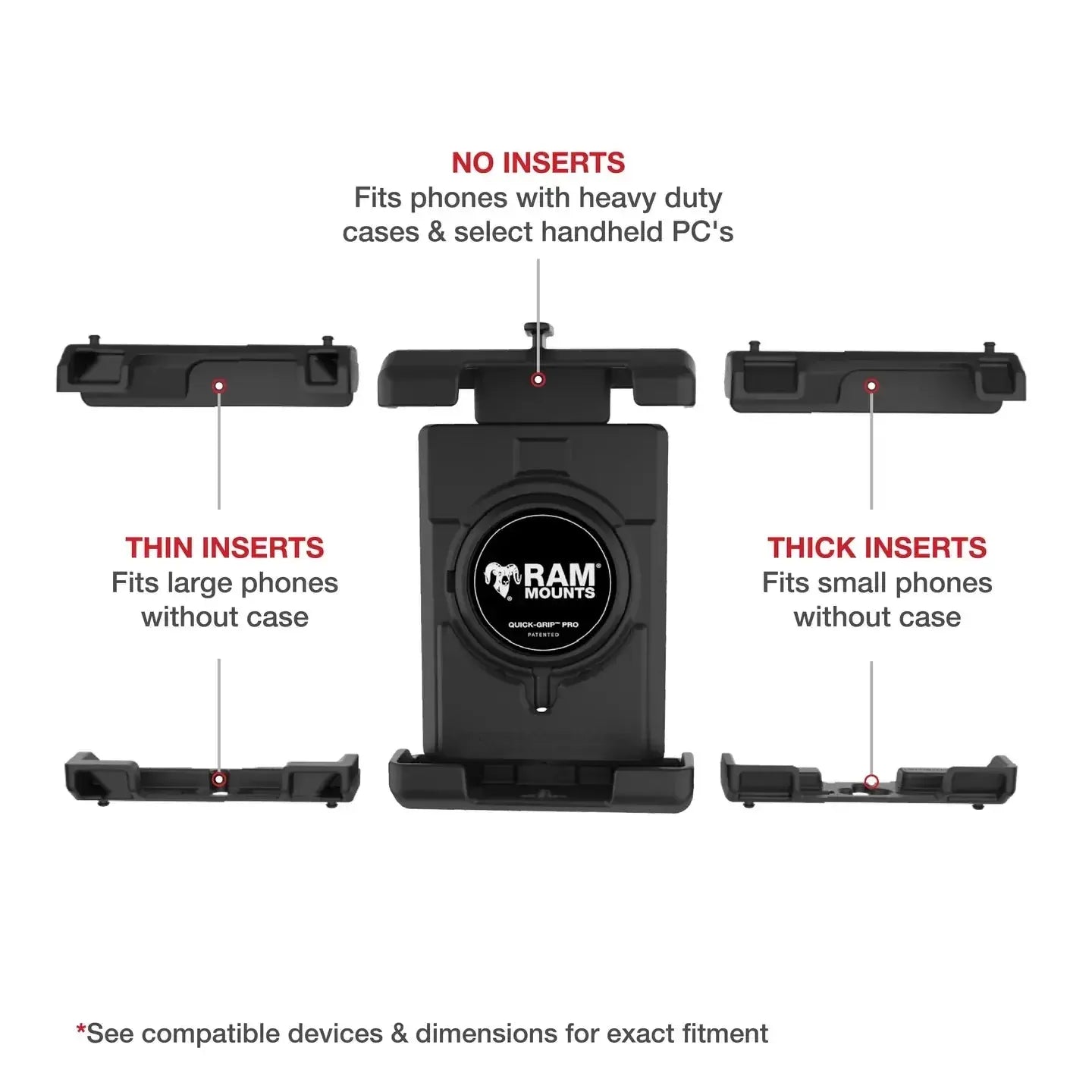

Check the cradle dimensions below or the 'Compatibility' tab for examples of compatible devices.
It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.
Specs
Features

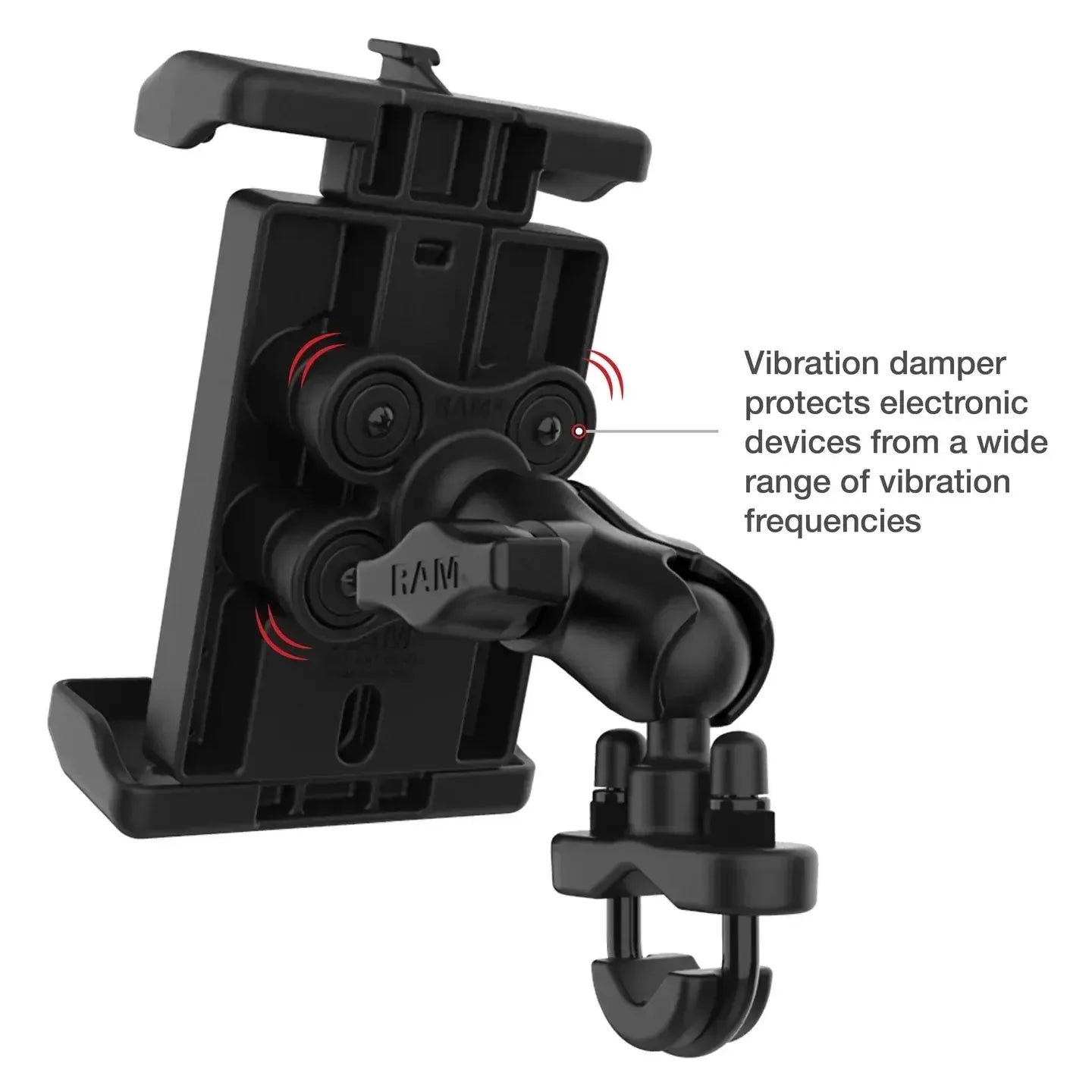

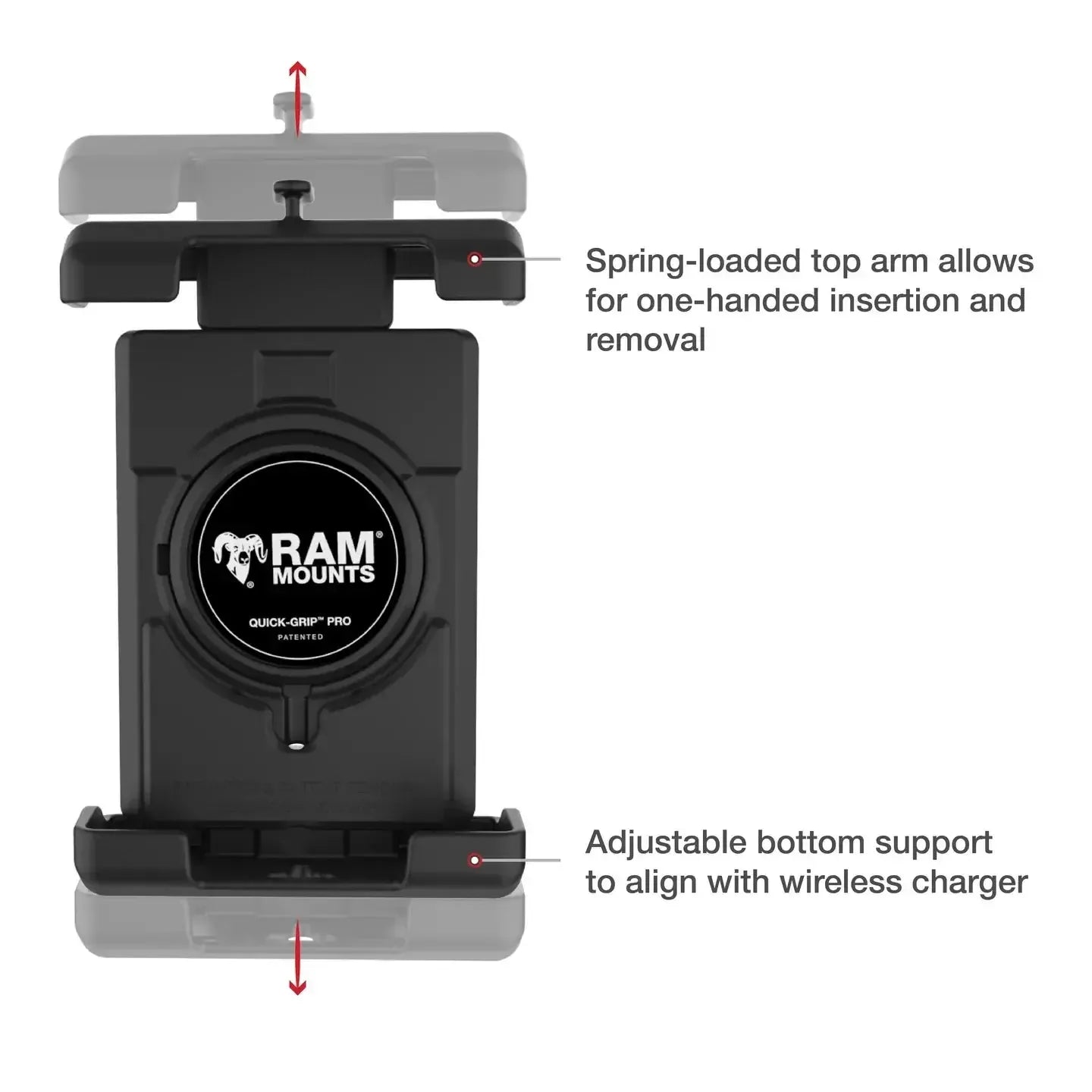

- Spring-loaded holder with integrated vibration damper provides a secure hold for phones and handheld devices; easily insert and remove your phone with one hand
- Includes U-bolt base that accommodates rails from 0.5" to 1.25" in diameter and a short length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability

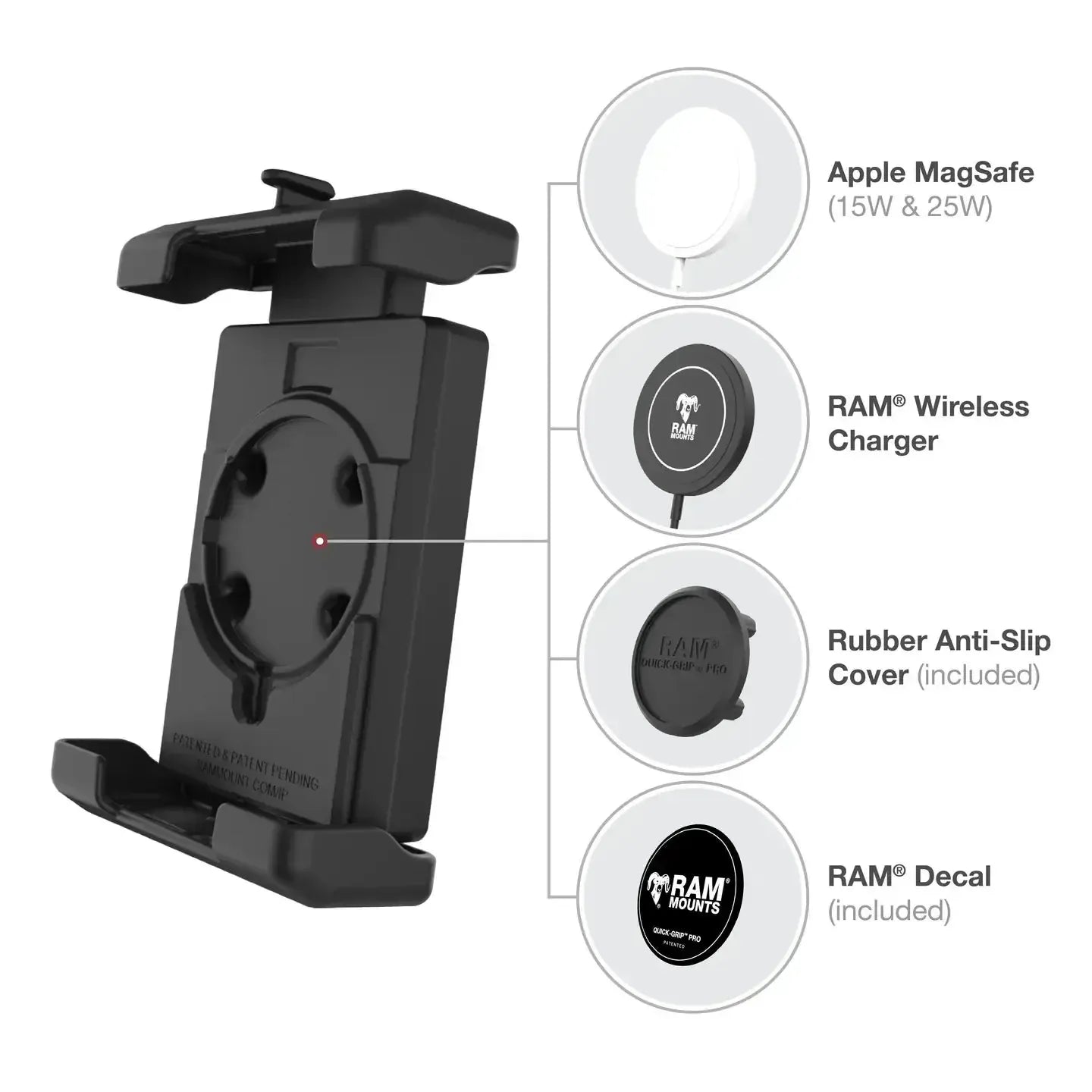

- Center cavity compatible with Apple MagSafe puck; non-slip cover and puck adhesive included. Also compatible with the RAM charging puck.
- Comes with optional device tether for open cockpit environments
- Made of high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Hardware Included:
-
Assembly Hardware
-
(1) 1/4"-20 U-Bolt for 0.5" - 1" rails
-
(1) 1/4"-20 U-Bolt for 1" - 1.25" rails
-
(2) 1/4"-20 Nylock nuts
-
(2) Rubber caps
-
(1) U-Bolt spacer
Holder Dimensions:
- Height range: 5.375" - 7" (136.5 mm - 177.8 mm)
- Width range:2.75" - 3.5" (69.85 mm - 88.9 mm)
- Max depth:0.75" (19.05 mm)
Clamp Range:
-
0.5" - 1.25" diameter
Socket-to-Socket Length:
-
1.75"
Ball Size:
-
B Size (1")
Weight Capacity:
-
Standard use: 2 lbs
-
Heavy-duty use: 1 lb
Materials:
-
Marine-grade aluminum
-
High-strength composite
Packaging Type:
-
Poly bag
Weight:
-
1.31 lb
Additional Information:
A reduction in vibration does not guarantee full protection of device. External immeasurable factors may cause damage to phones, cameras, and other devices while mounted. National Products, Inc does not assume responsibility or liability for any such personal injury, death or property damage. RAM® mounts lifetime warranty is limited to RAM® mounts and components. The warranty does not include any device mounted or attached to a RAM® mount, such as a phone, GPS, camera, computer or other device.
