RAM-B-149Z-A-PD5U
RAM Quick-Grip Pro™ Phone Mount w Short Handlebar U-Bolt (RAM-B-149Z-A-PD5U)
$188.00$237.00
Size Guide

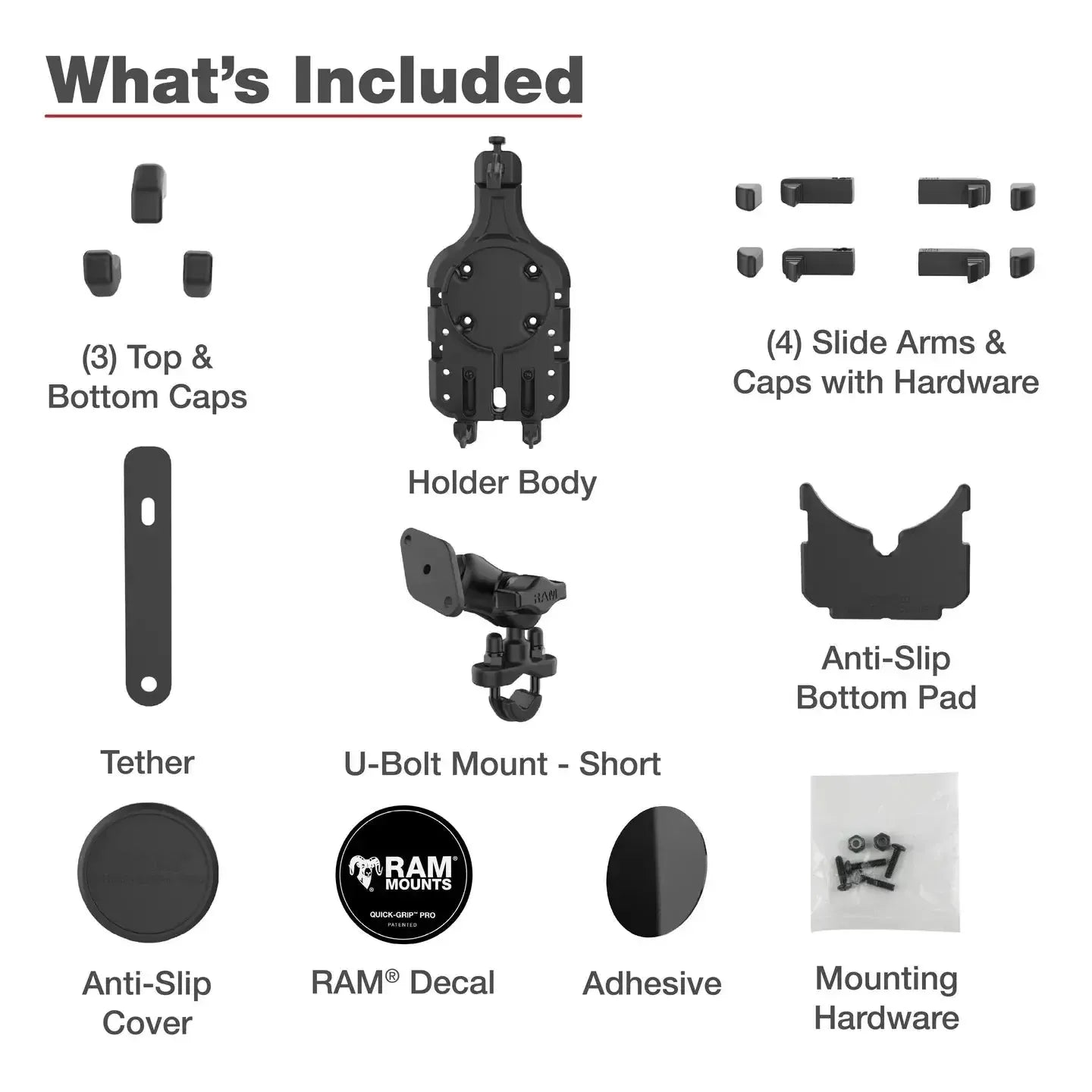

Included:
- 1 x RAM Quick-Grip Pro Phone Holder (RAM-HOL-PD5U)
- 1 x RAM Rail Base with U-Bolt & 1" Ball (RAM-B-231ZU)
- 1 x RAM Short Double Socket Clamp Arm B Size (RAM-B-201U-A)
- 1 x RAM Diamond Base with 1" B Size Ball (RAM-B-238U)

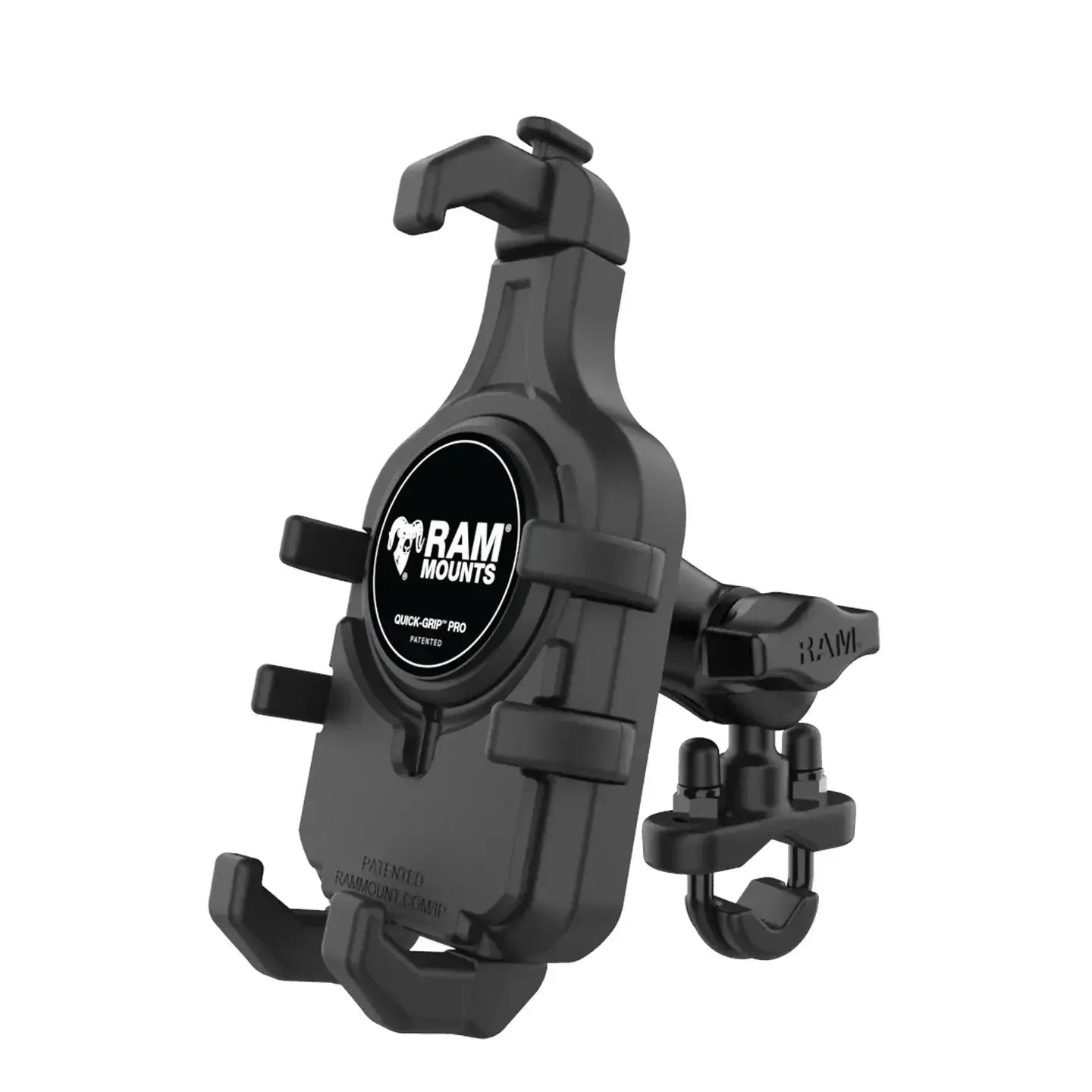

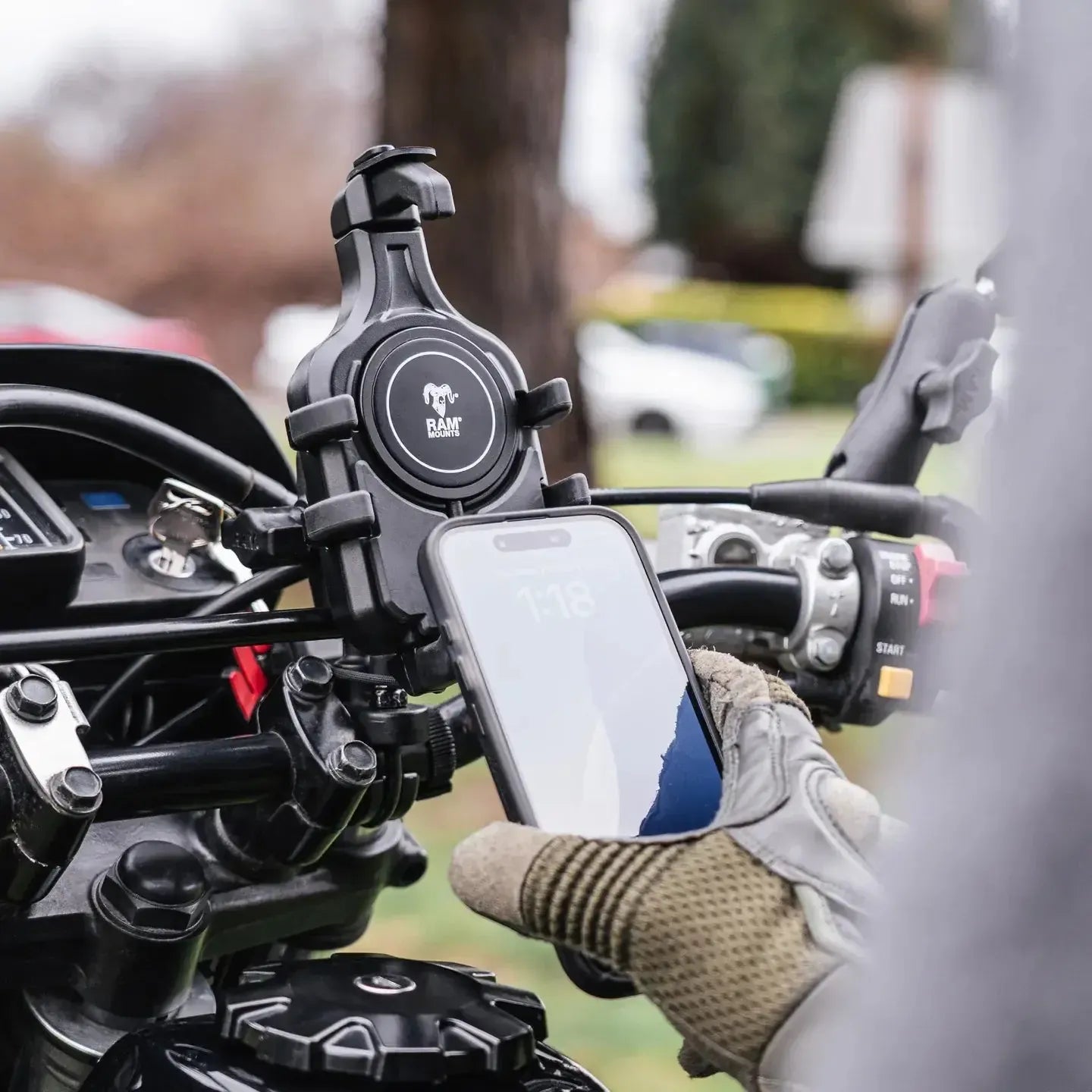

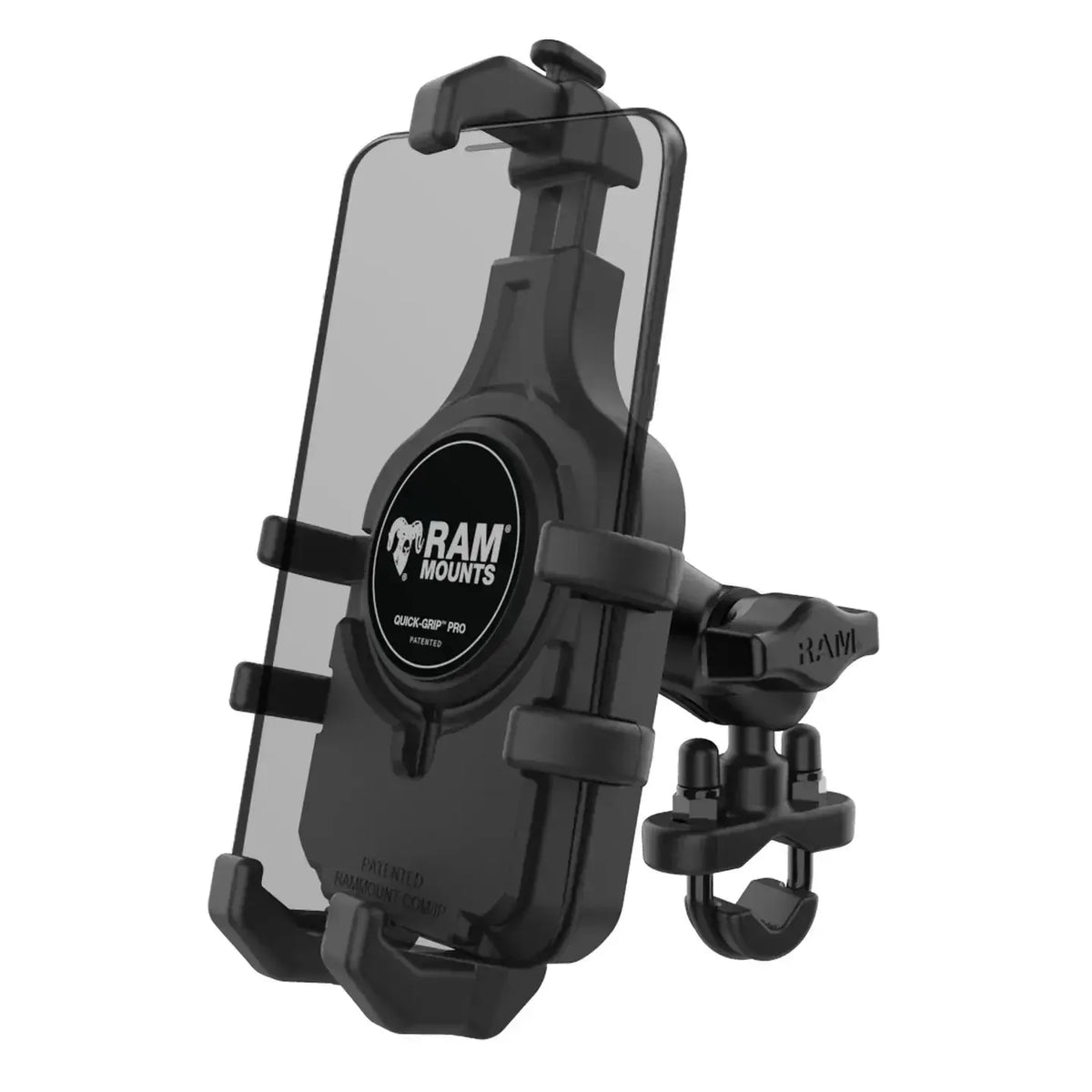

The RAM Quick-Grip™ Pro Phone Mount with Handlebar U-Bolt Base (RAM-B-149Z-A-PD5U) is an ideal handlebar solution featuring the next evolution of the RAM Quick-Grip series. Attach your phone to your handlebars, or any other rail that is between 0.50" and 1.25" (1.27cm and 3.17cm) in diameter.

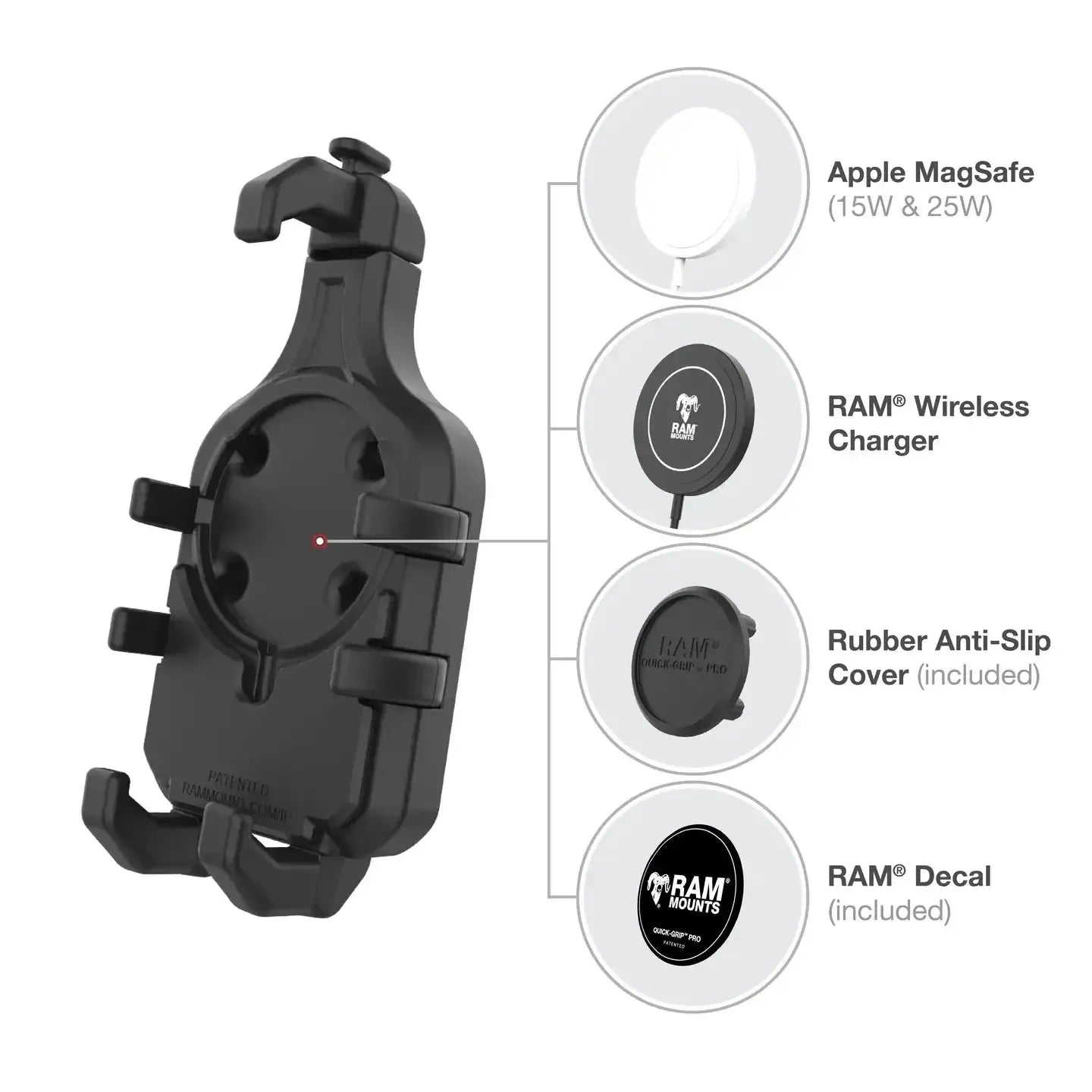

This phone holder features an integrated cavity for an Apple MagSafe puck, allowing you to turn the phone holder into a wireless charging solution. Or purchase a RAM charging puck. Not interested in charging? No problem! The included anti-slip cover ensures a flush fit when the Apple MagSafe puck is not installed.

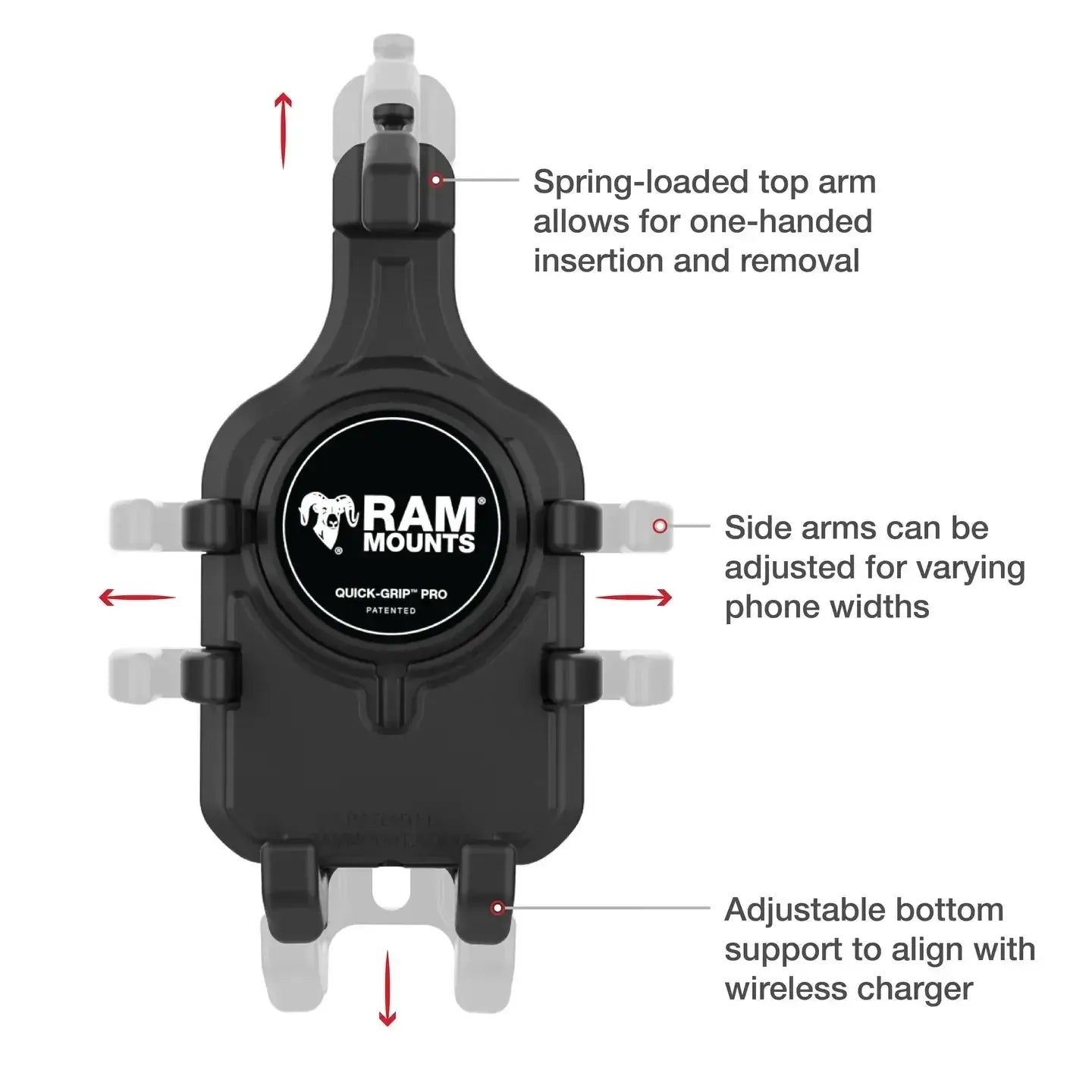

The RAM Quick-Grip Pro features a spring-loaded design that allows easy one-handed insertion and removal of your phone. The adjustable side arms ensure that your phone will remain secured in the holder without blocking any ports or buttons.
Check the cradle dimensions below or the 'Compatibility' tab for examples of compatible devices. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.
Specs
Features
- Spring-loaded holder features adjustable side supports overmolded with a soft rubber that provide a secure hold for a variety of phones; easily insert and remove your phone with one hand

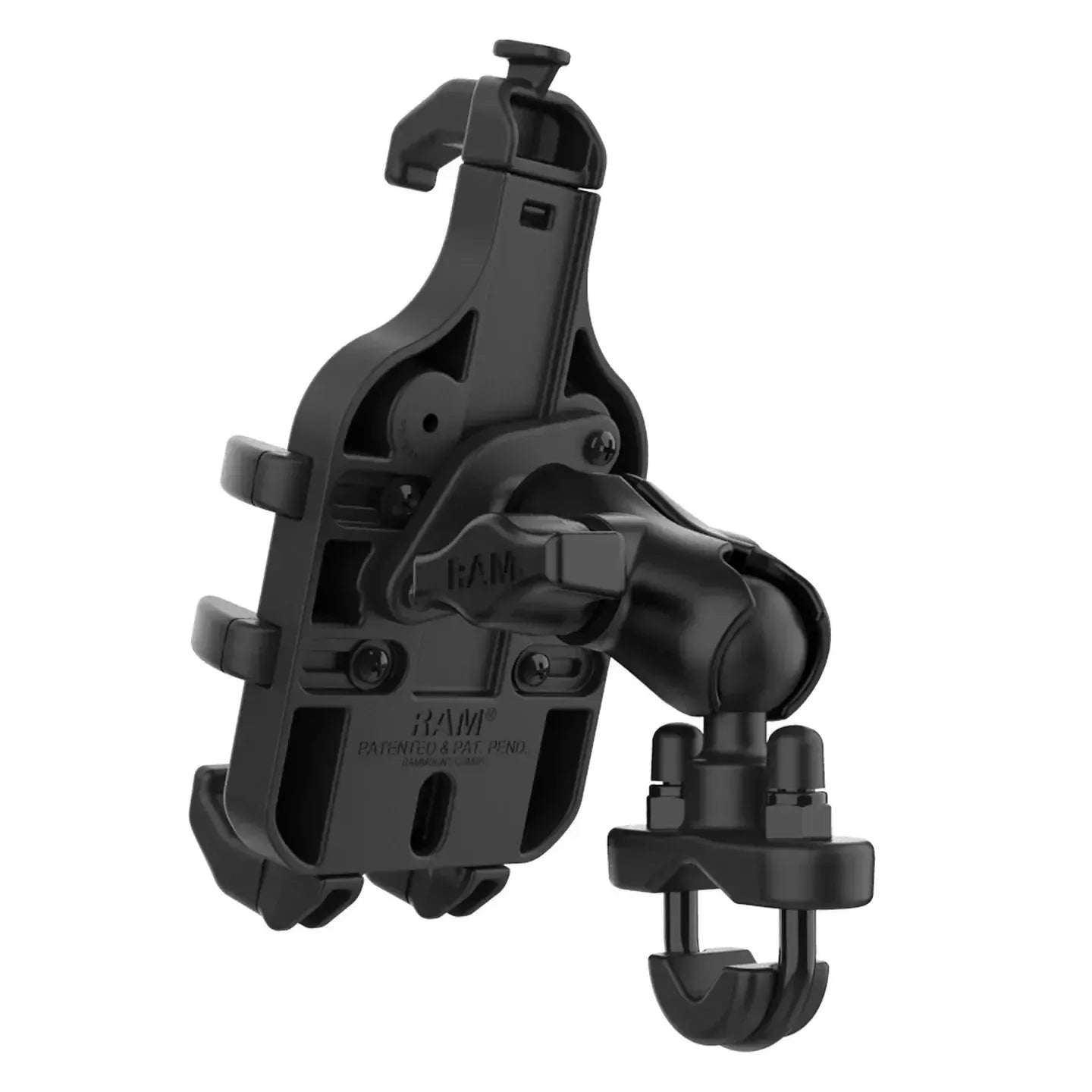

- Includes U-bolt base that accommodates rails from 0.5" to 1.25" in diameter and a short length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Center cavity compatible with Apple MagSafe puck; non-slip cover and puck adhesive included. Also compatible with the RAM charging puck.
- Comes with optional device tether for open cockpit environments
- Made of high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Hardware Included:
-
Assembly Hardware
-
(1) 1/4"-20 U-Bolt for 0.5" - 1" rails
-
(1) 1/4"-20 U-Bolt for 1" - 1.25" rails
-
(2) 1/4"-20 Nylock nuts
-
(2) Rubber caps
-
(1) U-Bolt spacer
Holder Dimensions:
-
Height range: 5.5" - 7.75"
-
Width range: 2.625" - 3.75"
-
Max depth: 0.67"
Clamp Range:
-
0.5" - 1.25" diameter
Socket-to-Socket Length:
-
1.75" (~6cm)
Ball Size:
-
B Size (1")
Weight Capacity:
-
Standard use: 2 lbs
-
Heavy-duty use: 1 lb
Materials:
-
Marine-grade aluminum
-
High-strength composite
Packaging Type:
-
Poly bag
Weight:
-
1.04 lb
Additional Information:
-
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
-
Top hook may block front-facing camera and facial recognition on select phones.
