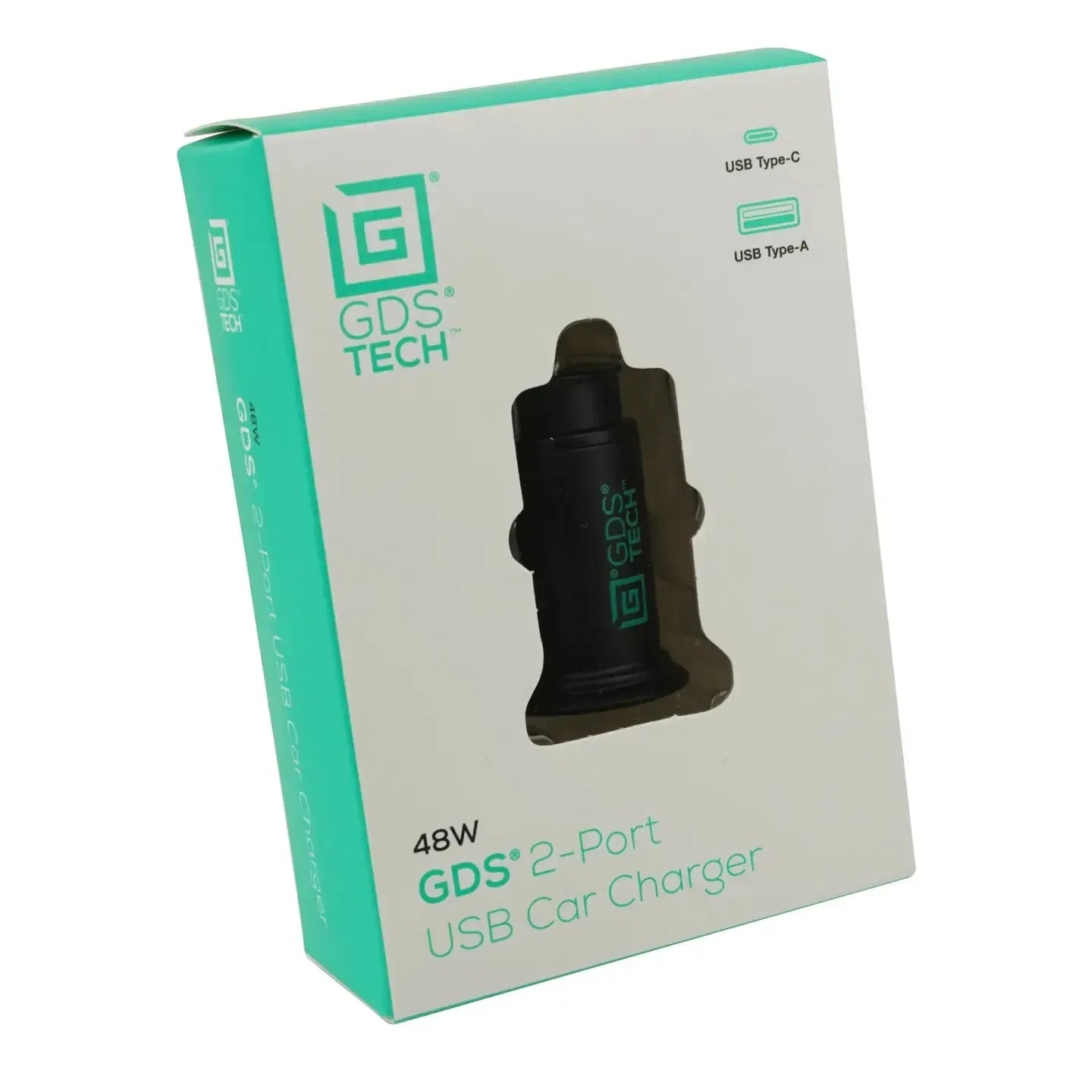

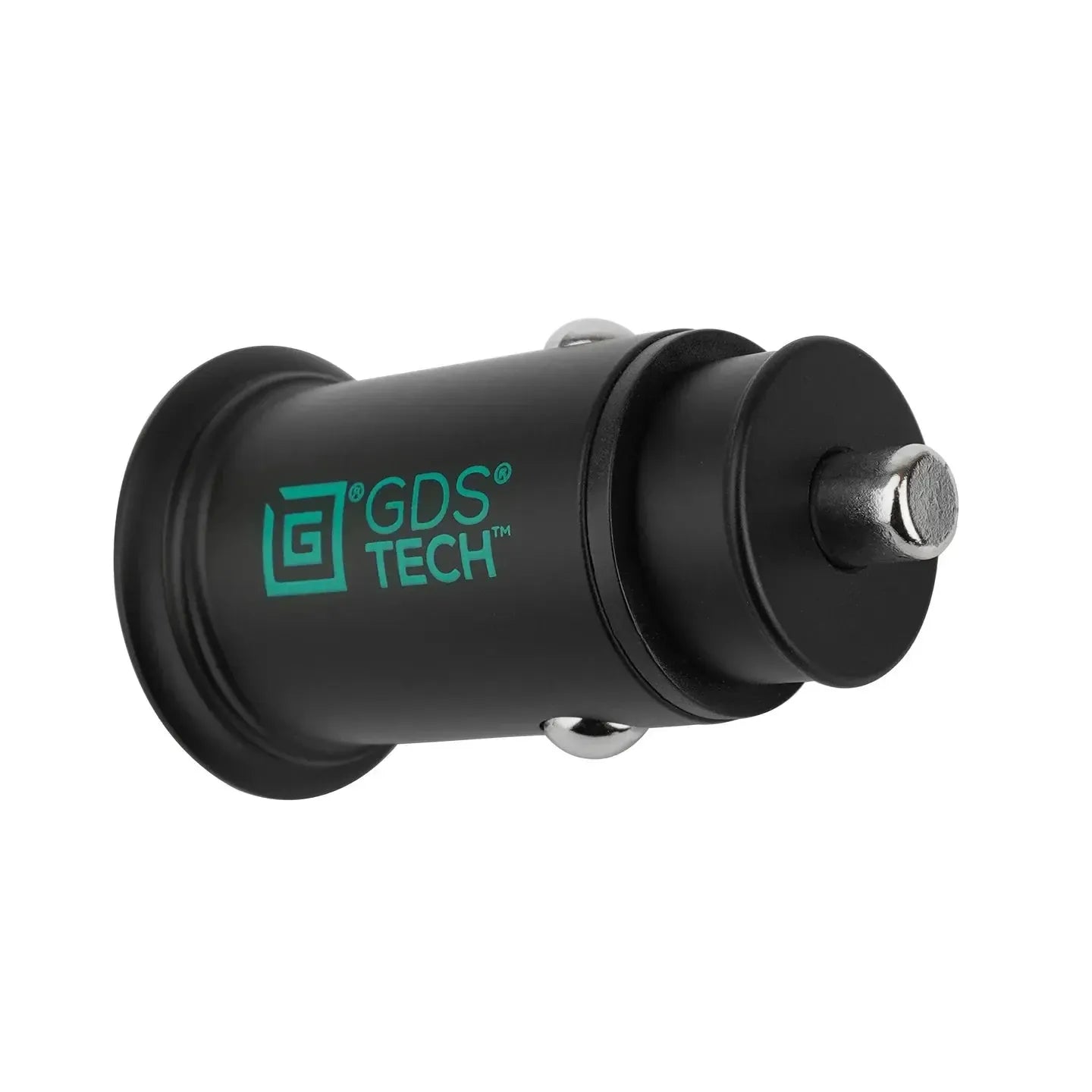

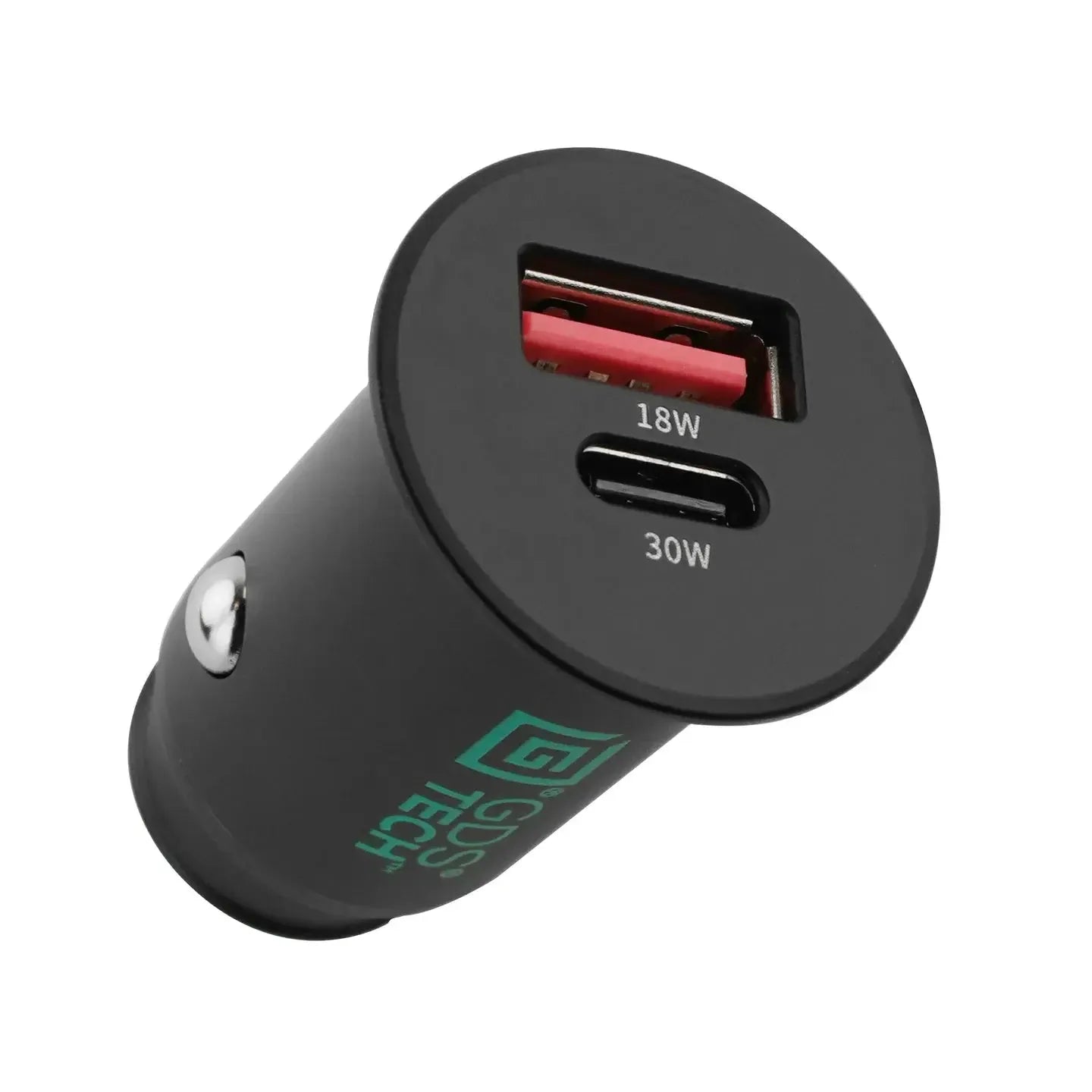

RAM GDS Car Charger USB Type-C and Type A (RAM-GDS-CHARGE-PPS-CIGC)

Included:

• 1 x GDS® Type-C and Type A 2-Port Cigarette Charger (RAM-GDS-CHARGE-PPS-CIGC)

Features

• Two-port GDS^® USB Type-C and USB Type-A cigarette charger
• Total output of 48W max, with 30W output from the USB Type-C port and 18W output from the USB Type-A port
• USB Type-C port utilises full 30W Power Delivery
• USB Type-A port supports Qualcomm^® Quick Charge^™ 3.0 for compatible devices
• Supports PPS and PD3.0 for dynamic PD support
• Low-profile design fits more flush in the vehicle’s charging socket
• Built-in safeguards protect against over-current, over-voltage, over-temperature and short circuit issues
• Backed by a 3-year warranty

Introducing the RAM-GDS-CHARGE-PPS-CIGC. This two-port GDS^® USB Type-C and USB Type-A cigarette charger allows you to charge two devices at the same time from a vehicle charging socket. The USB Type-A port supports Qualcomm^® Quick Charge^™ 3.0 for compatible devices, while the USB Type-C port provides full 30W Power Delivery. The low-profile design fits more flush in the vehicle’s charging socket and supports PPS and PD3.0 for dynamic PD support. Built-in safeguards help protect against over-current, over-voltage, over-temperature and short circuit issues.

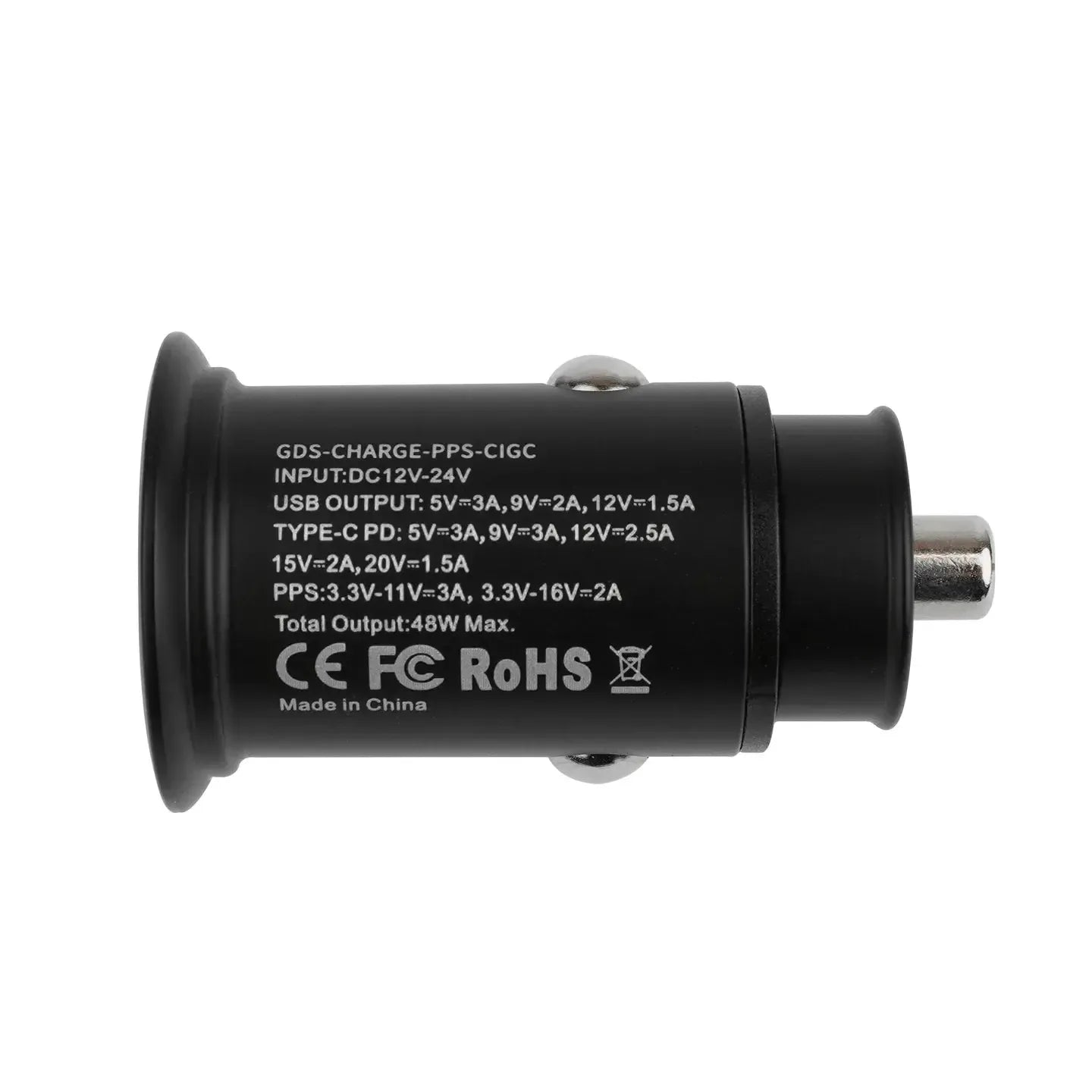

Specifications:

INPUT VOLTAGE
12-24VDC

POWER OUTPUT
48W total
USB Type-C: 30W
USB Type-A: 18W

OUTPUT CURRENT
3A max

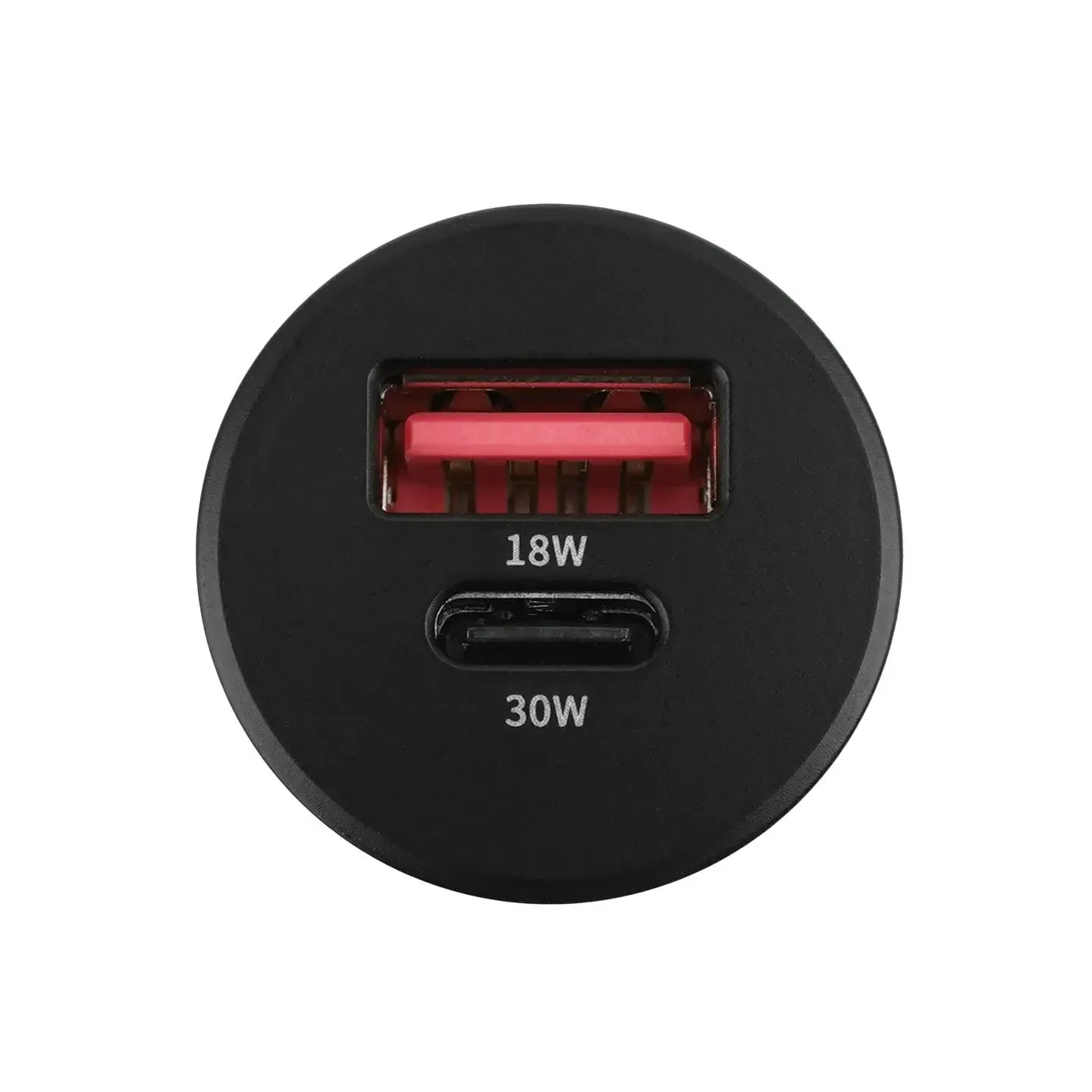

PORTS
(1) Type-C female, PD
(1) Type-A female, QC 3.0

OPERATING TEMPERATURE
-10°C to +50°C

STORAGE TEMPERATURE
-20°C to +70°C

REGULATORY
Short circuit protection
Over-voltage protection
Over-current protection
Over-temperature protection

CERTIFICATIONS
FCC
Industry Canada
CE
RoHS
WEEE

PACKAGING TYPE
Retail box

WARRANTY
3-year warranty

WEIGHT
0.12 lb (0.05 kg)

Help

Can this charger charge two devices at the same time?
Yes. This charger includes one USB Type-C port and one USB Type-A port, allowing two devices to charge simultaneously.

What is the maximum power output?
The charger provides up to 48W total output, with 30W from the USB Type-C port and 18W from the USB Type-A port.

Does the USB-C port support Power Delivery?
Yes. The USB Type-C port supports 30W Power Delivery, as well as PPS and PD3.0.

Does the USB-A port support Quick Charge?
Yes. The USB Type-A port supports Qualcomm^® Quick Charge^™ 3.0 for compatible devices.

Will this work in both 12V and 24V vehicle sockets?
Yes. The input voltage is 12-24VDC.
