RAM-230U

RAM 1.5" Double Ball Adapter C Size (RAM-230U)

Name: RAM 1.5" Double Ball Adapter C Size (RAM-230U)
Brand: Modest Mounts
SKU: RAM-230U
Price: 43.0 AUD
Availability: InStock

.price-ui--loading { display: block !important; opacity: 1 !important; }

$43.00$48.00

Size Guide

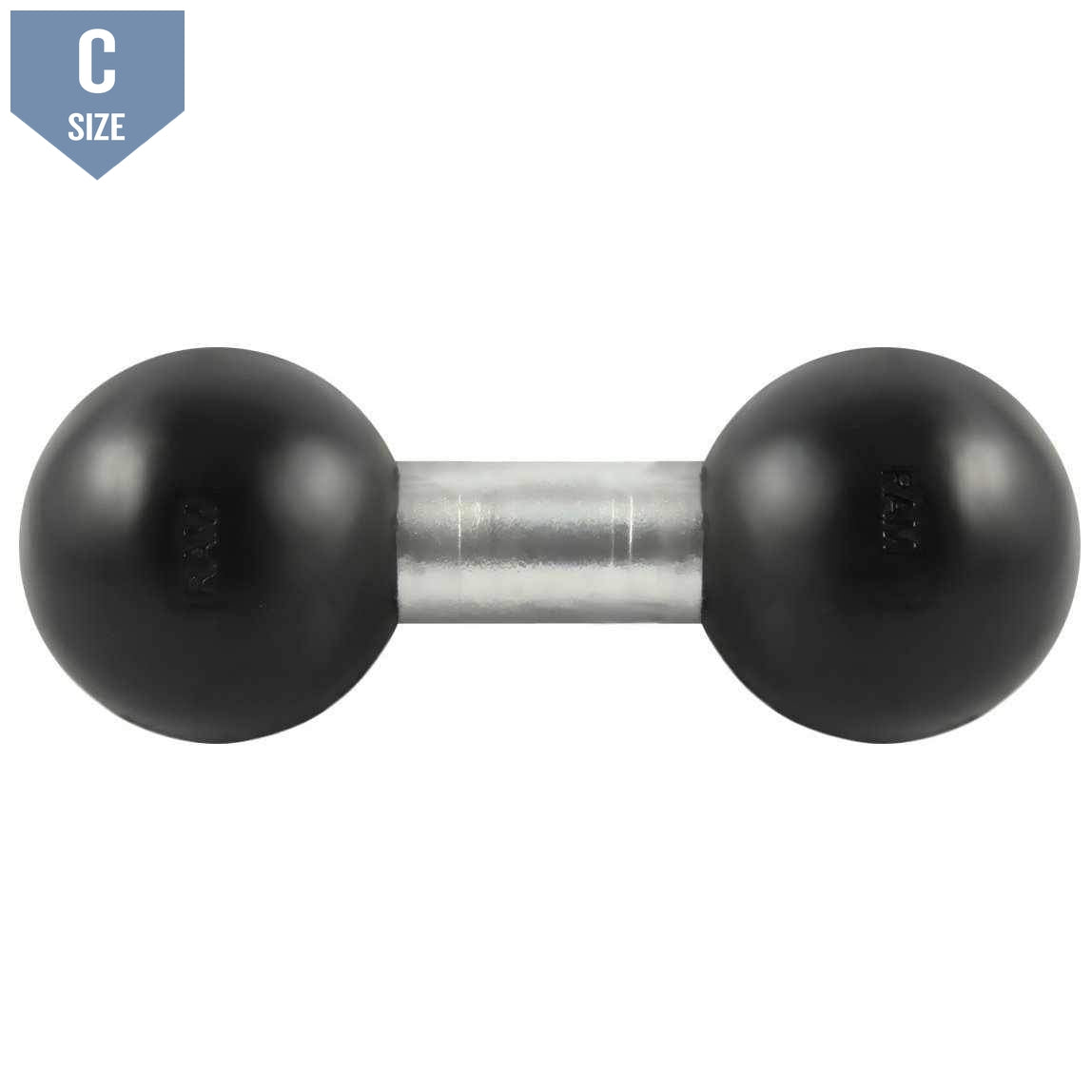

The RAM-230U double ball joiner consists of a 1.5" rubber ball on both ends, allowing you to connect two 1.5" socket arms.

This component is ideal if your current C Sized arm is too short and you're looking to extend its length.

Note: The "U" in the part number reflects product packaged in poly bag.

Ball Sizes		Short Arm	Medium Arm	Long Arm
A Size	Overall Length	N/A	2.11" / 53.6 mm	3.57" / 90.7 mm
A Size	Socket-to-Socket	N/A	1.67" / 42.4 mm	3.12" / 79.3 mm
B Size	Overall Length	2.42" / 61.5 mm	3.73" / 94.7 mm	6.00" / 152.4 mm
B Size	Socket-to-Socket	1.75" / 44.5 mm	3.00" / 76.2 mm	5.31" / 134.9 mm
C Size	Overall Length	3.56" / 90.4 mm	5.69" / 144.5 mm	9.13" / 231.9 mm
C Size	Socket-to-Socket	2.50" / 63.5 mm	4.66" / 118.4 mm	8.00" / 203.2 mm
D Size	Overall Length	5.10" / 129.5 mm	8.44" / 214.4 mm	12.98" / 329.7 mm
D Size	Socket-to-Socket	3.60" / 91.4 mm	6.88" / 174.8 mm	11.41" / 289.8 mm
E Size	Overall Length	7.31" / 185.7 mm	12.63" / 320.8 mm	N/A
E Size	Socket-to-Socket	4.98" / 126.49 mm	9.88" / 251 mm	N/A
