RAM-111U-D

RAM 1.5" Marine Mount w 6.25" X 2" Base & Long Arm (RAM-111U-D)

24 reviews
Size Guide

Included:

  • 1 x RAM 6.25" x 2" Universal Electronics Base with 1.5" Ball (RAM-111BU)
  • 1 x RAM Long Clamp Arm C Size 1.5" (RAM-201U-D)
  • 1 x RAM Round Base with 1.5" C Size Ball (RAM-202U)

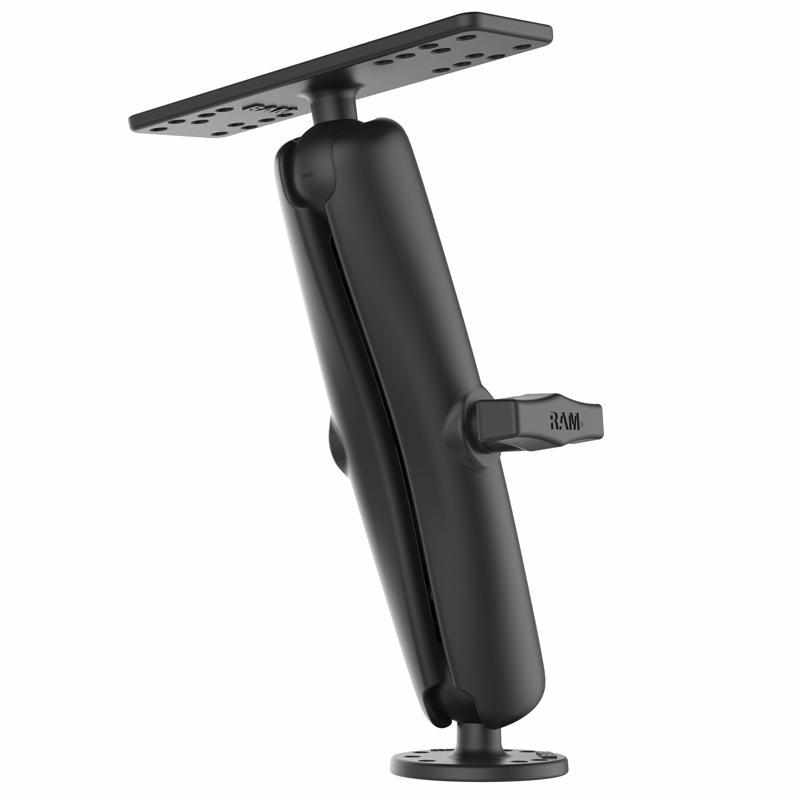

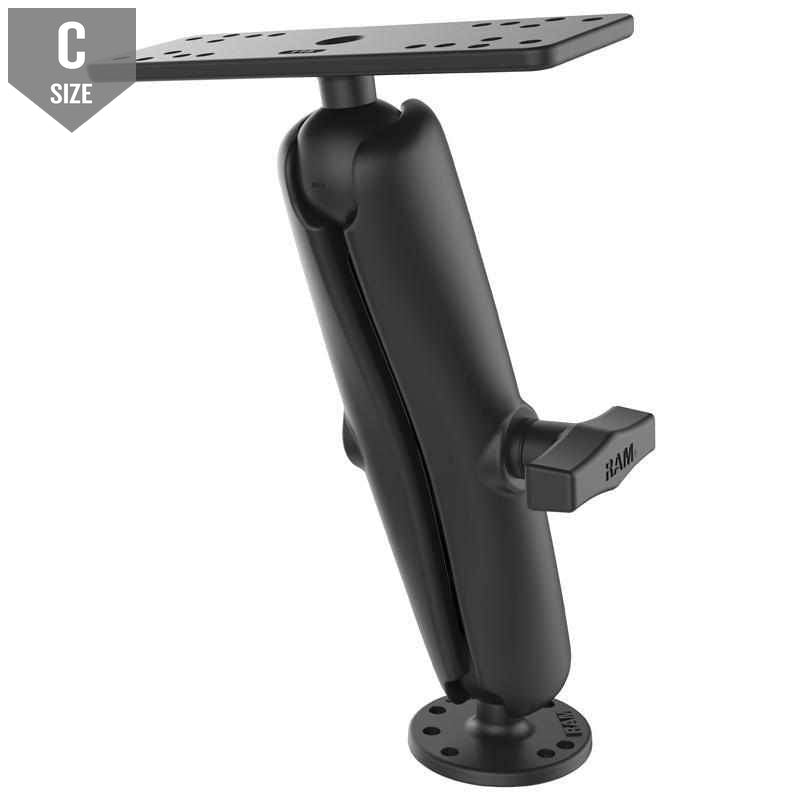

    The RAM-111U-D features a LONG double socket arm (C-Size), a 2.5" diameter round base, and a 6.25" x 2" rectangle base. The round base contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

    Specifications
    • Material: Powder Coated Marine Grade Aluminum
    • Ball Size: C Size 1.5" Rubber Ball
    • Weight: 2.25 lbs.
    • Weight Capacity: 4lbs (or up to 10lbs in light applications)

      Note: The "U" in the part number reflects product packaged in poly bag. The 6.25" x 2" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications, additional holes may need to be drilled for proper fit with your electronic device.

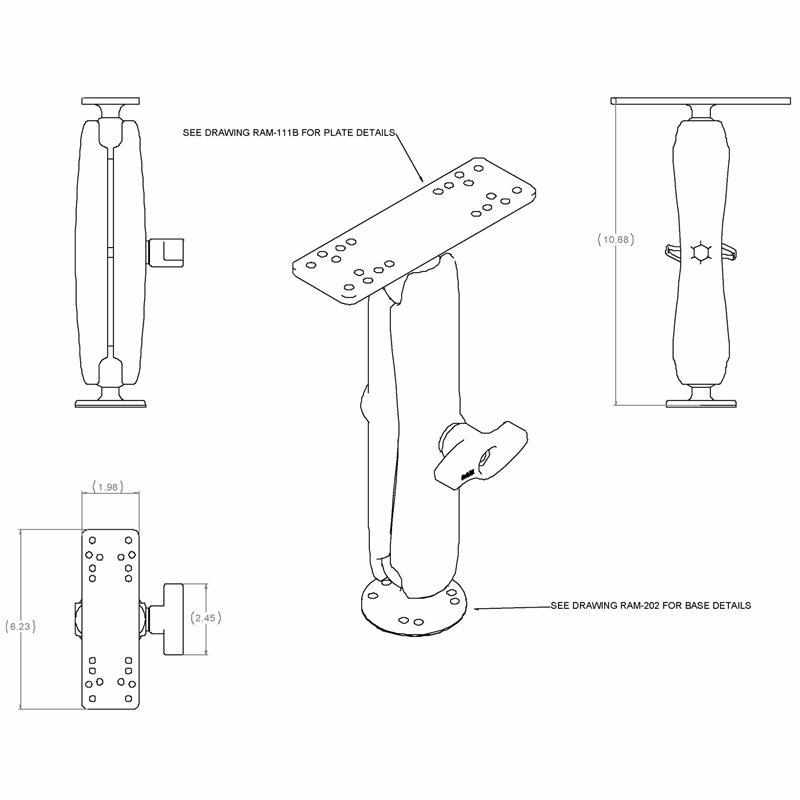

      Plate Hole Patterns (PDF)

      Compatibility
      • Garmin ECHOMAP Plus 72cv
      • Garmin ECHOMAP Plus 73cv
      • Garmin ECHOMAP Plus 74cv
      • Garmin ECHOMAP Plus 75cv
      • Garmin ECHOMAP Plus 77cv
      • Garmin GPSMAP 722
      • Garmin GPSMAP 722xs
      • Garmin GPSMAP 742
      • Garmin GPSMAP 742xs
      • Garmin Striker Plus 5cv
      • Garmin Striker Plus 7cv
      • Garmin Striker Plus 7sv
      • Lowrance HDS Carbon 7
      • Lowrance HDS LIVE 7
      • Lowrance HOOK2-7
      • Lowrance Hook 7 Reveal
      • Lowrance Hook 9 Reveal
      • Garmin Fishfinders and GPS Chartplotters
      • Humminbird Fishfinders and GPS Chartplotters
      • Lowrance Fishfinders and GPS Chartplotters
      • Raymarine Fishfinders and GPS Chartplotters
      Customer Reviews
      5.0 Based on 24 Reviews
      5 ?
      100%
      24
      4 ?
      0%
      0
      3 ?
      0%
      0
      2 ?
      0%
      0
      1 ?
      0%
      0
      Write a Review Ask a Question

      Thank you for submitting a review!

      Your input is very much appreciated. Share it with your friends so they can enjoy it too!

      Filter Reviews:
        GS
        21/11/2021
        Glenn S.
        Australia Australia

        More stable than you’d think

        This c mount is way more stable than I thought it might be. Fine with 9 inch screen in 4.3m tinnie. Allows huge range of motion for better viewing. Small round mount ******* on with self tappers rock solid. Max a great help. Very patient. Great company to deal with. Thanks!

        TE
        12/09/2021
        Troy E.
        Australia Australia

        Solid mount

        Great. Good solid mount for my Garmin chartplotter.

        WS
        30/07/2021
        Wade S.
        Australia Australia

        Good mount

        Works exactly the way I want it to.

        AO
        26/03/2021
        Aidan O.
        Australia Australia

        Ram mounts c ball 6.25x2

        Awesome, bolted on without any adjusting and was extremely straight forward to install on my kayak.

        GF
        20/03/2021
        Greg F.
        Australia Australia

        RAM mount

        Excellent product, very flexible mounting system, well made and appears very robust, easy to install and mount devices to.
