RAM-B-247U-15

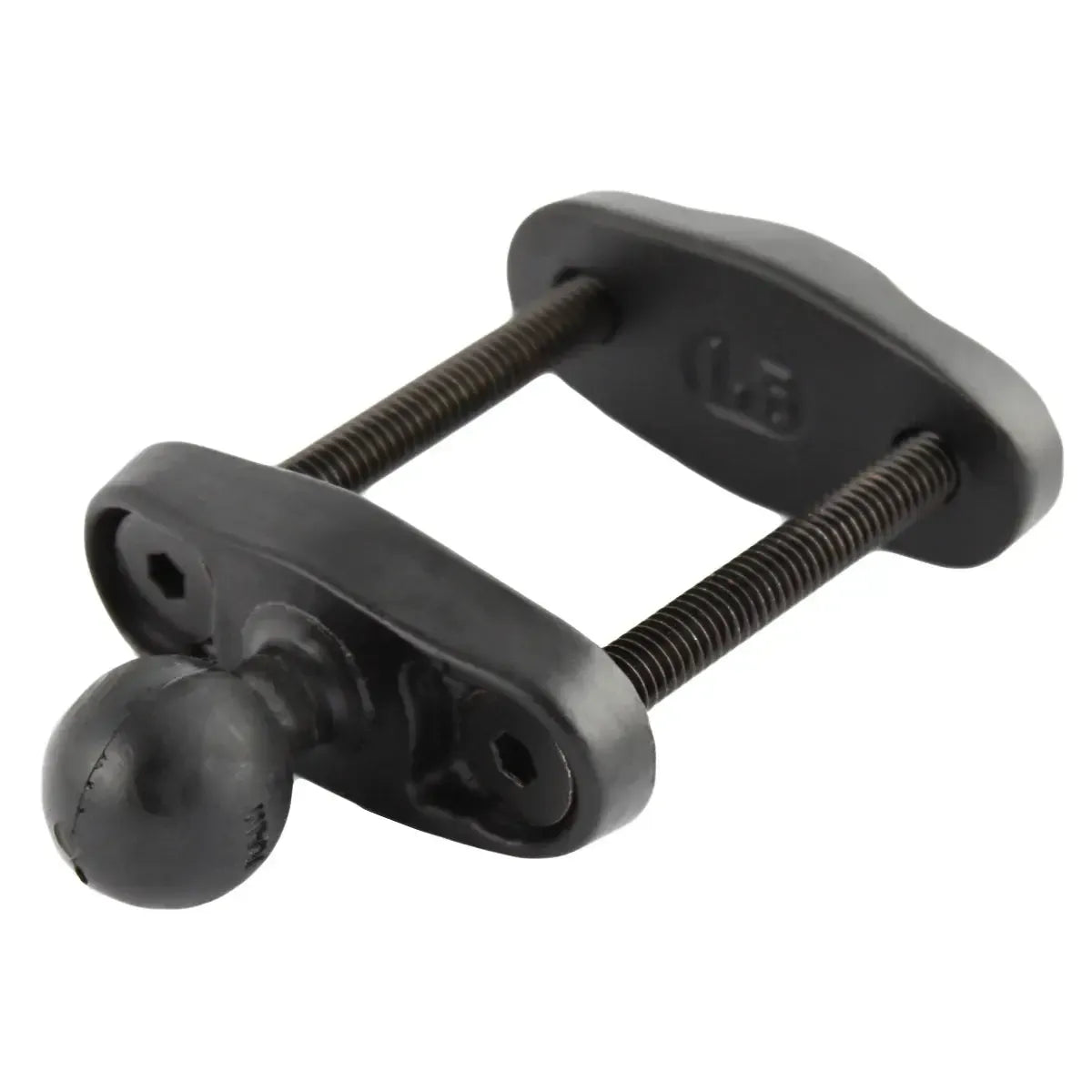

RAM B Size Aluminium Square Rail Clamp 1.5" Width (RAM-B-247U-15)
$79.00$89.00
Size Guide
Included:
- 1 x RAM B Size Aluminium Square Post Clamp Base 1.5" Width (RAM-B-247U-15)
The RAM-B-247U-15 is a clamp base with 1" rubber ball that will connect to square posts up to 1.5" maximum in width.
FEATURES
- Clamping base ideal for square posts up to 1.5" in width
- 1.85" centre-to-centre hole spacing allows for secure installation on compatible square posts and rails
- Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Specifications
- Hardware Included: (2) 5/16"-18 x 3" machine screws and (2) 5/16"-18 nylock nuts
- Clamp Range: 1.5" max width (38.1 mm)
- Hole Spacing: 1.85" centre-to-centre (47 mm)
- Ball Size: B Size 1" rubber ball (25.4 mm)
- Weight Capacity: Standard Use: 2 lbs (0.91 kg); Heavy-Duty Use: 1 lb (0.45 kg)
- Material: Powder-coated marine-grade aluminium
- Packaging Type: Poly bag
- Weight: 0.37 lb (0.17 kg)
Note: The "U" in the part number reflects product packaged in poly bag.
