RAM Vertical Drill-Down Base with 8.5-inch Lower Pole (RAM-VB-184T)

Included:

• 1 x RAM vertical vehicle base (RAM-VB-184)
• 1 x 8.5" lower pole (RAM-VC-PF-85)
• 2 x 1/4"-20 x 3.375" U-bolts
• 4 x 1/4"-20 Nyloc nuts and 4 x 1/4" flat washers

The RAM-VB-184T combines a steel vertical mounting base with an 8.5" lower pole. The supplied U-bolts secure the pole to the bracket. Add a compatible RAM upper pole and device-holder assembly to build your mount.

For installation on a suitable vertical steel box-frame surface, four structural fixings must be selected and supplied by the installer. The upper pole, swing arms, holder and device are not included.

Specifications

• Lower Pole Length: 8.5" (215.9mm)
• Material: Powder-coated steel
• Product Weight: 3.99 lb (approximately 1.81kg)
• Packaging: Box
• Manufacturer Part Number: RAM-VB-184T
• UPC: 793442926280

Compatibility

Designed for compatible RAM upper Tele-Pole assemblies. RAM pairs this base with the RAM-VP-SW1-8 upper pole and swing arms in its complete vehicle mount. This listing is the lower base-and-pole assembly only.

Vehicle structure, available space, full seat travel and the complete supported load must be checked. Tube-frame installations require a separate fit and hardware assessment.

Help

See the official RAM vehicle-base guide. Keep installation clear of airbags, controls and the driver's view. Have a suitable installer choose the mounting position and structural fasteners.

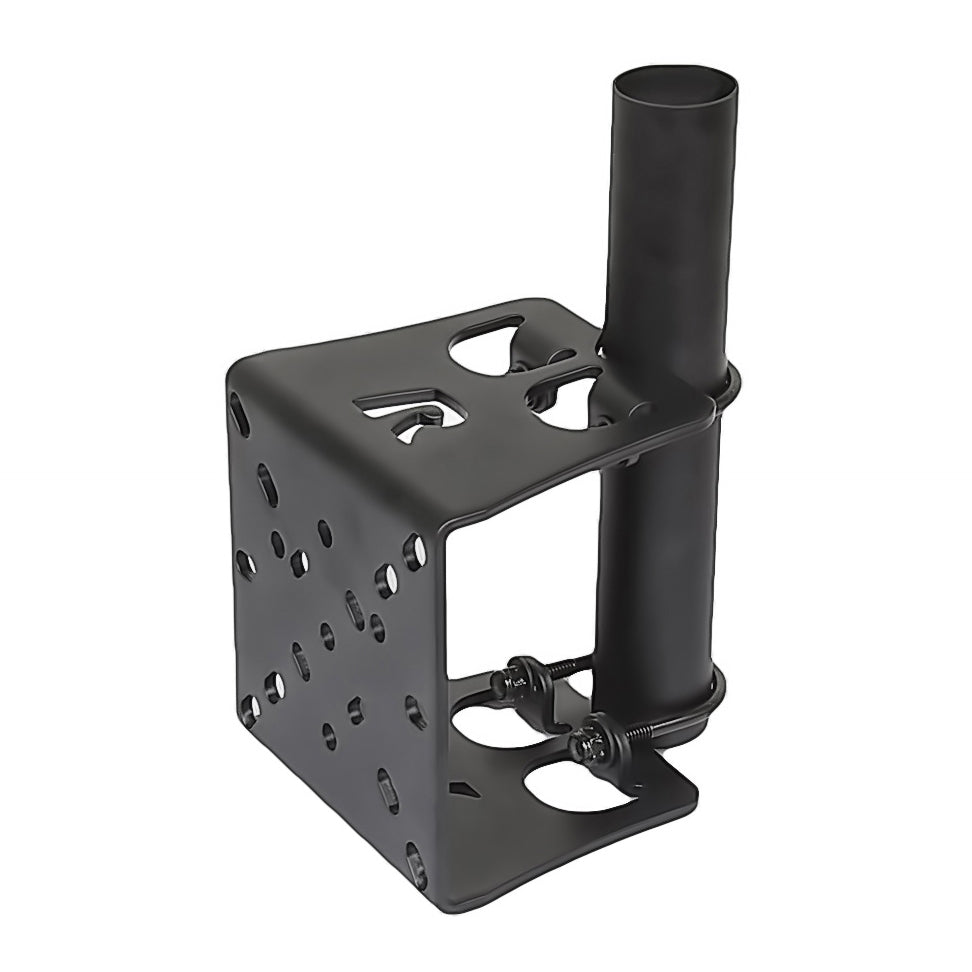

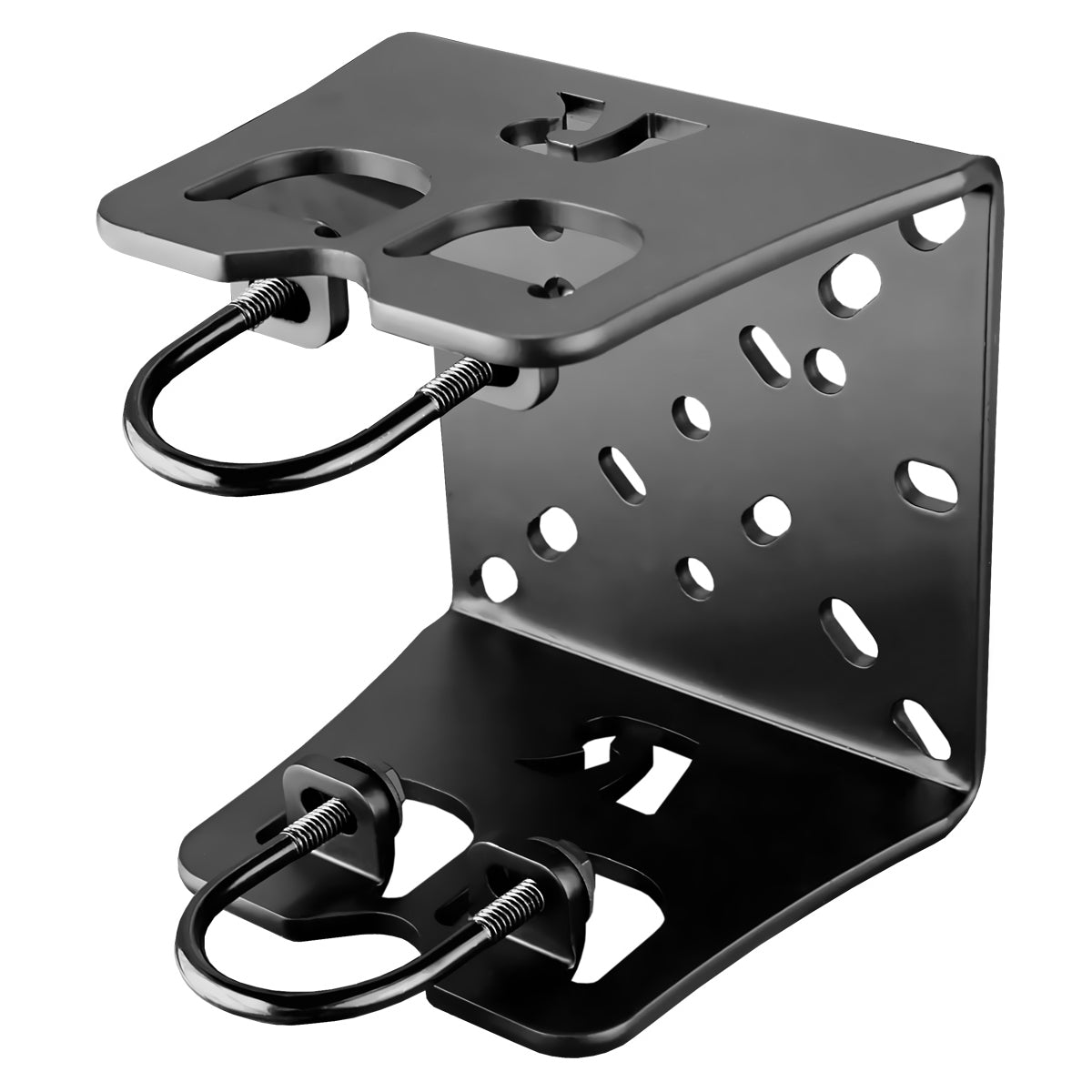

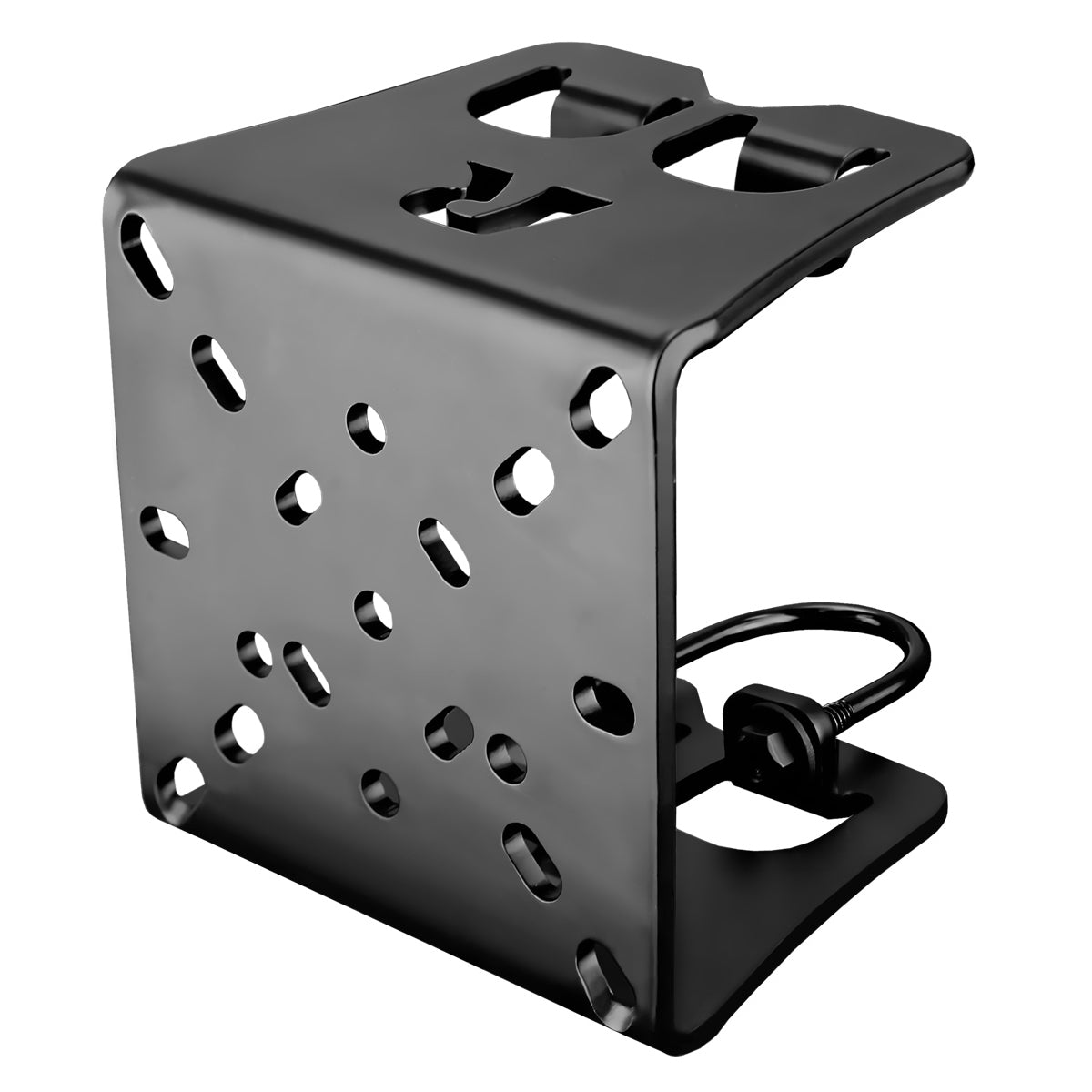

Bracket detail images omit the lower pole; the main image shows the included assembly.
