RAM-B-149Z-A-UN7-462

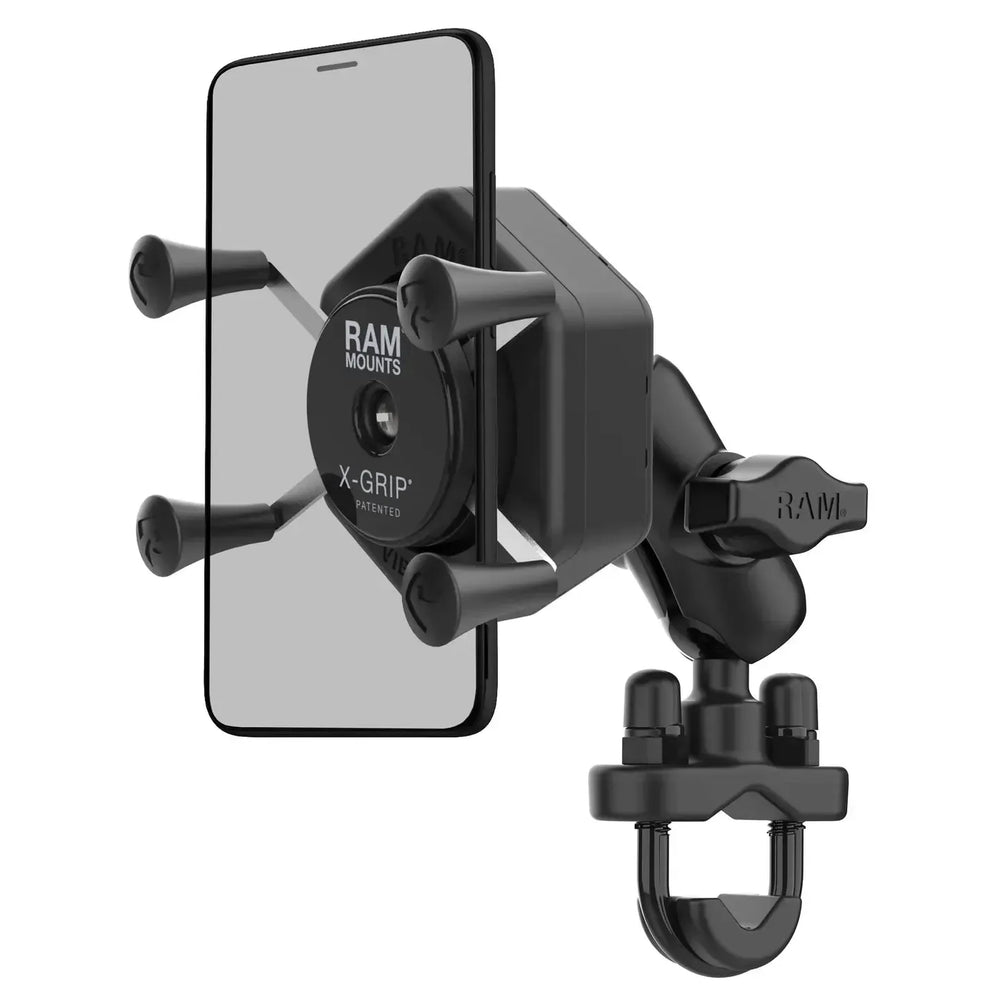

RAM UN7 X-Grip Phone Mount with Vibe-Safe & U-Bolt Short Arm (RAM-B-149Z-A-UN7-462)
$197.00$228.00
Size Guide
Included:
- 1 x RAM UN7 X-Grip with Vibe-Safe and B-Sized Ball (RAM-HOL-UN7B-462)
- 1 x RAM Rail Base with U-Bolt & 1" Ball (RAM-B-231ZU)
- 1 x RAM Short Double Socket Clamp Arm B Size (RAM-B-201U-A)
Features
- RAM® Vibe-Safe™ dampens a wide range of vibration frequencies
- Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
- Unique structure and thoughtfully designed with all industries in mind
- Backed by a lifetime warranty
The RAM-B-149Z-A-UN7-462 combines the trusted RAM UN7 X-Grip Phone Holder with the RAM® Vibe-Safe™, a vibration dampening accessory designed to help protect electronic devices from a wide range of vibration frequencies commonly encountered in rugged environments.
The RAM® X-Grip® holder allows easy rotation between portrait and landscape orientations by loosening the centre screw, giving you flexible viewing angles while keeping your device secure.
Included is a short RAM® B Size double socket arm and a zinc-coated RAM® U-Bolt handlebar base, allowing attachment to handlebars or rails measuring between 0.5" and 1.25" (12.7 mm to 31.75 mm) in diameter. An optional device tether is also included and is recommended for outdoor or high-vibration applications.
The X-Grip® holder is compatible with a wide range of handheld devices that fit within the listed dimensions. When selecting a mount, it is important to verify your device’s overall size with any case, sleeve, or skin installed to ensure proper fit.
UN7 X-Grip Holder Dimensions
Width range: 1.875" to 3.25" (47.6 to 82.6 mm)
Depth range: 0.875" max (22.2 mm)
See 'Compatibility' Tab below for more examples of compatible devices
Specs
Hardware Included
-
(1) Optional tether
-
(1) Glue tube for rubber caps
-
(1) 1/4"-20 U-bolt for 0.5" to 1" rails (12.7 to 25.4 mm)
-
(1) 1/4"-20 U-bolt for 1" to 1.25" rails (25.4 to 31.75 mm)
-
(2) 1/4"-20 nylock nuts
-
(2) Rubber caps
-
(1) U-bolt spacer
UN7 X-Grip Holder Dimensions
-
Width range: 1.875" to 3.25" (47.6 to 82.6 mm)
-
Depth range: 0.875" max (22.2 mm)
U-Bolt Clamp Range
-
0.5" to 1.25" diameter (12.7 to 31.75 mm)
Socket to Socket Length
-
1.75" (44.5 mm)
Ball Size
-
B Size (1" / 25.4 mm)
Weight Capacity
-
Standard use: 2 lb (0.9 kg)
-
Heavy-duty use: 1 lb (0.45 kg)
Materials
-
Marine-grade aluminium
-
High-strength composite
-
Stainless steel
Packaging Type
-
Retail bag
Weight
-
0.97 lb (0.44 kg)
Additional Information
-
A reduction in vibration does not guarantee full device protection. External and immeasurable factors may cause damage to phones, cameras, or other devices while mounted in the RAM® Vibe-Safe™. National Products, Inc. assumes no responsibility or liability for personal injury, death, or property damage. The RAM® Mounts lifetime warranty applies only to RAM® mounts and components and does not cover any device attached to a RAM® mount.
