RAM-HOL-TAB25U
RAM Tab-Tite™ for 10" Tablets with Case + More (RAM-HOL-TAB25U)
$63.00$68.00
Size Guide
Included:
- 1 x RAM Tab-Tite™ for 10" Tablets with Case + More (RAM-HOL-TAB25U)

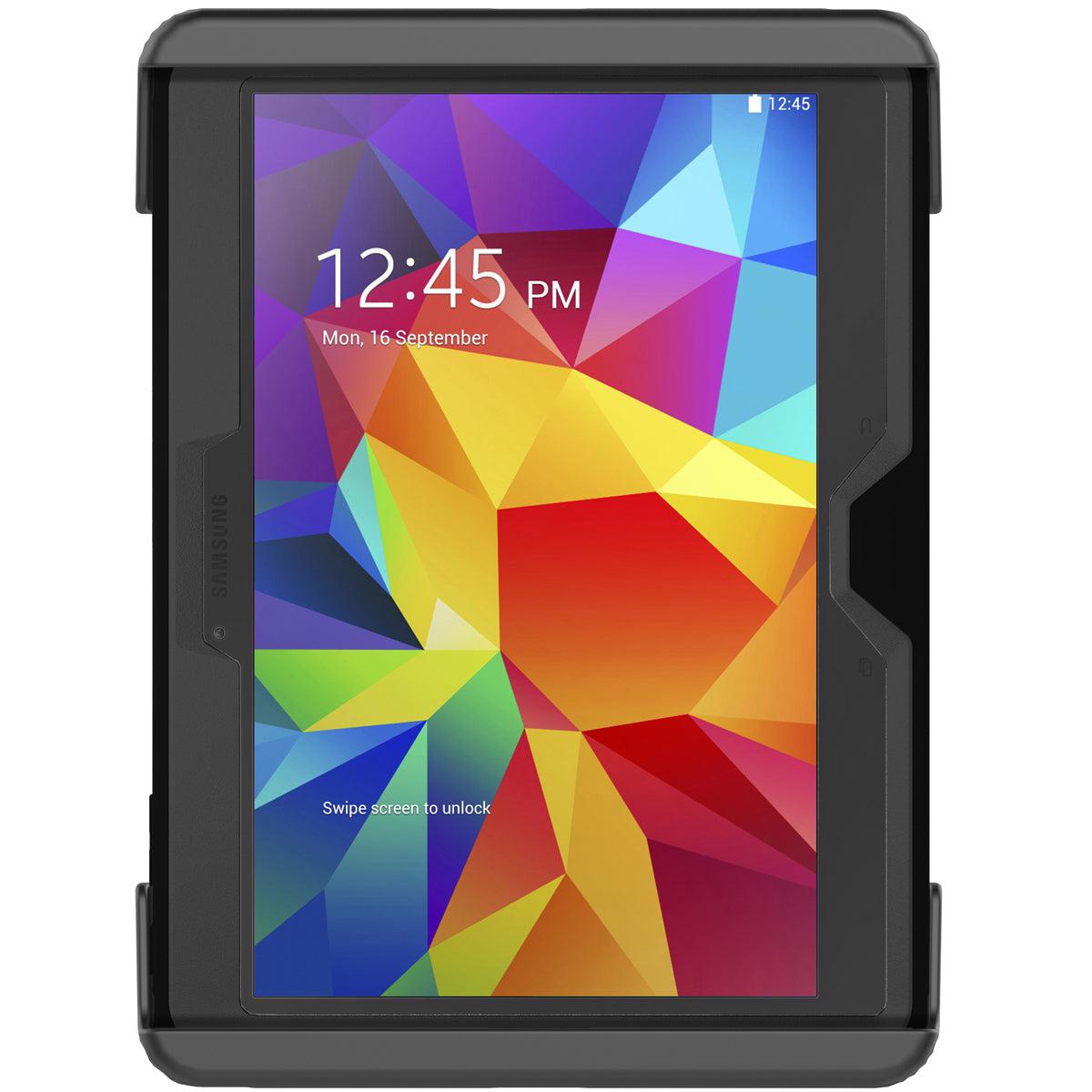

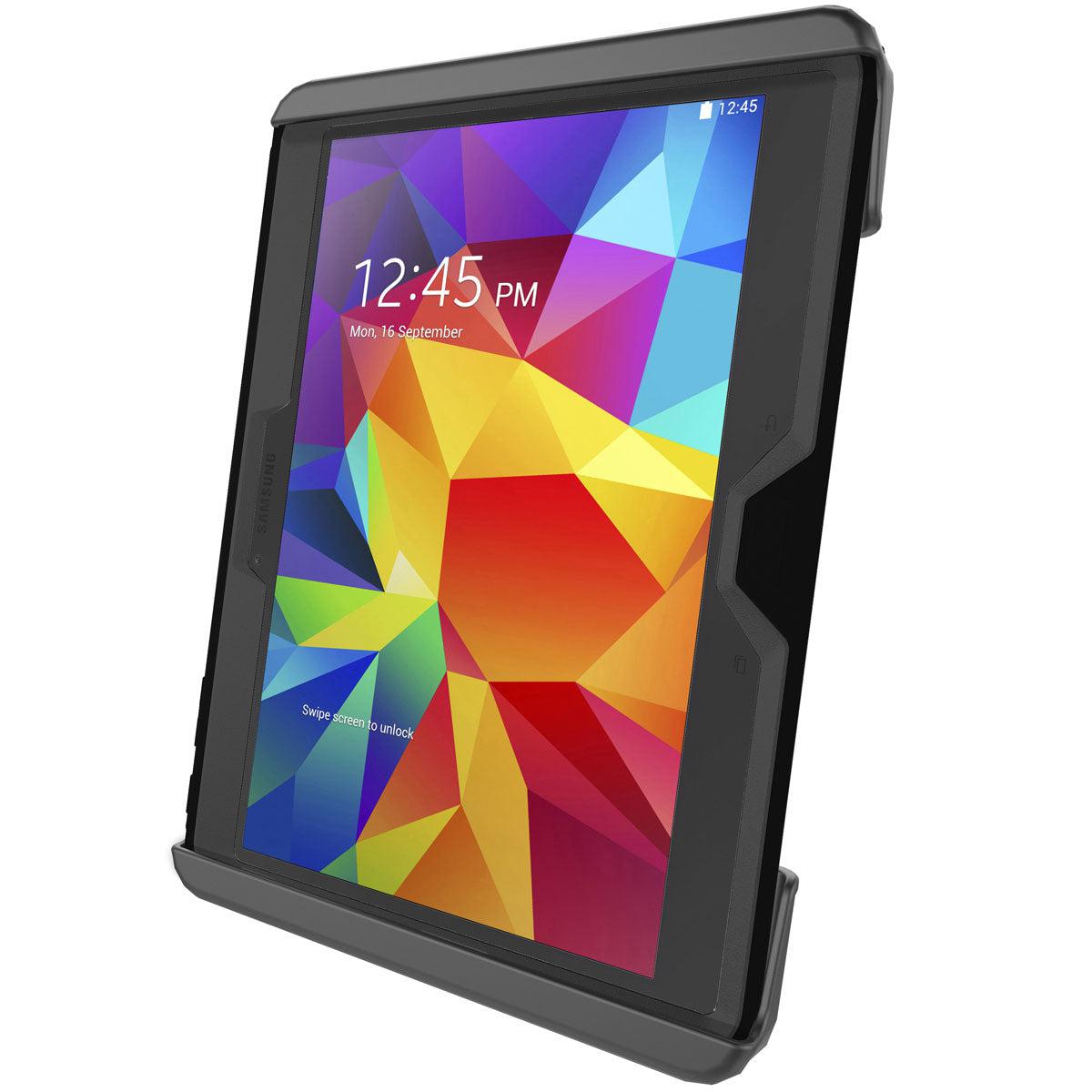

The RAM-HOL-TAB25U is a RAM cradle that offers a secure fit with easy access to the mounted tablet. The interchangeable cup ends are designed specifically for the Samsung Galaxy Tab 4 10.1 and Tab S 10.5 with an Otterbox Defender case, but also support many other tablet models and industrial tablet PC's - See Compatibility below.
The spring loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The custom end cups are designed to optimise the functionality of your tablet, enabling access to all ports and tablet functions.
The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Note: Product consists of holder only. Case not included.
Also included is a set of four nuts and bolts to connect the cradle to any other RAM Mounts component that has the universal AMPs hole pattern (eg. RAM-B-202U or RAM-202U)
Cradle Dimensions:
Height Range: 9.64" - 12.32" (245mm to 313mm)
Width Range: 6.13" - 7.4" (155mm to 188mm)
Depth Range: .13" - .7" (3.3mm to 17.7mm)
Specs
- Lifetime warranty
- Made in U.S.A.
- Material: High Strength Composite
- Support cups contain open slots to accommodate for devices of various sizes, including tablets in protective sleeves
- Back plate can support various size support cups
- Spring loaded tension provides secure support for your tablet
- Spring loaded cradle allows for quick release of your tablet
- Full access to all ports
- High strength materials maximize longevity of cradle
Cradle Dimensions:
Height Range: 9.64" - 12.32" (245mm to 313mm)
Width Range: 6.13" - 7.4" (155mm to 188mm)
Depth Range: .13" - .7" (3.3mm to 17.7mm)

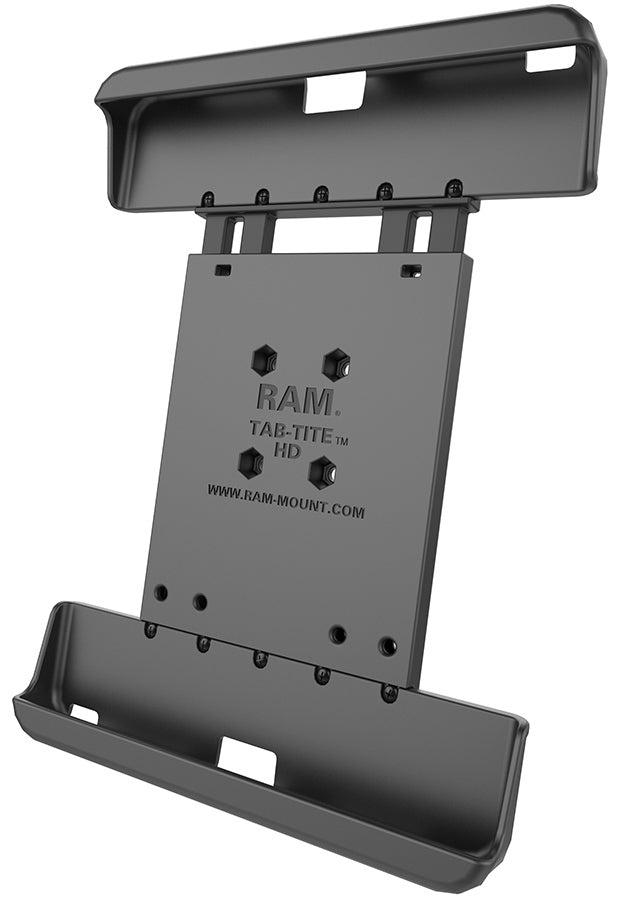

The included back plate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the back plate for support of your new tablet. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.
Compatibility
Examples of compatible devices:
(Double check cradle dimensions if your tablet is in a protective case)
Apple
iPad 10 (2022) without case
iPad 11 (2025) without case
Dell
Venue 11 Pro
HP
Pro Slate 10.1
Lenovo
IdeaTab Lynx K3011
Microsoft
Surface 2
Surface 3
Surface Pro
Surface Pro 2
Samsung
Galaxy Tab 4 10.1 with Case
Galaxy Tab A 10.1 (2019) with Case
Galaxy Tab E 9.6 with Case
Galaxy Tab S 10.5 with Case
Sony
Vaio Tap 11
Zebra
ET50 10"
ET55 10"
-
or any tablet that fits the dimensions below:
Cradle Dimensions:
Height Range: 9.64" - 12.32" (245mm to 313mm)
Width Range: 6.13" - 7.4" (155mm to 188mm)
Depth Range: .13" - .7" (3.3mm to 17.7mm)
It is important to verify the dimensions of your tablet when determining the overall size.
