RAM Suction Mount w X-Grip for 7"-8" Tablets (RAM-B-166-UN8U)

Included:

• 1 x RAM X-Grip Small Tablet Holder w 1" Ball (RAM-HOL-UN8BU)
• 1 x RAM Standard Double Socket Clamp Arm B Size (RAM-B-201U)
• 1 x RAM Suction Cup Base w 1" Ball (RAM-B-224-1U)

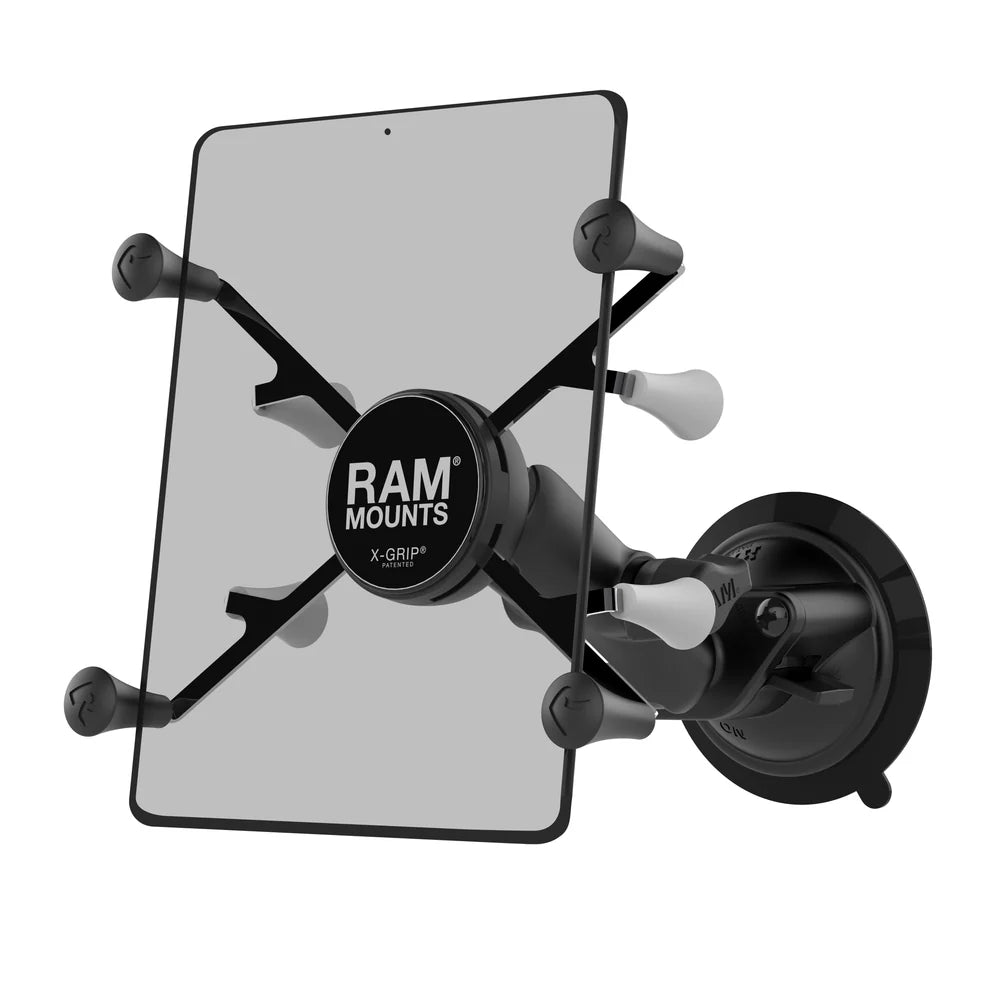

A complete RAM X-Grip UN8 tablet mount with a Twist-Lock suction base and standard-length B size arm. The holder’s built-in 1" ball connects directly to the arm, so no separate cradle adapter is needed.

The spring-loaded X-Grip expands around your tablet, with rubber-tipped grips that leave the screen accessible. Rear grip knobs make it easy to release the tablet. The ball-and-socket joints at both ends of the arm let you adjust the viewing angle.

Tablet and case are not included. The 3.3" (83.8mm) suction base needs a suitable smooth, non-porous glass surface. Check the windscreen shape, viewing position and clearance, and re-check the suction and tablet retention before use.

Cradle Dimensions

• Width Range: 2.5"–5.75" (63.5–146.1mm)
• Maximum Depth: 0.875" (22.2mm)

Measure the tablet with its case, sleeve or skin fitted. The 7"–8" screen-size description is a guide; actual width and depth determine fit. Check that the grips leave buttons and ports accessible.

Specifications

• Holder Hardware Included: 1 x optional tablet tether and 1 x glue tube for the rubber caps, supplied with the UN8 holder
• Ball/Socket Size: B Size, 1" (25.4mm)
• Arm Socket-to-Socket Length: 3" (76.2mm)
• Suction Base: 3.3" (83.8mm) diameter
• Materials: Marine-grade aluminium, high-strength composite and stainless steel
• Weight Capacity: 2 lb (0.91kg) standard use; 1 lb (0.45kg) heavy-duty use. Include the mounted device, case and accessories when checking load.
• Warranty: RAM components are covered by the manufacturer’s limited lifetime warranty terms. Suction-cup rubber is a wear item and is excluded from lifetime warranty coverage.

Packaging may vary; all listed components are genuine RAM.

Help

Use the supplied tether where appropriate, check the arm knob and holder retention, and choose a position that keeps the device secure without obstructing controls or visibility. Suitability depends on the actual installation and load.
