RAM-B-176-A-PD7U
RAM Quick-Grip Pro XL Phone Fork Stem Mount Bundle (RAM-B-176-A-PD7U)
$210.00$249.00You Save 15% ($39.00)
B Size guide
Included:

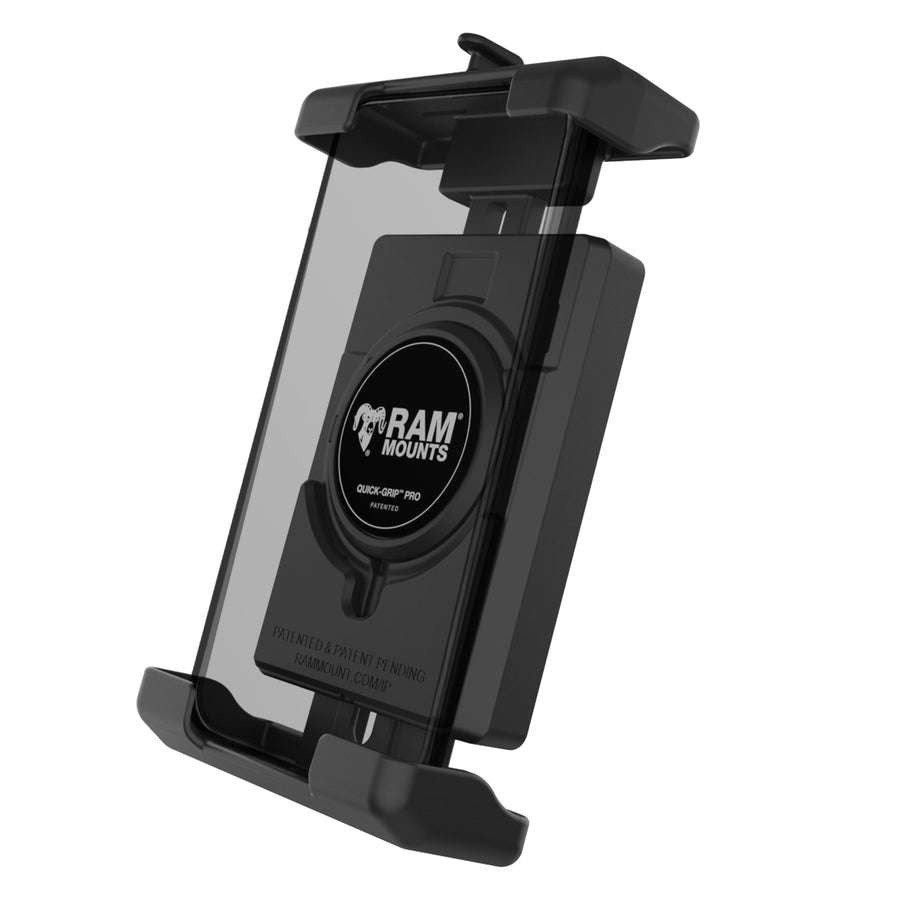

- 1 x RAM Quick-Grip Pro XL Phone Holder (RAM-HOL-PD7U)
- 1 x RAM Diamond Base with 1" B Size Ball (RAM-B-238U)
- 1 x RAM Short Double Socket Clamp Arm B Size (RAM-B-201U-A)
- 1 x RAM Motorcycle Fork Stem Base w 1" Ball (RAM-B-342U)

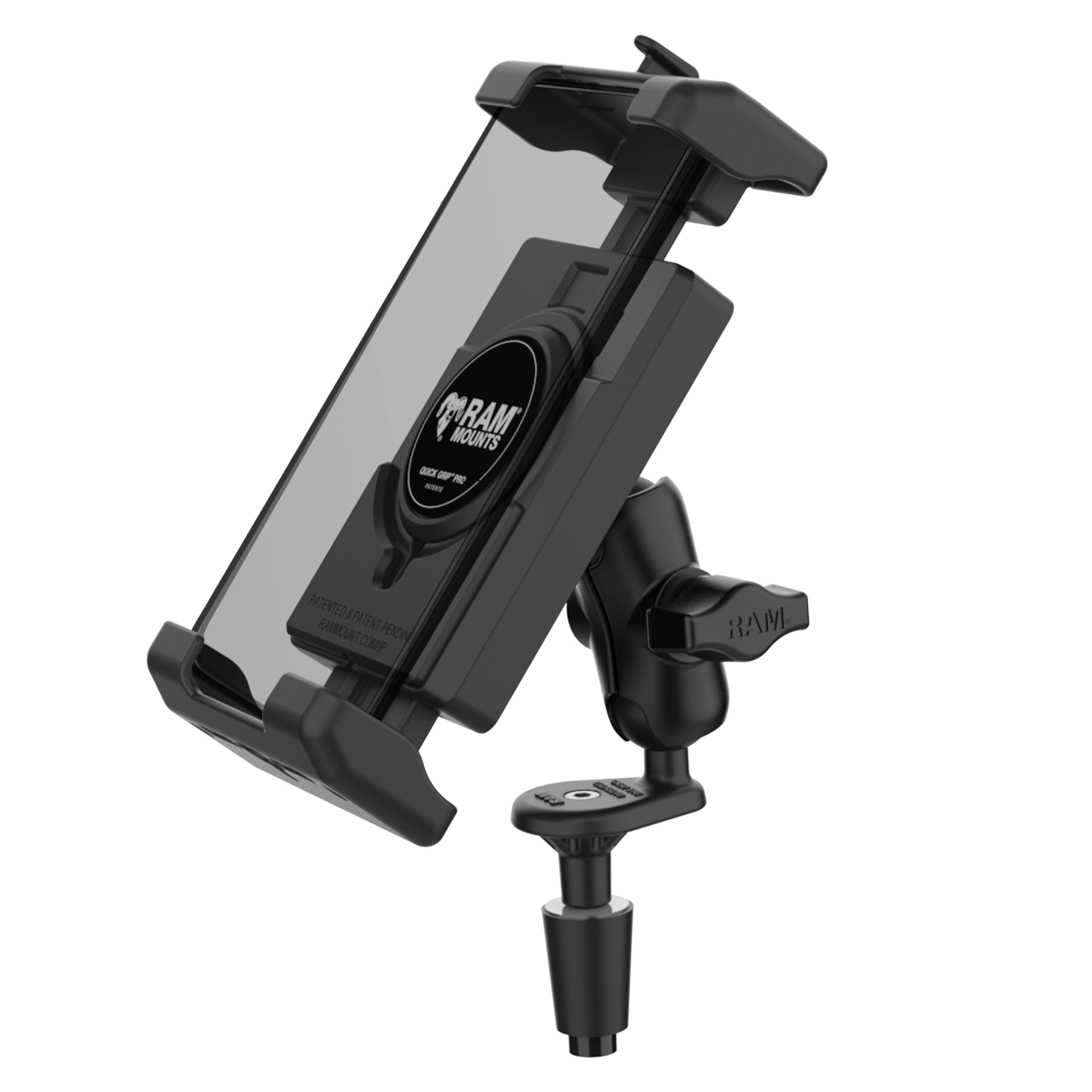

A complete RAM Quick-Grip Pro XL phone mount with a motorcycle fork-stem base and short B size aluminium arm. The included RAM-B-238U diamond adapter attaches to the rear of the bare phone holder and provides the device-side 1-inch ball.
The spring-loaded Quick-Grip Pro XL lets you insert and remove your phone with one hand. Large and small fit shims are included for phones used without a case. The ball-and-socket joints at both ends of the arm let you adjust the viewing angle.
Phone and case are not included. The RAM-B-342U rubber expansion-plug base is designed for cylindrical fork-stem bores nominally 12–38mm in diameter. Measure the actual bore and read the installation instructions before trimming the plug. Check available depth, shape and steering clearance; diameter alone does not confirm fit.
The holder has a cavity for a compatible Apple MagSafe or RAM Qi2 charging puck. The charging puck, cable and power supply are not included; this bundle does not charge a phone by itself.
Cradle Dimensions
- Height Range: 5.375"–7" (136.5–177.8mm)
- Width Range: 2.75"–3.5" (69.8–88.9mm)
- Maximum Depth: 0.75" (19.0mm)
Measure your phone with its case, sleeve or skin fitted. Check that the grips leave buttons, ports and cameras accessible.
Specifications
- Hardware Included: Holder assembly hardware, large and small fit shims, optional phone tether, anti-slip charging-cavity cover and puck adhesive, supplied with the Quick-Grip Pro holder. Fork-stem base includes rubber expansion plug, M5 x 60mm screw, washer sets and brass Nyloc nut.
- Ball/Socket Size: B Size, 1 inch (25.4mm)
- Arm Socket-to-Socket Length: 1.75 inches (44.5mm)
- Materials: Marine-grade aluminium and high-strength composite
- Fork-Stem Base: RAM-B-342U rubber expansion-plug design; nominal 12–38mm cylindrical bore, subject to installation checks
- Weight Capacity: 2 lb (0.91kg) standard use; 1 lb (0.45kg) heavy-duty use. Include phone, case and accessories when checking the mounted load.
- Warranty: RAM components are covered by the manufacturer’s limited lifetime warranty terms.
Packaging may vary; all listed components are genuine RAM.
Help
Check the holder grip, mounting base and arm knob before use. Keep the phone clear of vehicle controls, airbags and your line of sight. Use the supplied tether for open-cockpit applications. This bundle has no dedicated vibration-damping adapter. Engine vibration can affect sensitive phone cameras.
