RAM Powered Cradle Tab Active3 w Hardwire Cables (RAM-HOL-SAM60P-HARU)

Included:

• 1 x RAM® Powered Cradle Tab Active2 Active3 w Hardwire Cables (RAM-HOL-SAM60P-HARU)

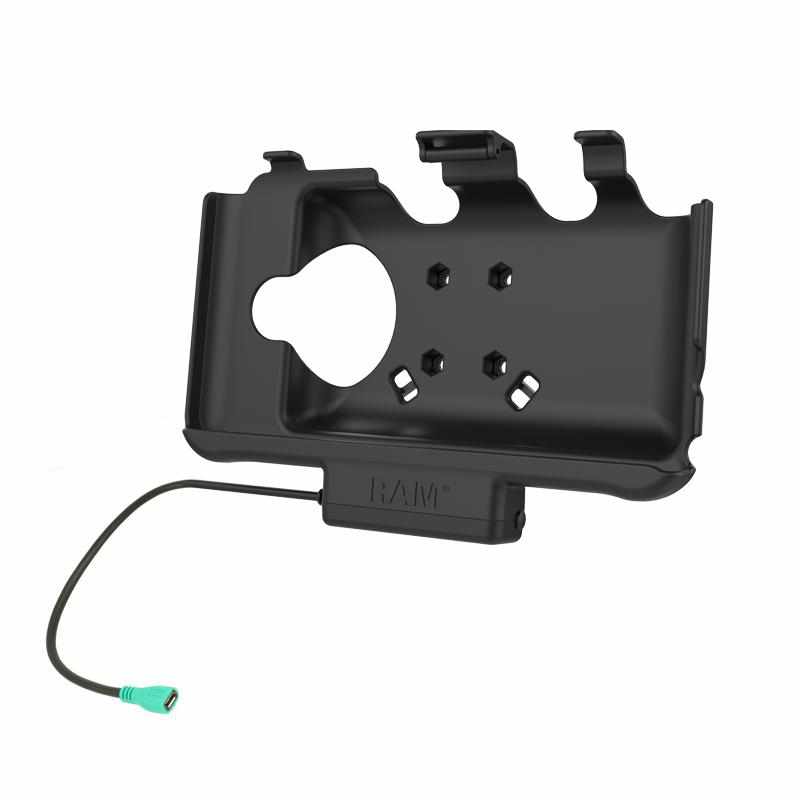

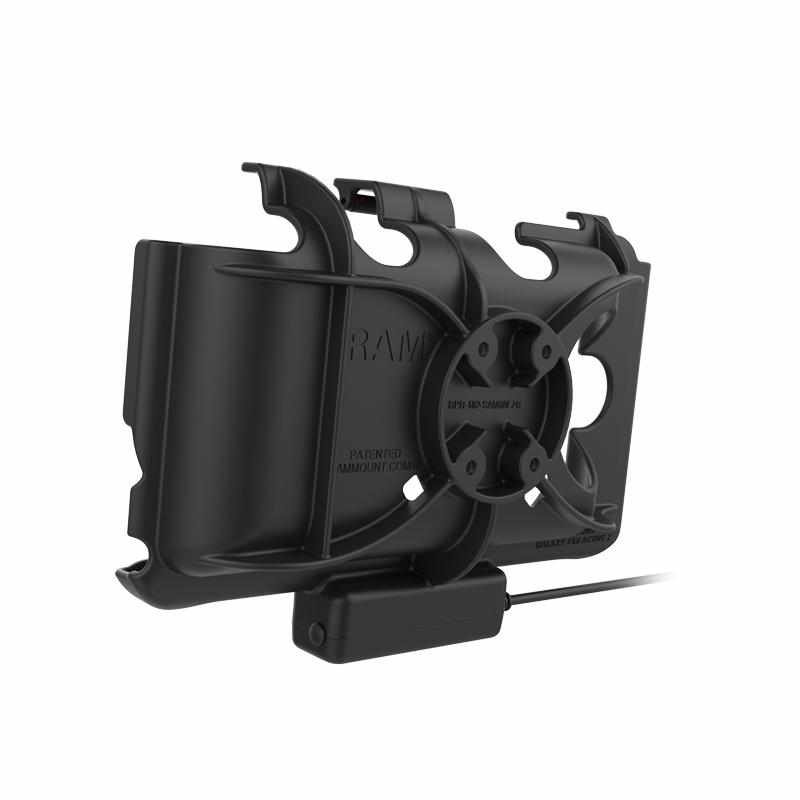

This powered cradle for the Samsung Tab Active3 and Tab Active2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more.

Power capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode.

This cradle is also compatible with the RAM Skin or factory device skin, as well as GDS Hand-Stand and shoulder strap accessories. Access to the stylus remains while the device is docked.

INCLUDED:

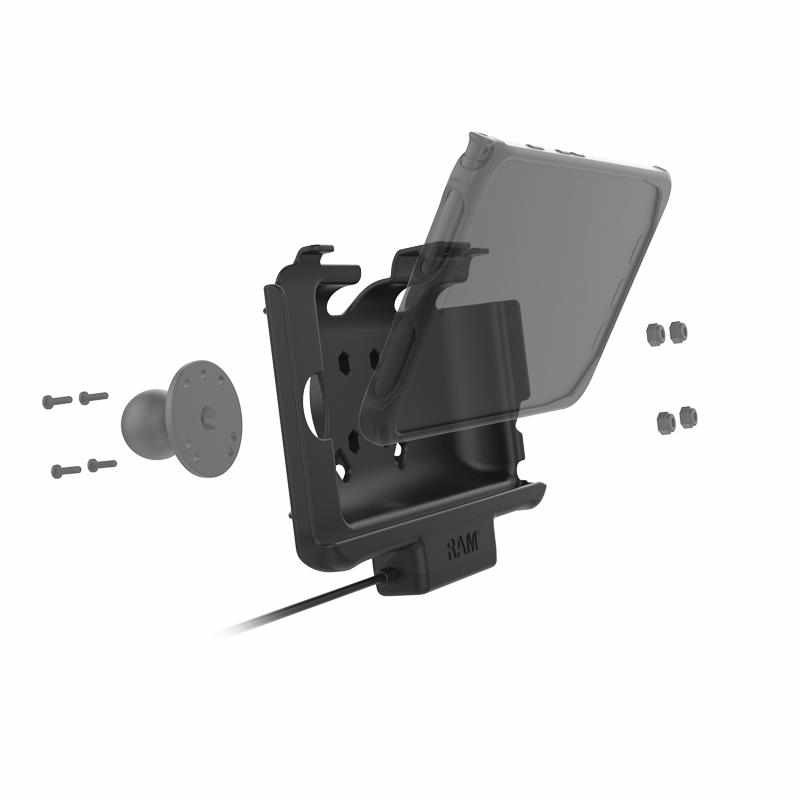

Included is a set of four nuts and bolts to connect the cradle to any RAM components containing the universal AMPS hole pattern.

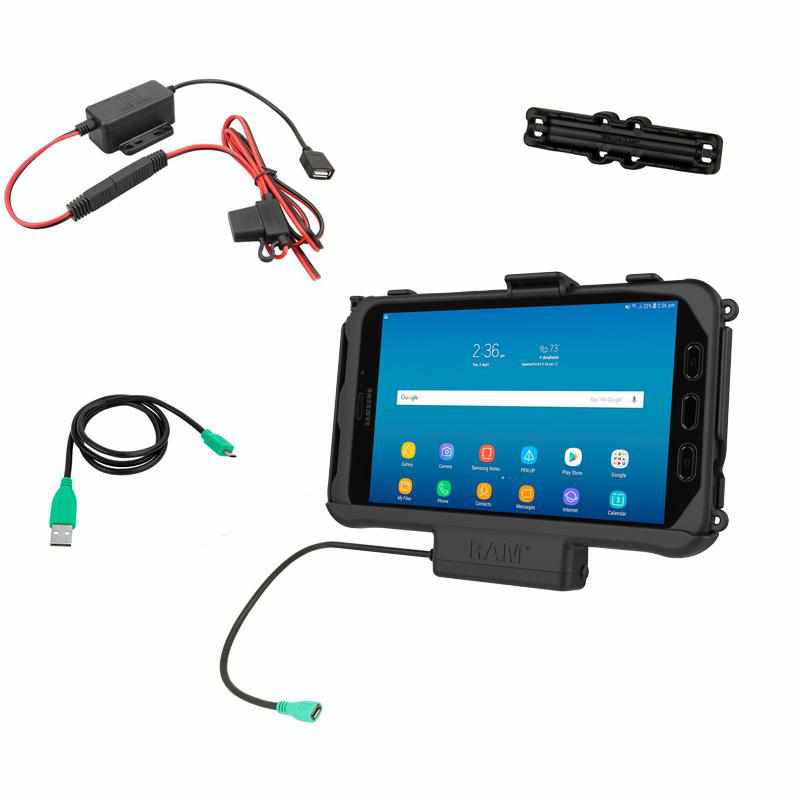

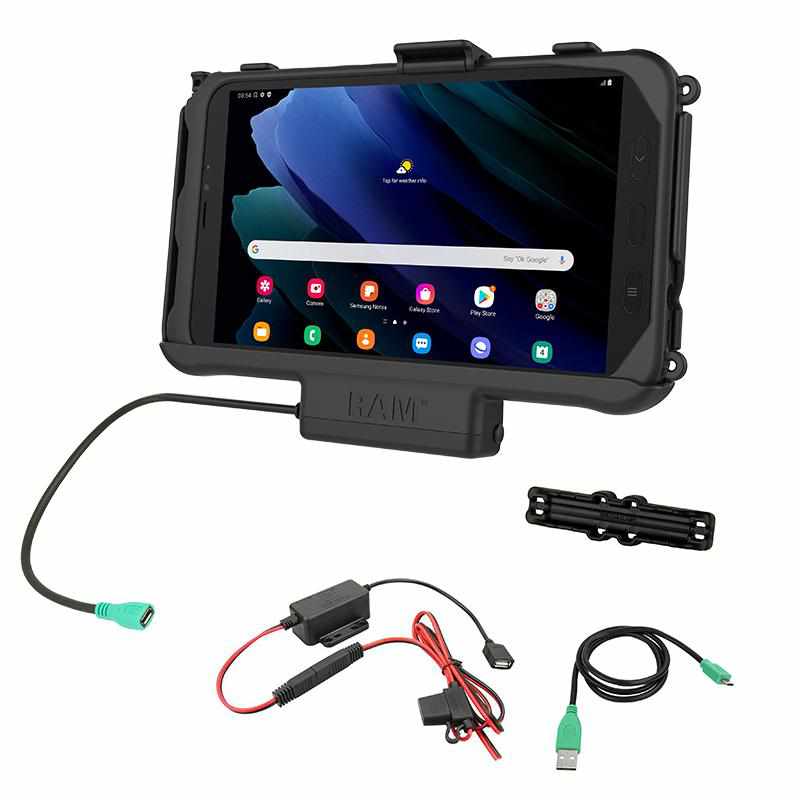

Also included is the mUSB female pigtail, GDS USB 2.0 cable, cable clamp with zip ties, and a vehicle hardwire charger.

Specs

PRODUCT DIMENSIONS
Width: 9.24"
Height: 6.34"
Depth: 2.57"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

INPUT VOLTAGE
4.4VDC - 5.4VDC (USB power source dependent)

OUTPUT VOLTAGE
4.4VDC - 5.4VDC (USB power source dependent)

INPUT CONNECTOR
mUSB Female

WEIGHT
0.814 lbs.

WARRANTY STATUS
3 year warranty

ADDITIONAL INFORMATION
* This product will not support IntelliSkin®.
* Mount using a round ball base (RAM-202U recommended)
* Device speakers and mics exposed
* Device headphone jack exposed
* Zip tie locations for cable retention
* Includes mUSB male to Type-A male cable and cable clamp with zip ties
* mUSB female pigtail for power

Compatibility

• Samsung Tab Active3
• Samsung Tab Active2
