RAM-316-3-202U
This is a no-drill vehicle floor mount that is for heavier devices, such as laptops, and is designed to be used with the RAM-234-3 :: RAM Universal Laptop Tough-Tray Holder.

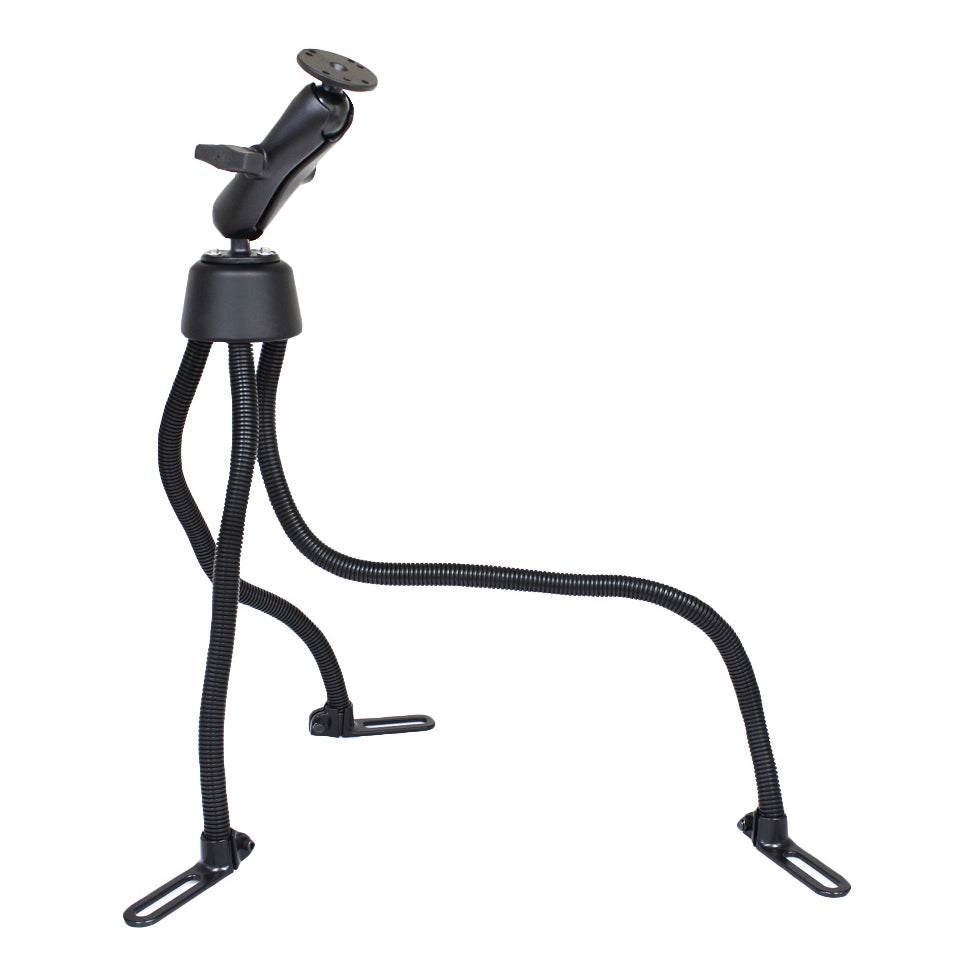

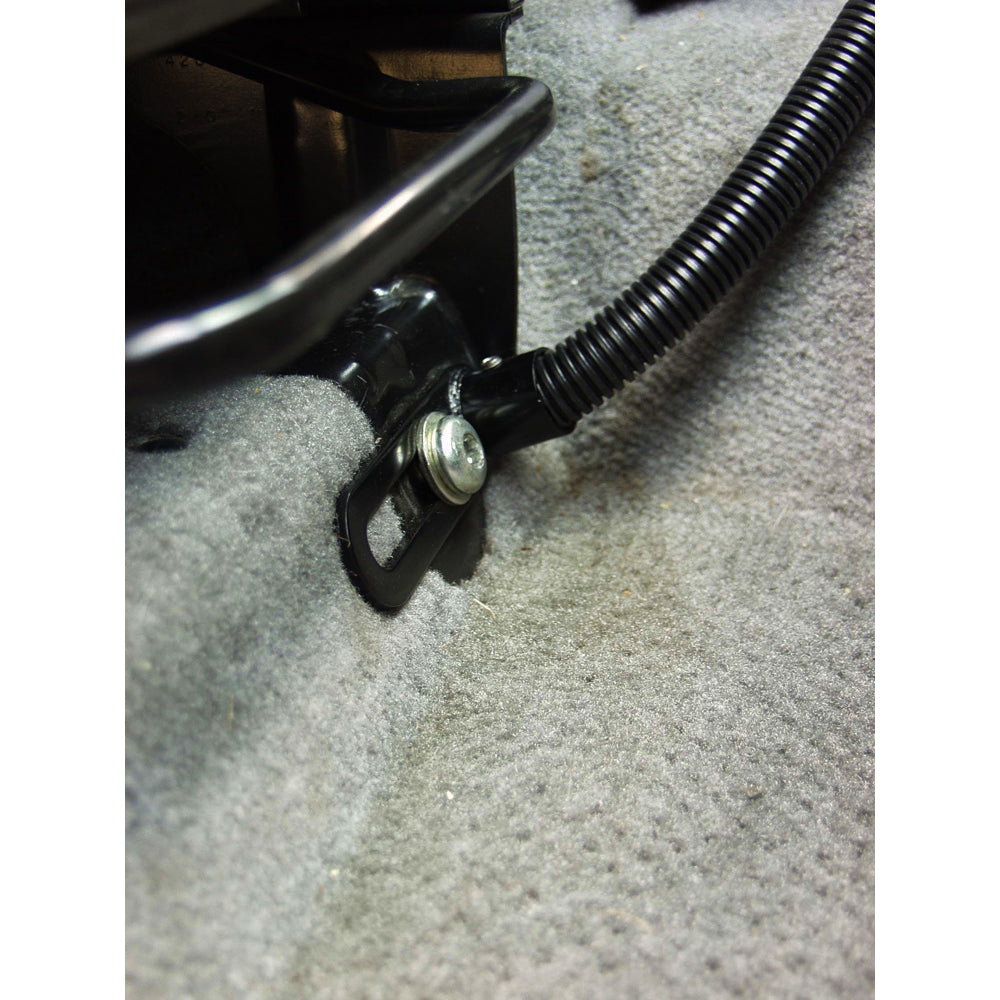

It consists of the RAM POD III No-Drill™ vehicle base, three rigid aluminium rod legs, a double socket arm and two 2.5" round bases that contain the universal AMPs hole pattern. The base of the mount connects to your seat rail without any drilling, and the rigid aluminium rod legs can be bent to any position/angle.
It also includes a 1.5" diameter patented rubber ball and socket mount that has adjustment points at both ends of the double socket arm, giving you almost unlimited angles. This round base will connect to the RAM-234-3 or RAM-234-6 and any other RAM tablet holder.
Installation Instructions (PDF)
Note: The "U" in the part number reflects product packaged in poly bag.
For lighter devices (eg. iPad) you should be fine with the single rod version of this product: RAM-B-316-1-202U :: RAM POD I No-Drill Vehicle Mount With 18" Aluminium Rod.
Thank you for submitting a review!
Your input is very much appreciated. Share it with your friends so they can enjoy it too!
Here at Modest Mounts we strive to process all orders received before 12:00pm AEDT on the same business day we receive them.
We currently offer the following domestic freight options*:
Our choice of courier service depends on the particular route/destination of your delivery, however the majority of all orders are sent with Australia Post, Startrack Premium, StarTrack Express & Sendle.
Note: Postage fee may be a little higher for some of the heavy or large items.
Read more on our Shipping & Delivery
Within 30 days of your purchase, we will happily accept returned items for refund or a replacement providing they are in re-saleable condition. To initiate a return, send us an email at info@modestmounts.com.au - DO NOT send items back to our office address.
Full information available here.
Yes. RAM Mounts come with a lifetime warranty.
Please visit http://www.rammount.com/warranty for all information.
Sign up to get the latest on sales, new releases and more …
Ball Sizes | Short Arm | Medium Arm | Long Arm | |
---|---|---|---|---|
A Size | Overall Length | N/A | 2.11" / 53.6 mm | 3.57" / 90.7 mm |
Socket-to-Socket | N/A | 1.67" / 42.4 mm | 3.12" / 79.3 mm | |
B Size |
Overall Length | 2.42" / 61.5 mm | 3.73" / 94.7 mm | 6.00" / 152.4 mm |
Socket-to-Socket | 1.75" / 44.5 mm | 3.00" / 76.2 mm | 5.31" / 134.9 mm | |
C Size | Overall Length | 3.56" / 90.4 mm | 5.69" / 144.5 mm | 9.13" / 231.9 mm |
Socket-to-Socket | 2.50" / 63.5 mm | 4.66" / 118.4 mm | 8.00" / 203.2 mm | |
D Size | Overall Length | 5.10" / 129.5 mm | 8.44" / 214.4 mm | 12.98" / 329.7 mm |
Socket-to-Socket | 3.60" / 91.4 mm | 6.88" / 174.8 mm | 11.41" / 289.8 mm | |
E Size | Overall Length | 7.31" / 185.7 mm | 12.63" / 320.8 mm | N/A |
Socket-to-Socket | 4.98" / 126.49 mm | 9.88" / 251 mm | N/A |
