RAM Pin-Lock Security Knob for Gimbal Brackets (RAP-S-KNOBGU)

Included:

• 1 x RAM Pin-Lock Security Knob for Gimbal Brackets (RAP-S-KNOBGU)
• 1 x Matching Pin-Lock security key
• 6 x Threaded stud adapters, one of each size listed below
• 5 x Nylon washers

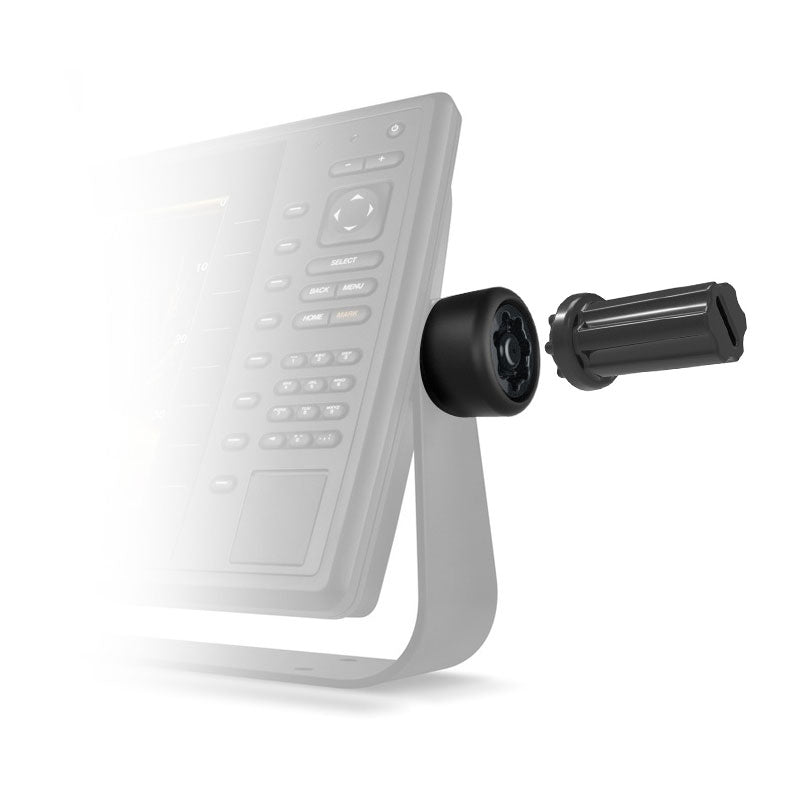

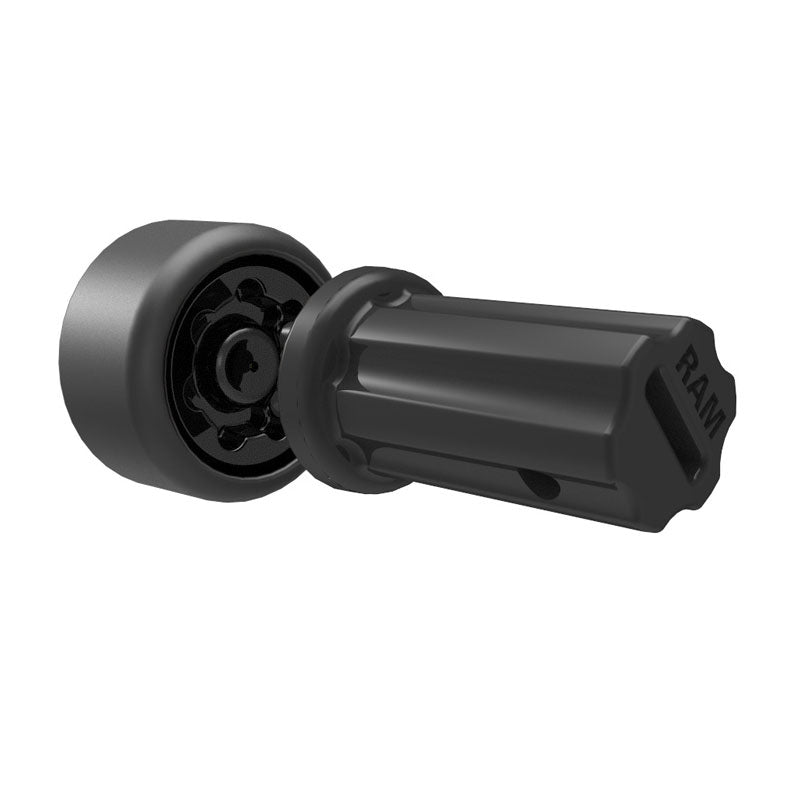

The RAP-S-KNOBGU replaces a compatible marine-electronics gimbal knob to add tamper resistance. It can be used on a suitable factory gimbal bracket, whether or not the bracket sits on a RAM mount. Use the supplied key to tighten or release it.

RAM excludes Garmin ECHOMAP 93sv. Compatibility with the ECHOMAP Plus 93sv generation has not been verified; confirm exact model fit before ordering. Check the equipment's thread, required engagement length and available clearance before fitting. The included washers let you adjust the exposed thread length.

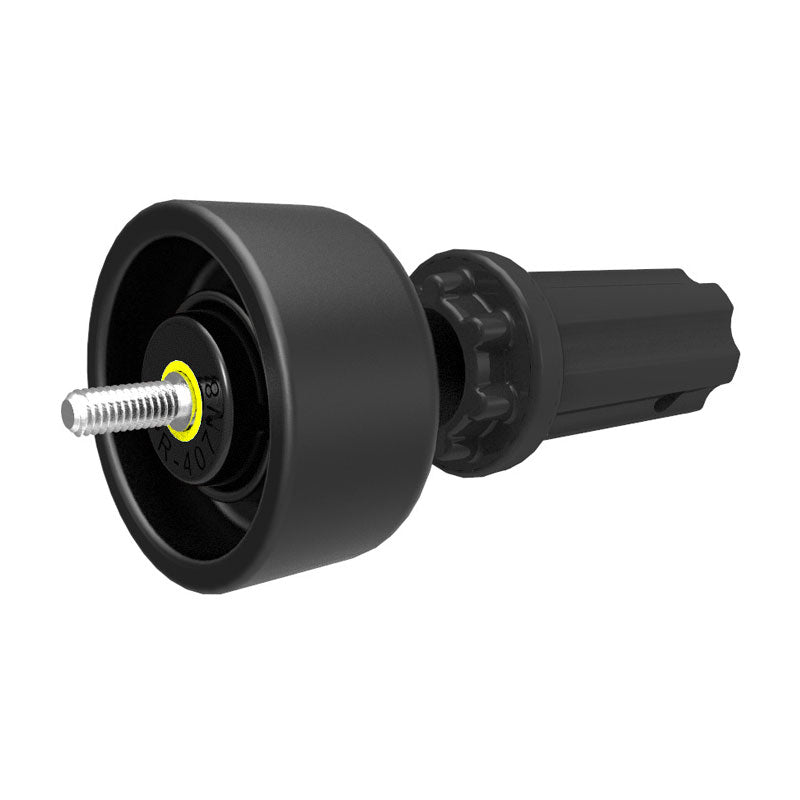

Threaded Stud Adapters

• #10-24, 18.3 mm long
• 5/16"-18, 26.9 mm long
• 1/4"-20, 34.0 mm long
• M5 x 0.8, 12 mm long
• M6 x 1, 16 mm long
• M8 x 1.25, 21 mm long

Specifications

• Weight: Approximately 95 g
• Packaging: Poly bag
• Key pattern: Randomised; separate units may require different keys

Marine electronics, gimbal bracket and RAM mounting system are not included. This knob secures the gimbal connection only. For a separate socket-arm security accessory, see RAP-S-KNOB5U for C Size arms or RAP-S-NUT5U for D/E Size arms.

Help

RAM Pin-Lock Gimbal Knob Installation Guide

Follow the socket arm's own tightening instructions. RAM recommends the Hi-Torq wrench for additional tightening of compatible D Size arm knobs; the gimbal knob uses its supplied Pin-Lock key.
