RAM-B-101-LO11
RAM Mount for Lowrance Elite-4 & Mark-4 Fishfinders (RAM-B-101-LO11)
$76.00$90.00
Size Guide
Included:
- 1 x RAM Standard Double Socket Clamp Arm B Size (RAM-B-201U)
- 1 x RAM Round Base with 1" B Size Ball (RAM-B-202U)
- 1 x RAM Quick Release Adapter w 1" Ball (RAM-B-202-LO11)

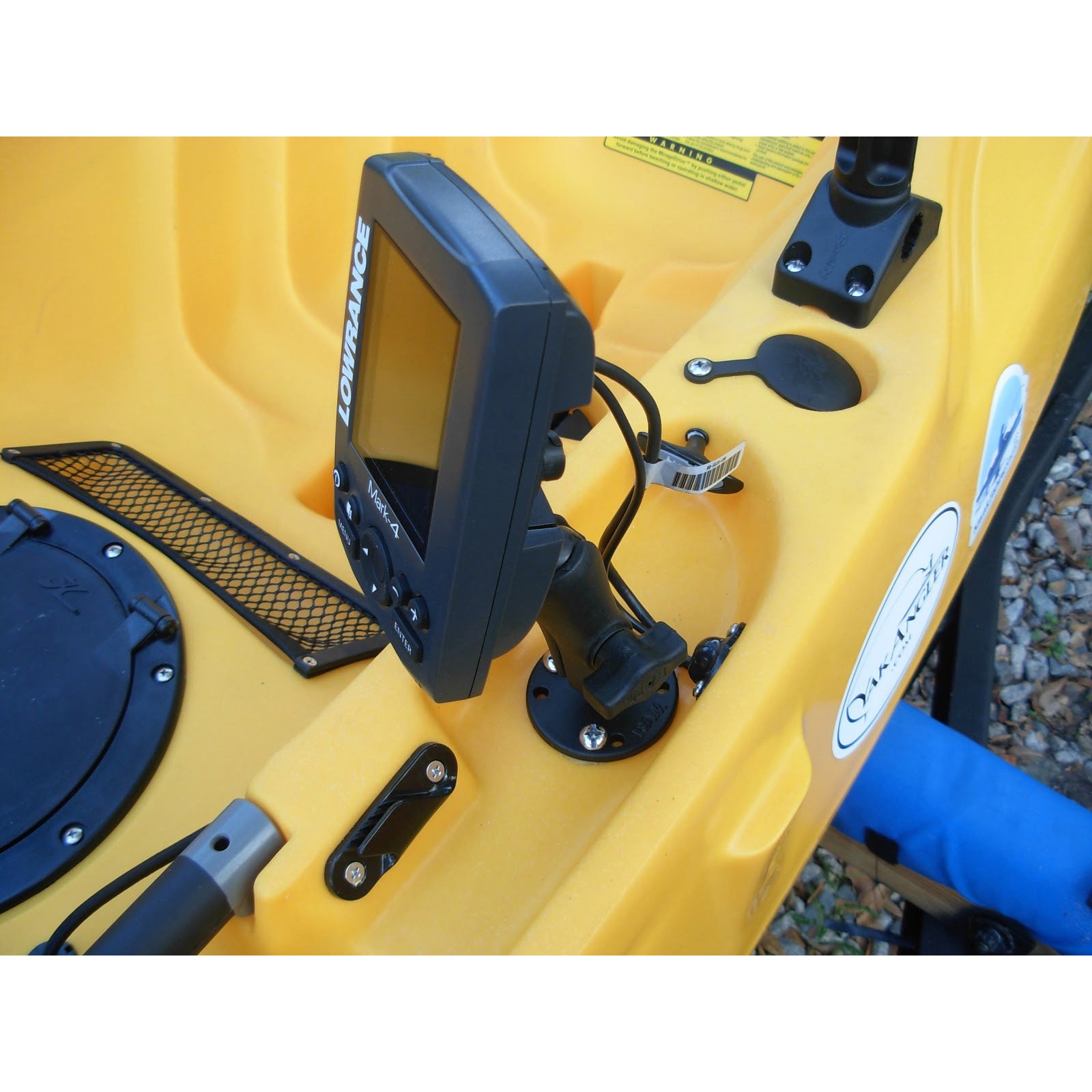

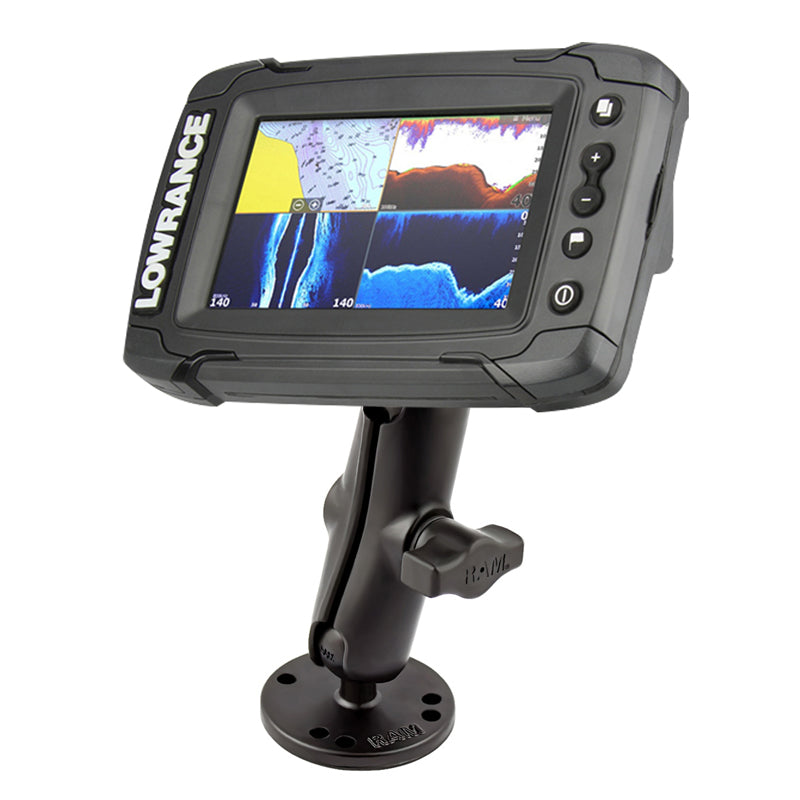

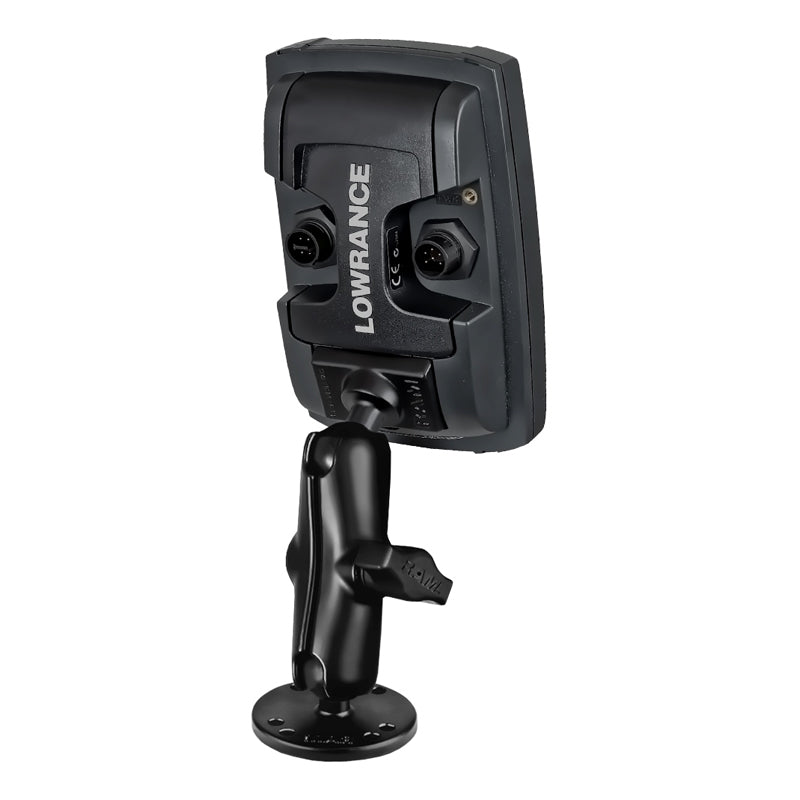

The RAM-B-101-LO11 features a 2.5" diameter round base with the universal AMPS hole pattern, double socket arm and adapter base that inserts directly to the back of Lowrance Elite-4 and Mark-4 Fishfinders (See 'Compatibility' below).
The RAM-B-101-LO11 utilises a quick-release mechanism, allowing you to remove or transfer your Fishfinder in seconds.
Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm; this with RAM's rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
Specifications
- Material: Powder Coated Marine Grade Aluminium
- Ball Size: 1" Rubber "B" Ball Size
- Overall Height: 5"
- Weight: 0.58 lbs.
- Lifetime Warranty
Note: Part number reflects product packaged in clear clam shell for store shelf display.
RAM recommends this mount for "Light Use" mounting applications, including lightweight Lowrance Elite and Mark Fishfinders.
Compatibility
- Lowrance Elite 3x
- Lowrance Elite 3x DSI
- Lowrance Elite-4
- Lowrance Elite-4 DSI
- Lowrance Elite-4 Gold
- Lowrance Elite-4x
- Lowrance Elite-4x DSI
- Lowrance Elite-4m
- Lowrance Mark-4
Note: This product is not compatible with the standard Lowrance Elite-7.
Collections: All, B Size Components 1", Best Selling Products, Marine Mounts, Newest Products
Type: Kits
Category: Arm, B Size, Base, Cradle, Fishfinder, Lowrance, Marine
