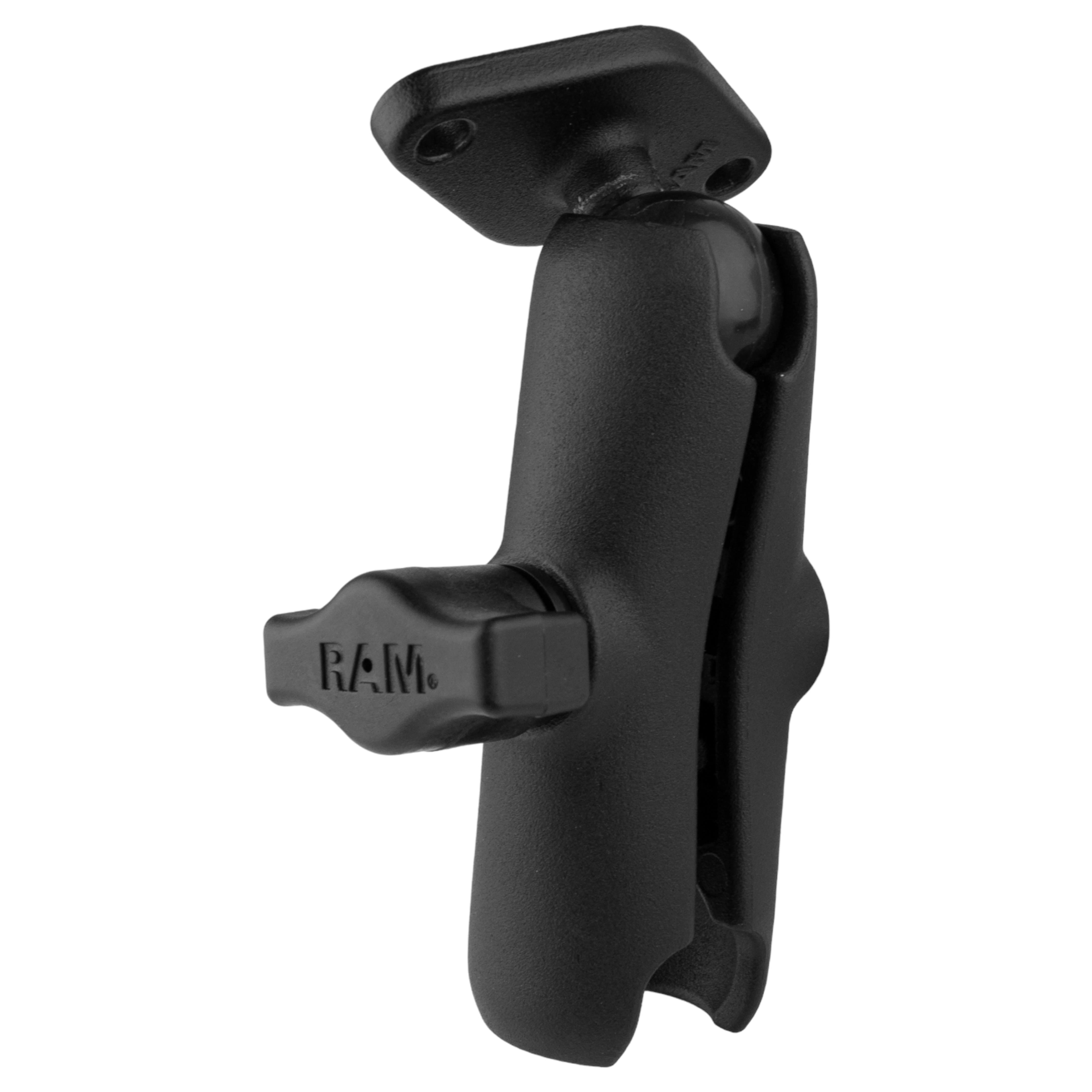

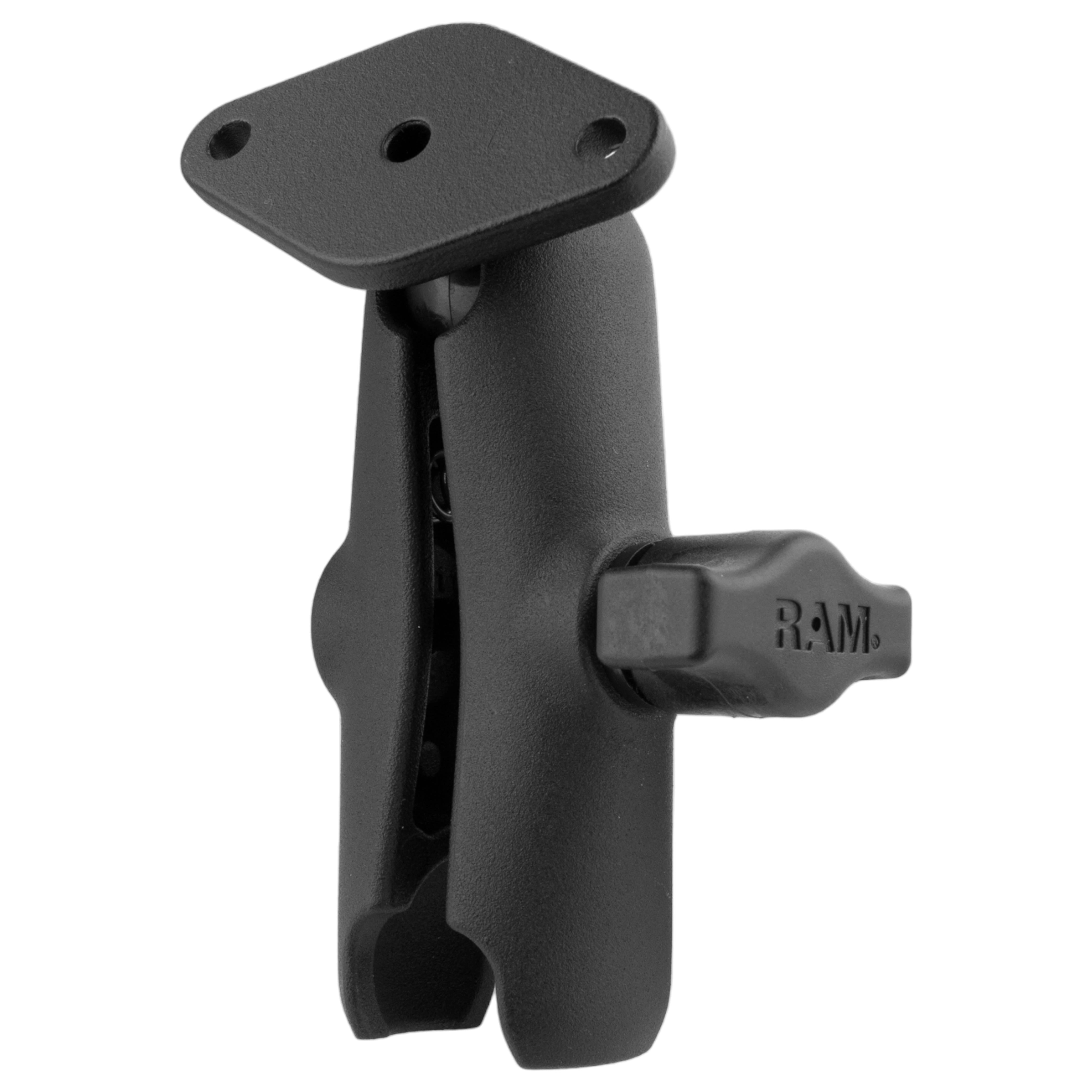

RAM Medium Socket Arm with Diamond Plate B (RAM-B-103-238U)

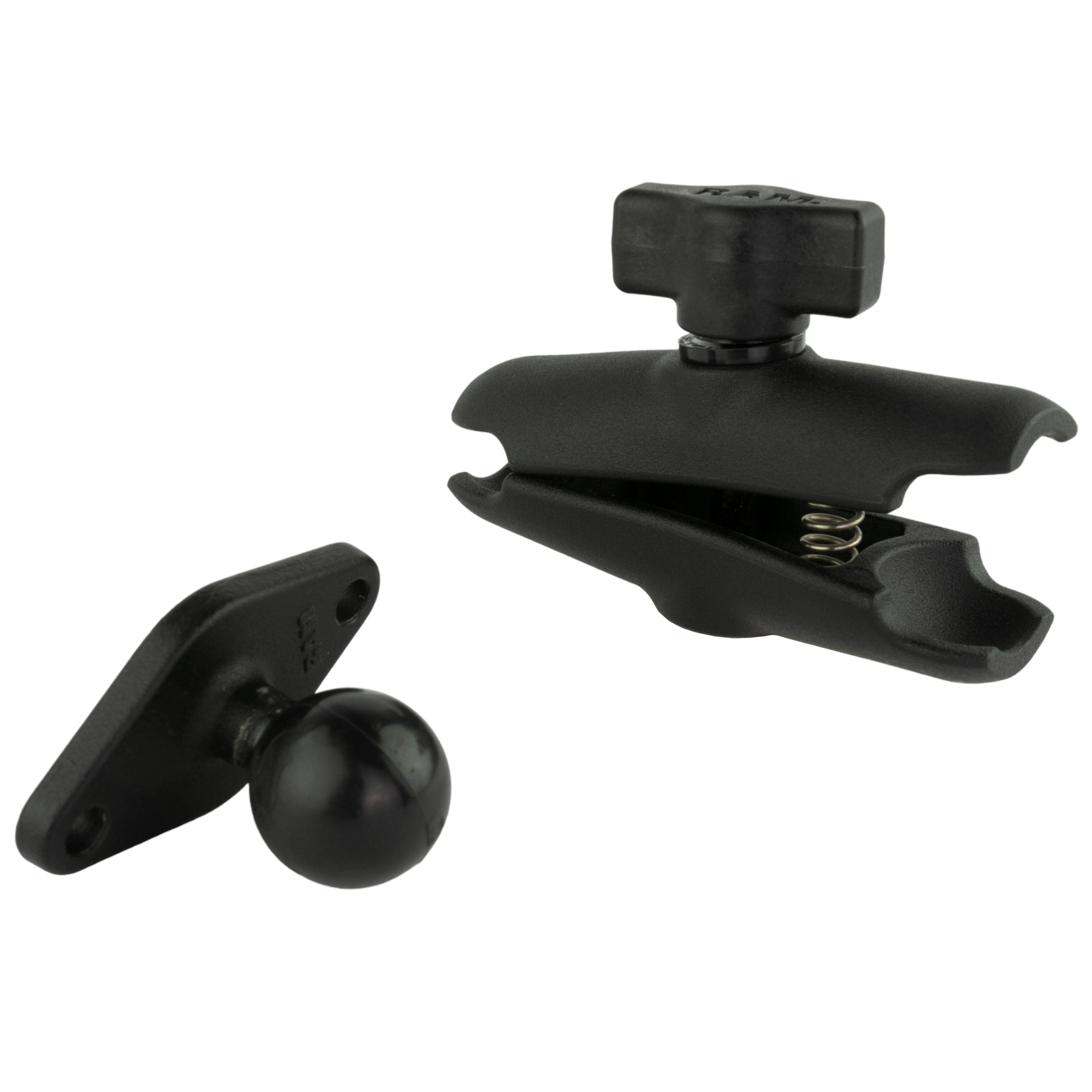

Included:

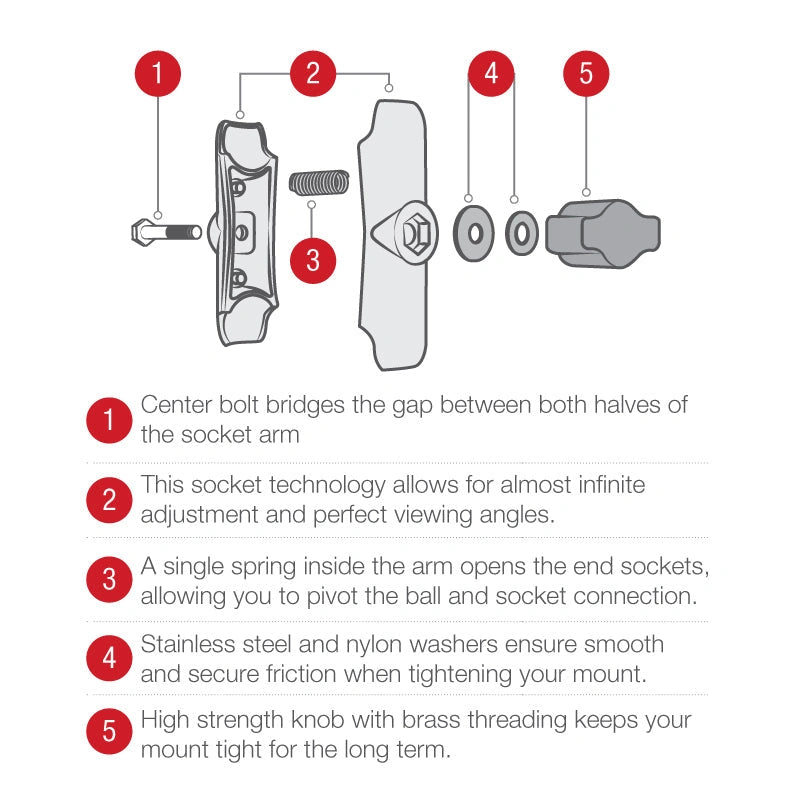

• 1 × RAM Standard Double Socket Clamp Arm B Size (RAM-B-201U)
• 1 × RAM Diamond Base with 1" B Size Ball (RAM-B-238U)

A medium B-size socket arm and diamond adapter plate for connecting a compatible plate-backed device holder to a separate RAM B-size ball base. The open lower socket lets you choose the mounting base for your installation.

Supplied as genuine RAM components matching the official RAM-B-103-238U configuration. Packaging may vary. Mounting base, device holder and device are sold separately.

Specifications

• Ball and Socket Size: B size, 1 inch (25.4 mm).
• Arm Reach: Medium; 3 inches (76.2 mm) socket-to-socket.
• Adapter Pattern: 2-hole AMPS: 1.912 inches (48.6 mm) between hole centres.
• Material: Marine-grade aluminium.
• RAM Weight Rating: 2 lb (0.91 kg) standard use; 1 lb (0.45 kg) heavy-duty use.

Help

Use the selected holder’s specified attachment screws and nuts, including the correct screw length for its adapter connection. RAM holders commonly include their own assembly hardware; separate holder attachment fasteners are not listed as included here. Choose a mounting base that suits your mounting surface and the full holder, case and device load.

Assess reach, vibration and mounting-surface strength as well as the component rating. Check joints and fasteners before use.

Compatibility

The lower socket accepts a 1-inch B-size RAM ball. The supplied diamond plate attaches to a holder with a matching AMPS pattern. A 1.5-inch C-size ball does not fit this B-size arm. Check the chosen holder’s device and case dimensions separately.
