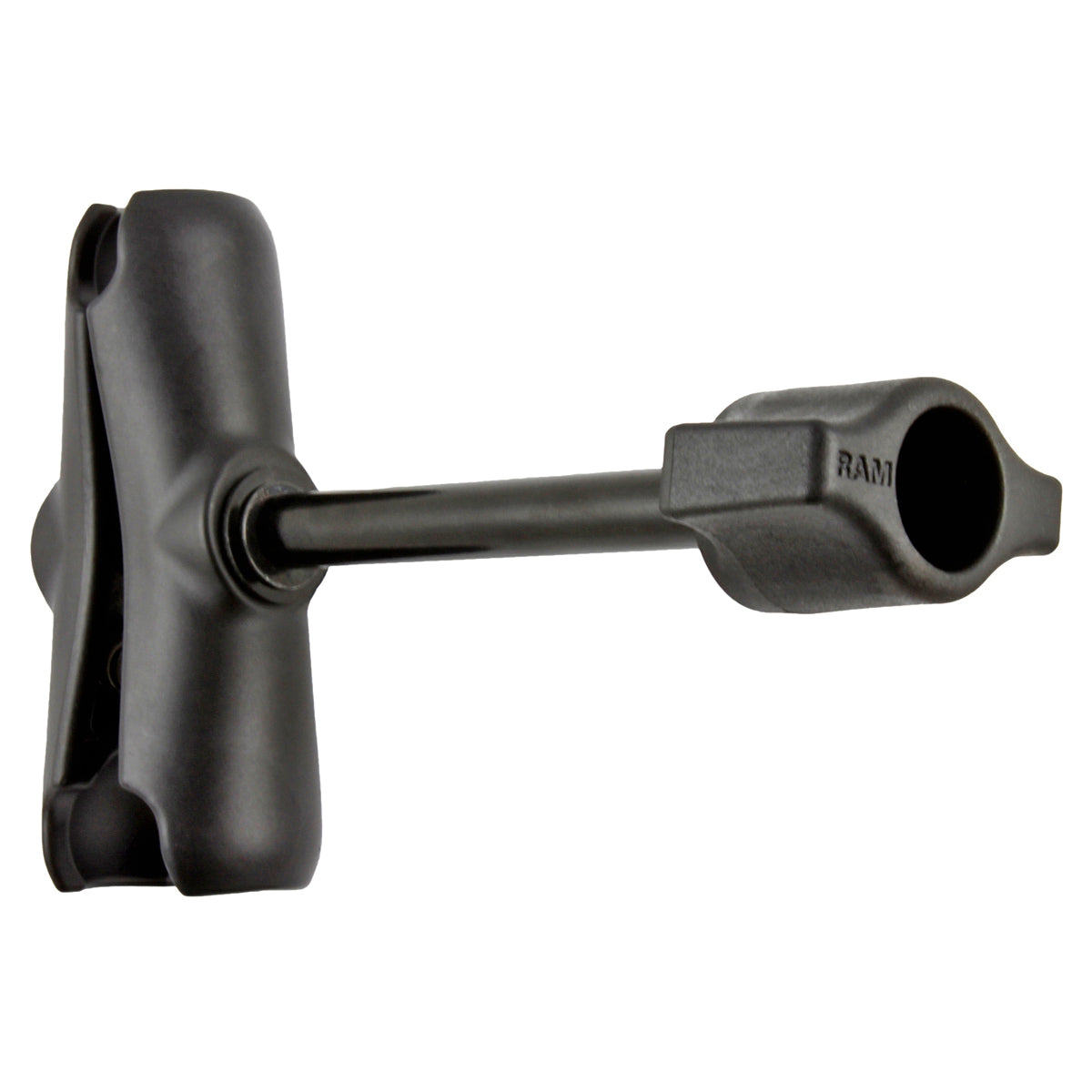

RAM Medium Double Socket Arm with Retention Knob (RAM-B-201-ALA1-KRU)

Included:

• 1 x RAM Medium Double Socket Arm with Retention Knob (RAM-B-201-ALA1-KRU)

The RAM-B-201-ALA1-KRU is a medium-length double socket arm for RAM B-size ball mounts. Its extended knob is easier to reach when a tablet or other device makes a standard adjustment knob awkward to access.

A captive acorn-nut stop limits how far the knob can be loosened, helping prevent accidental disassembly of the arm. The internal spring opens the sockets for fitting and repositioning the ball connections.

Compatibility

Connects two B-size 1" (25.4mm) balls. Choose a compatible mounting base and device holder separately. Check the weight of the device, case and attached accessories against the limits of every component in your setup.

Specifications

• Arm length: Medium / standard
• Overall length: 3.73" (94.7mm)
• Socket-to-socket length: 3" (76.2mm)
• Ball size: B size, 1" (25.4mm)
• Material: Marine-grade aluminium
• Standard-use capacity: 2 lb (approximately 907g)
• Heavy-duty capacity: 1 lb (approximately 454g)
• Product weight: Approximately 184g
• Packaging: Poly bag

The retention stop does not increase the load rating or keep the device secure if the arm is left under-tightened. Tighten the arm securely before use. Ball bases and device holder are not included.
