RAM Powered Cradle Samsung Tab Active5, Active3 & Active2 (RAM-HOL-SAM60PDU)

Included:

• 1 x RAM® EZ-Roll'r™ Powered Cradle Samsung Tab Active5, Active3 & Active2 (RAM-HOL-SAM60PDU)

FEATURES

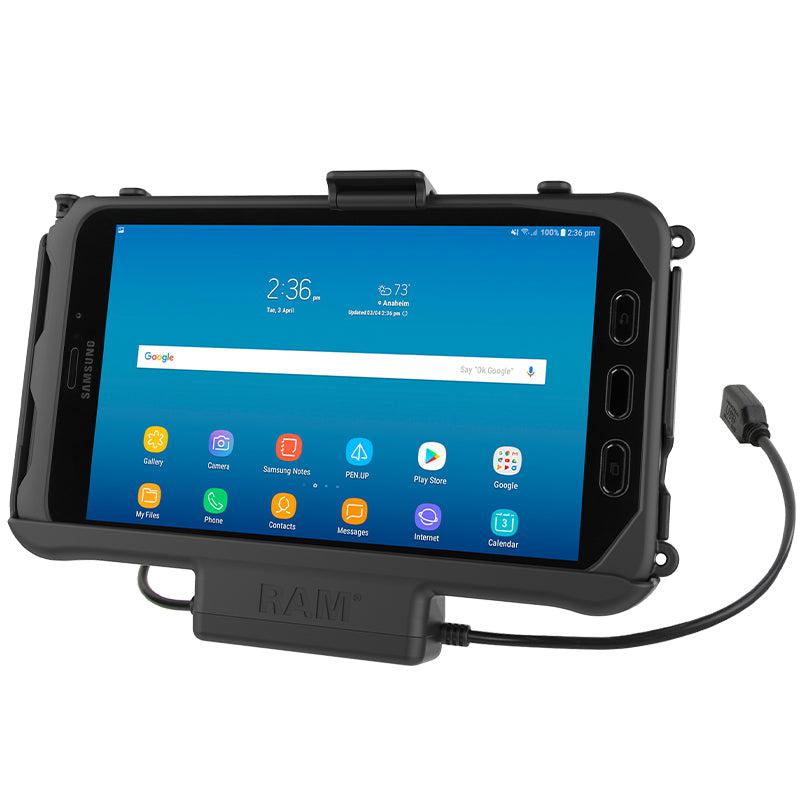

This powered cradle for the Samsung Tab Active5, Active3 and Tab Active2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more.

Power capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode.

This cradle is also compatible with the RAM Skin or factory device skin, as well as GDS Hand-Stand and shoulder strap accessories. Access to the stylus remains while the device is docked.

INCLUDED:

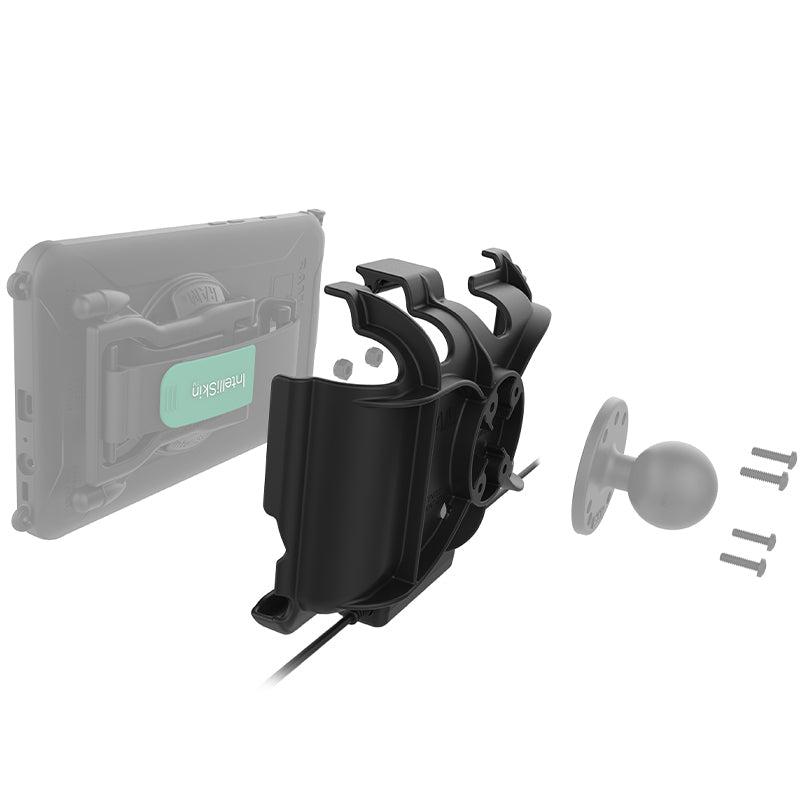

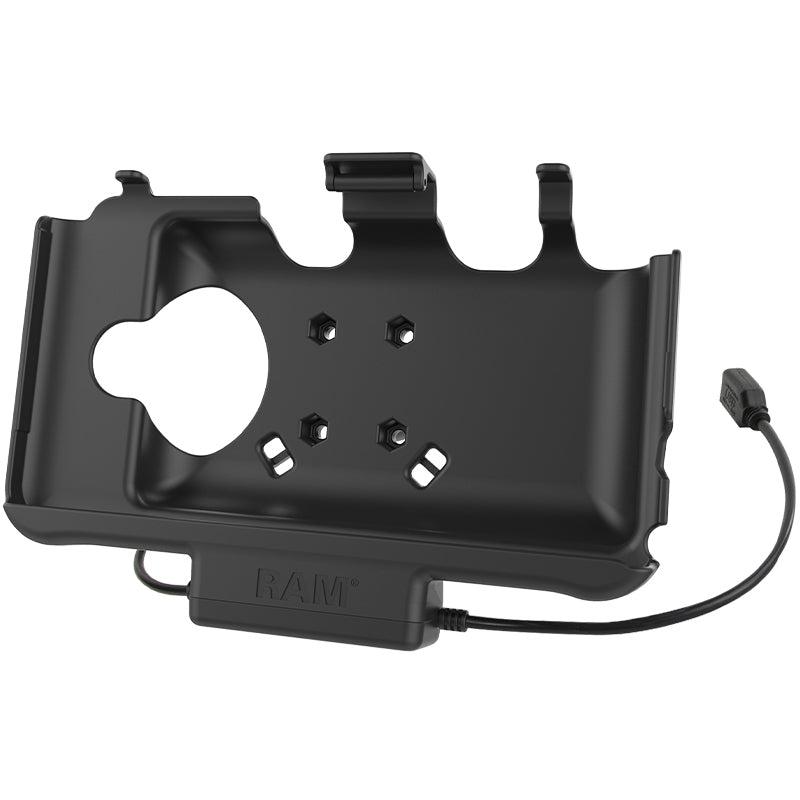

Included is a set of four nuts and bolts to connect the cradle to any RAM^® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS^® Hand-Stand^™ attachment so you can easily take your Tab Active3 or Tab Active2 from your vehicle, to your person, to your desk with zero hassle.

Specs

PRODUCT DIMENSIONS
Width: 9.24"
Height: 6.34"
Depth: 2.57"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

INPUT VOLTAGE
4.4VDC - 5.4VDC (USB power source dependent)

OUTPUT VOLTAGE
4.4VDC - 5.4VDC (USB power source dependent)

POWER OUTPUT
500mA

TRANSFER SPEED
12Mbps

INPUT CONNECTOR
mUSB 2.0 Female

CABLE LENGTH
0.22m

OUTPUT CONNECTOR
USB 1.1 Type A

WEIGHT
0.814 lbs.

WARRANTY STATUS
3 year warranty

ADDITIONAL INFORMATION
This product will not support IntelliSkin®.
Mount using a round ball base (RAM-202U recommended)
Device speakers and mics exposed
Device headphone jack exposed
mUSB female pigtail for power

Compatibility

• Samsung Tab Active5
• Samsung Tab Active3
• Samsung Tab Active2

Help

Cleaning Guide

Something failing? By all means get in contact with us at info@modestmounts.com.au

However, we have found it is VERY rarely the cradles or cables in these instances (we sell thousands of these per year and have almost no electronics failures.)

The most common fail point is on the Pogo pads on the Samsung devices. Earlier Tab Active 2+3 had extremely soft pads that could wear down over time from vibration. They claim this has been fixed in the Tab Active 5, but we still have evidence of these pads wearing down in high vibration environments.

Often just cleaning the pogo pads with contact cleaner and cloth or even a pencil eraser, solves most issues, provided the pins have not worn down.
