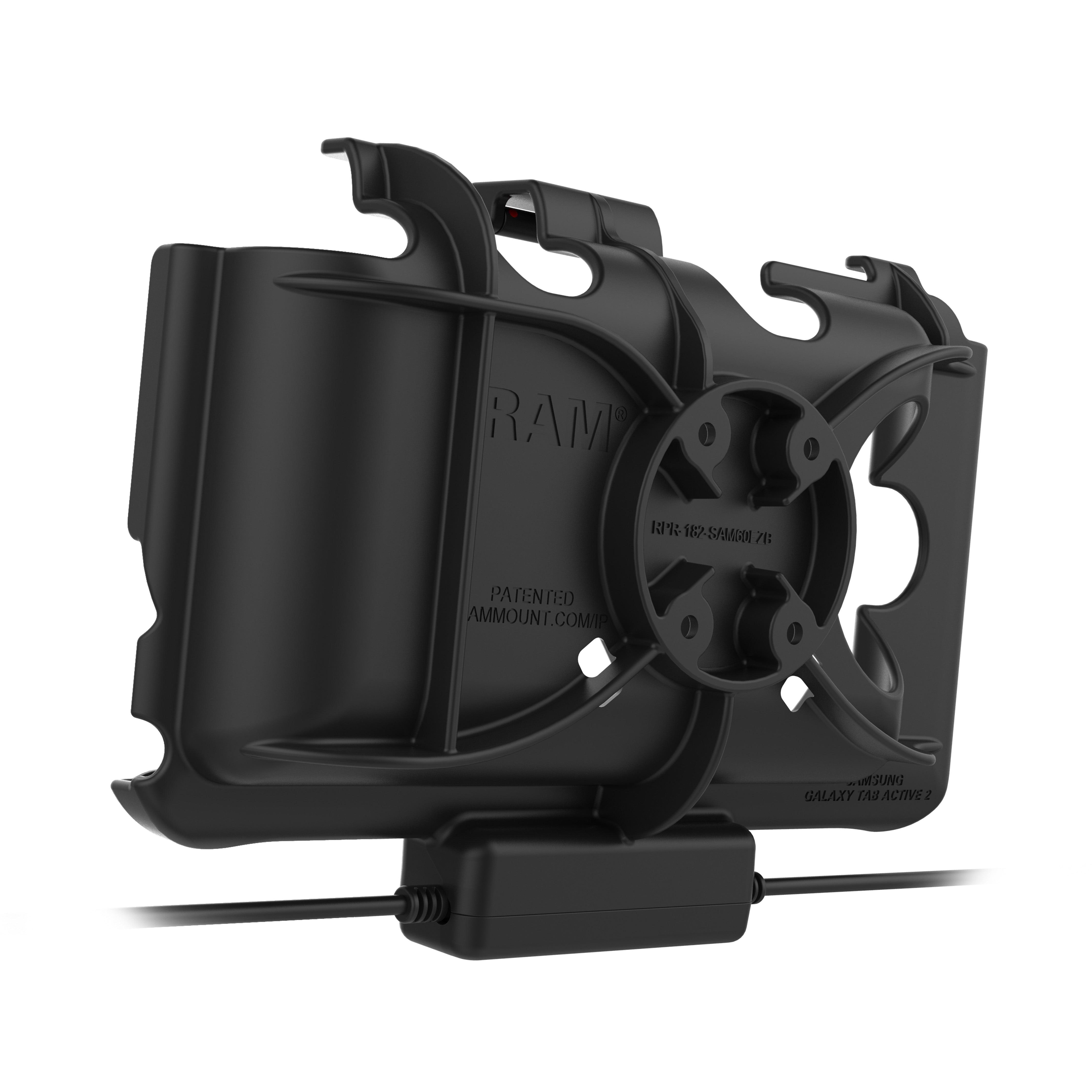

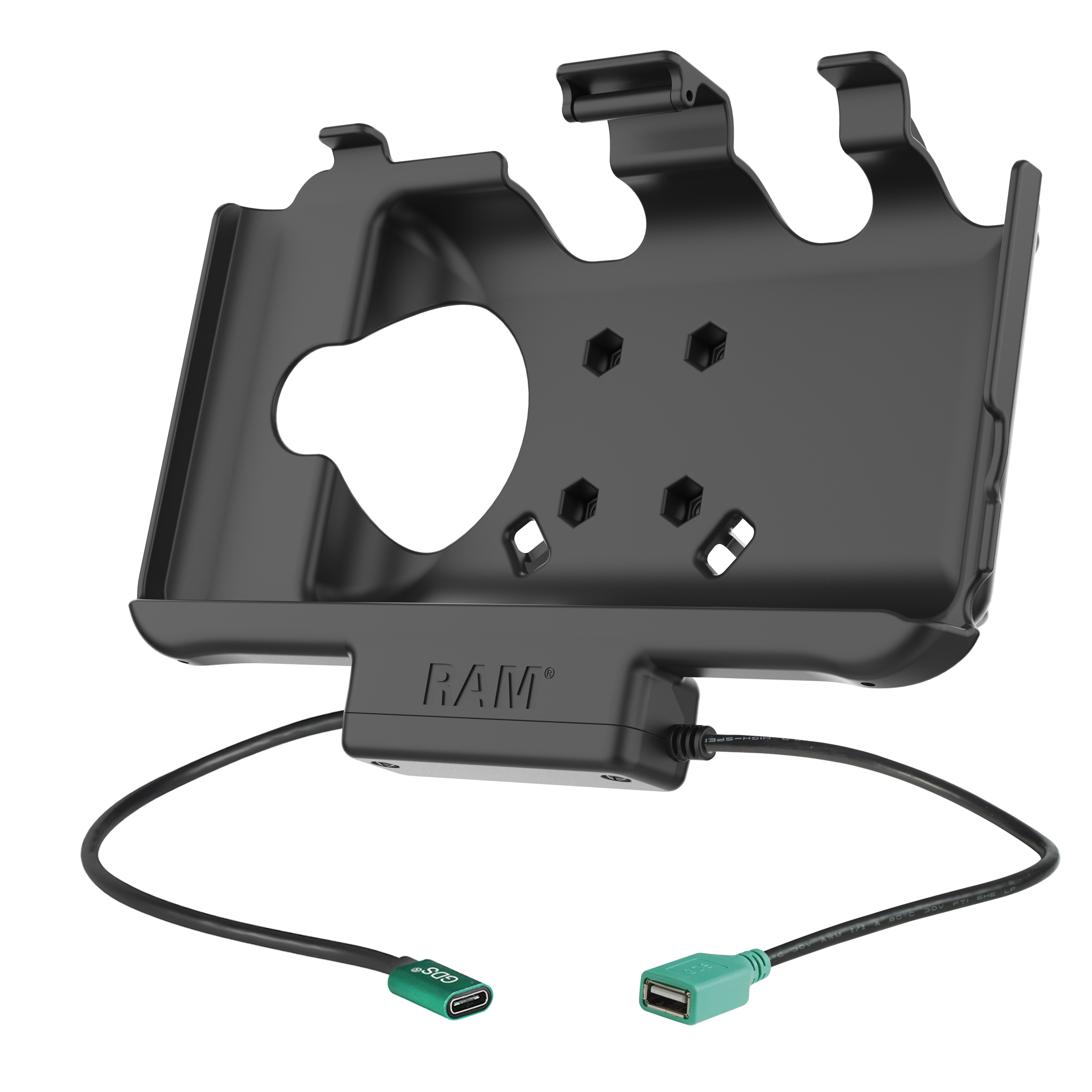

RAM EZ-Roll'r Power + Data Dock for Samsung Tab Active2, Active3 & Active5 (RAM-HOL-SAM60CP-1AU)

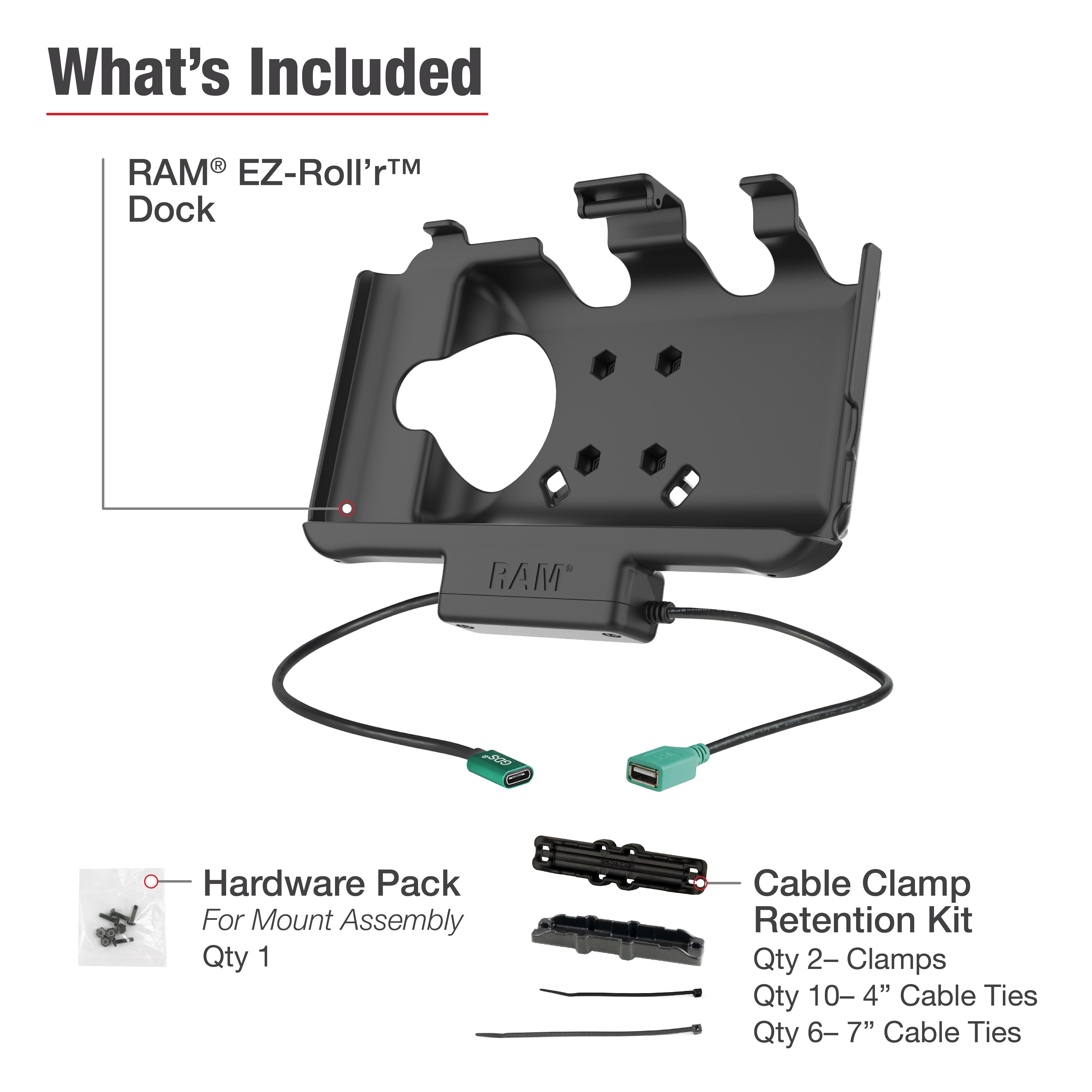

Included:

• 1 x RAM EZ-Roll'r Power + Data Dock (RAM-HOL-SAM60CP-1AU)
• 4 x #8-32 x 5/8-inch screws, 4 x Nyloc nuts, 2 optional cable-clamp housings, 6 large and 10 small cable ties

3-year manufacturer warranty. Requires a non-Power Delivery charger; PD chargers are incompatible.

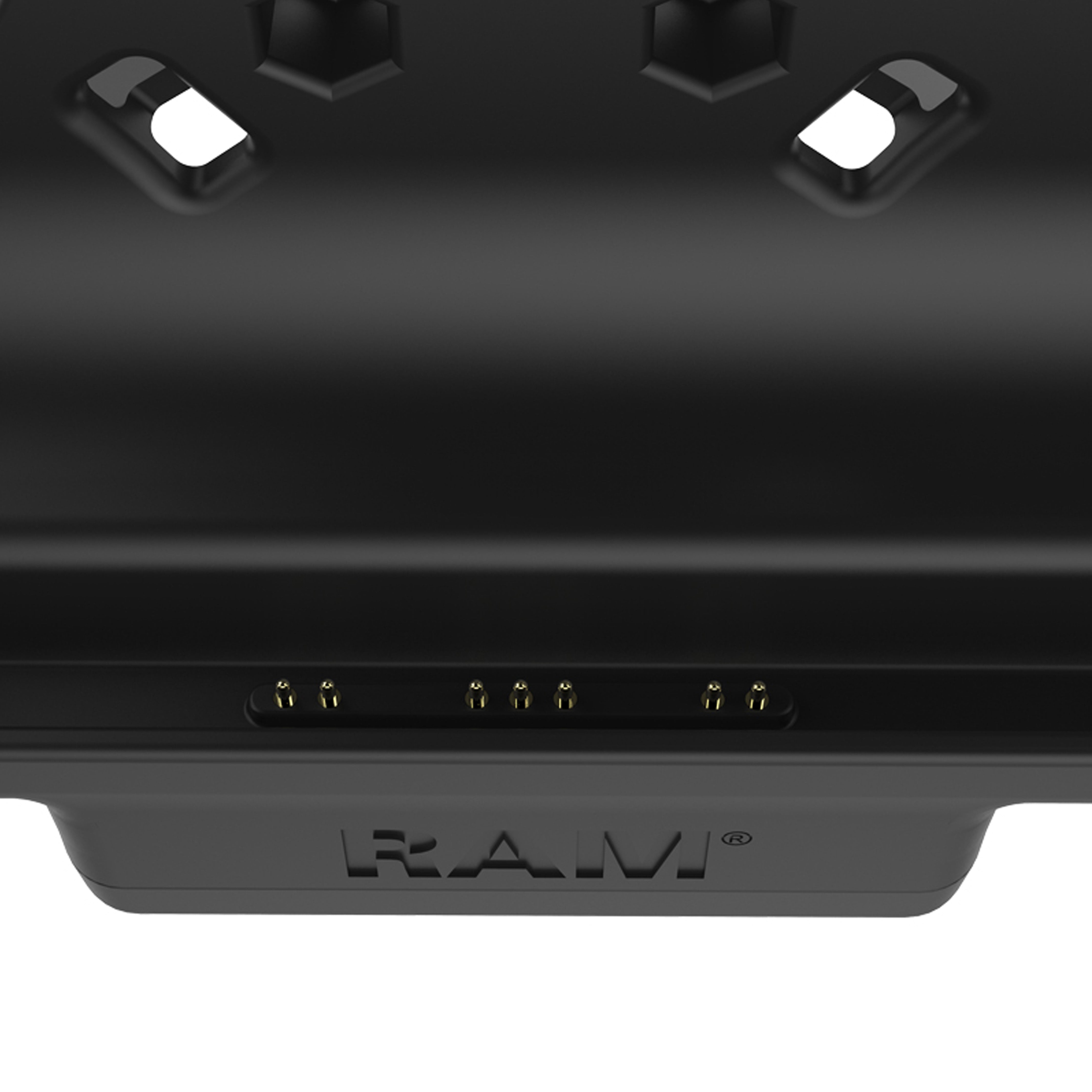

This dock supports Samsung Galaxy Tab Active2, Active3 and Active5 with Samsung OEM skin or RAM Skin. Its pogo-pin connection supplies power and data, with one USB-A port for a compatible peripheral. Tablet, skin, peripheral, charger and mounting components are sold separately.

Specifications

• Material: High Strength Composite
• Dimensions: 9.24 x 6.34 x 2.57 inches, approximately 234.7 x 161.0 x 65.3 mm (W x H x D)
• 4-hole AMPS: 1.181 x 1.496 inches (approximately 30 x 38 mm)
• Weight: 0.71 lb (approximately 322 g); poly-bag packaging
• USB-C female input: 5.3–5.4 VDC; 250 mm lead
• Output: 5 VDC, 500 mA
• USB 1.1 Type-A peripheral output: 500 mA, 12 Mbps; 250 mm lead

Compatibility and power

Important: No Battery Mode on Tab Active3 and Active5 is unsupported. Select a suitable non-PD power source matching the input specification.

Check the exact tablet and skin combination; this listing does not cover bare tablets or arbitrary cases. For charging without a peripheral data port, see the RAM-HOL-SAM60CPU charging dock.
