RAM-B-189-C-UN9U
RAM Dual Suction Mount w X-Grip for 9"-11" Tablets (RAM-B-189-C-UN9U)
$279.00$302.00
Size Guide
Included:
- 1 x RAM X-Grip III 9" - 11" Tablet Cradle (RAM-HOL-UN9U)
- 1 x RAM Long Double Socket Clamp Arm B Size (RAM-B-201U-C)
- 2 x RAM Round Base with 1" B Ball (RAM-B-202U)
- 1 x RAM Double Suction Cup Base (RAM-B-189BU)

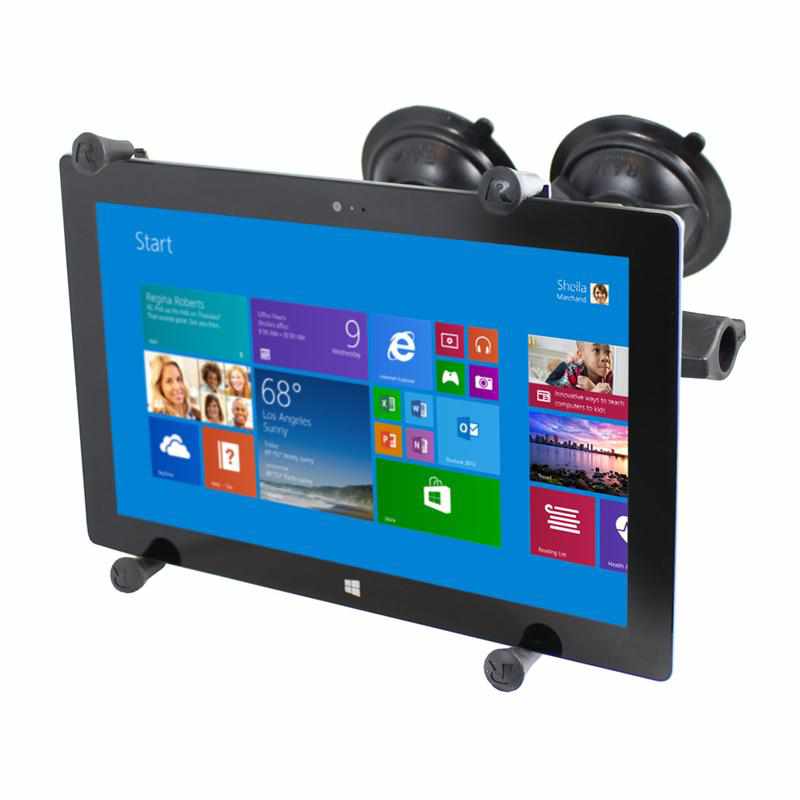

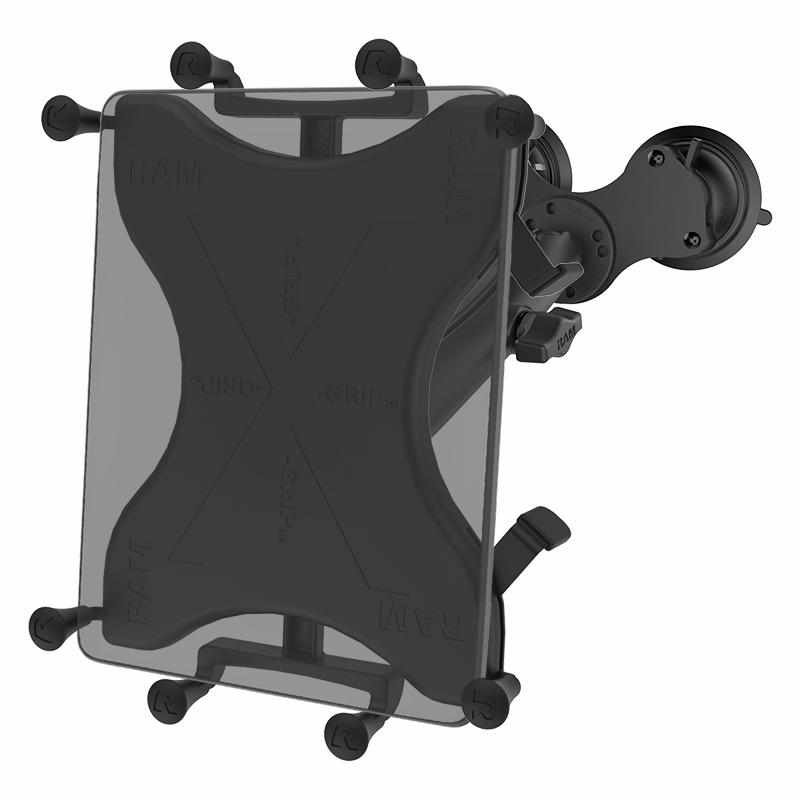

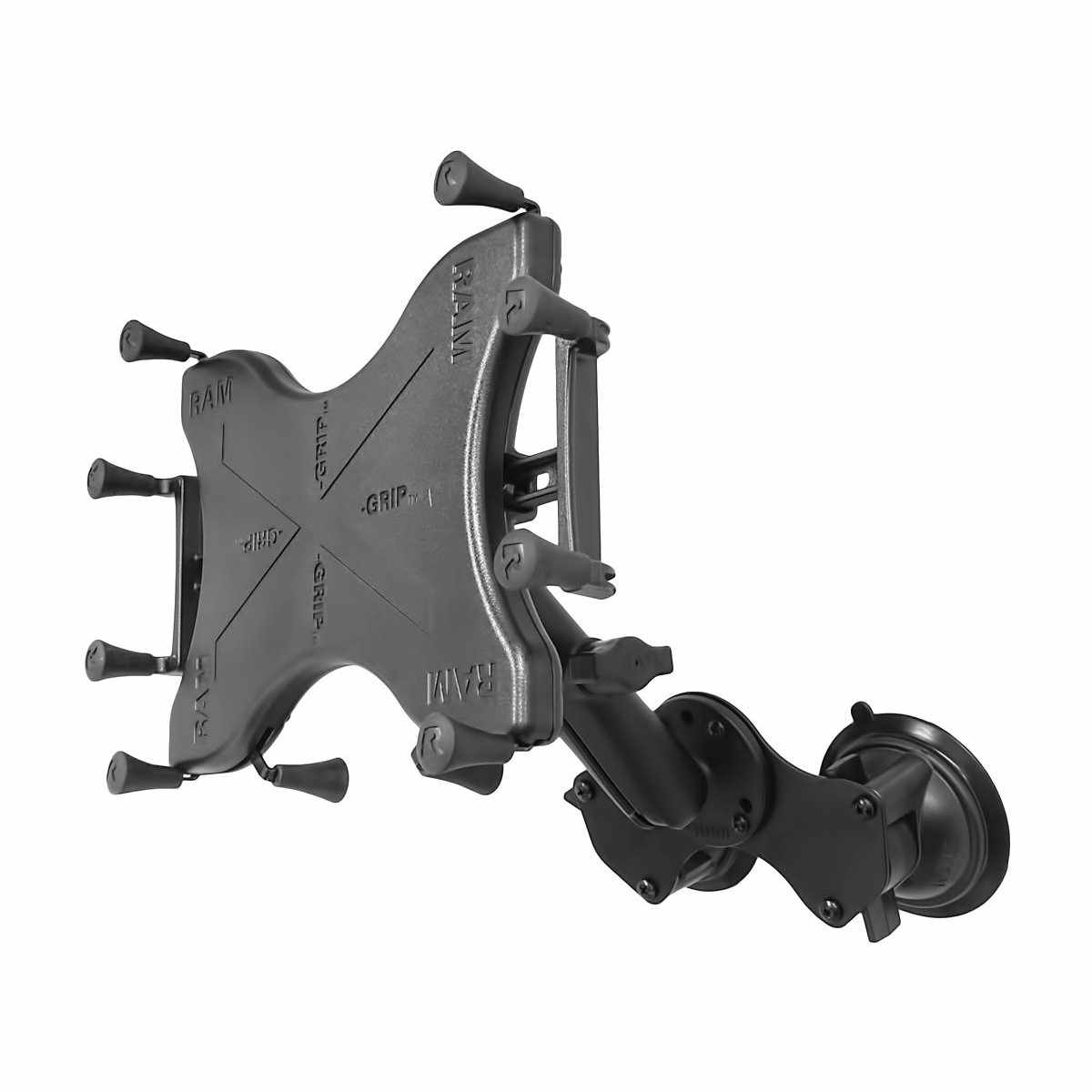

The RAM-B-189-C-UN9U consists of a double 3.25" twist lock suction cup base, LONG double socket arm, round base adapter and universal X-Grip® cradle for 9-10" tablets. The double suction cup base is designed to have an "EXTRA STRONG" hold on glass and non-porous plastic surfaces. The X-Grip® cradle is compatible with devices that will fit the dimensions listed below.
It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
The RAM-HOL-UN9U X-Grip Cradle consists of a composite spring-loaded holder, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the holder for quick release of your tablet.
The RAM-HOL-UN9U expands and contracts for perfect fit of most 10" tablets with or without sleeves, as well as some smaller tablets.
A list of compatible devices can be found below, otherwise, this mount suits any tablet that fits the cradle dimensions below:
Cradle Dimensions:
Max Height: 10.25" (260.35mm) - using optional supports (otherwise height is irrelevant)
Width Range: 6.25" - 8.1" (158.75mm - 205.74mm)
Max Depth: 0.875" (22.23mm)
Specifications
- Lifetime warranty
- SUCTION SIZE: (2) 3.3" Diameter Bases, Total Width 7.95"
- SOCKET-TO-SOCKET LENGTH: 5.31"
- MATERIALS: Powder-coated steel, Marine-grade aluminium, High strength composite
- Ball Size: 1" Rubber Ball "B" Size
- Weight: 1.12kg
Note: The "U" in the part number reflects product packaged in poly bag.
(RAM-B-189-C-UN9U)
Collections: All, Best Selling Products, Car Mounts, Newest Products, Tablet Mounts, X-Grip®
Type: Kits
Category: iPad Air 3, iPad Air 3 with Case, iPad Air 4, iPad Air 4 with Case, iPad Pro 10.5 (2nd Generation), iPad Pro 11", iPad Pro 9.7 (1st Generation), iPad Pro 9.7 (1st Generation) with Case, Suction, Tablet, UN9, X-Grip
