RAM Armrest Rail Articulated B-Size Socket Bundle (MM-B-ARMREST-ARTICULATED-SOCKET)

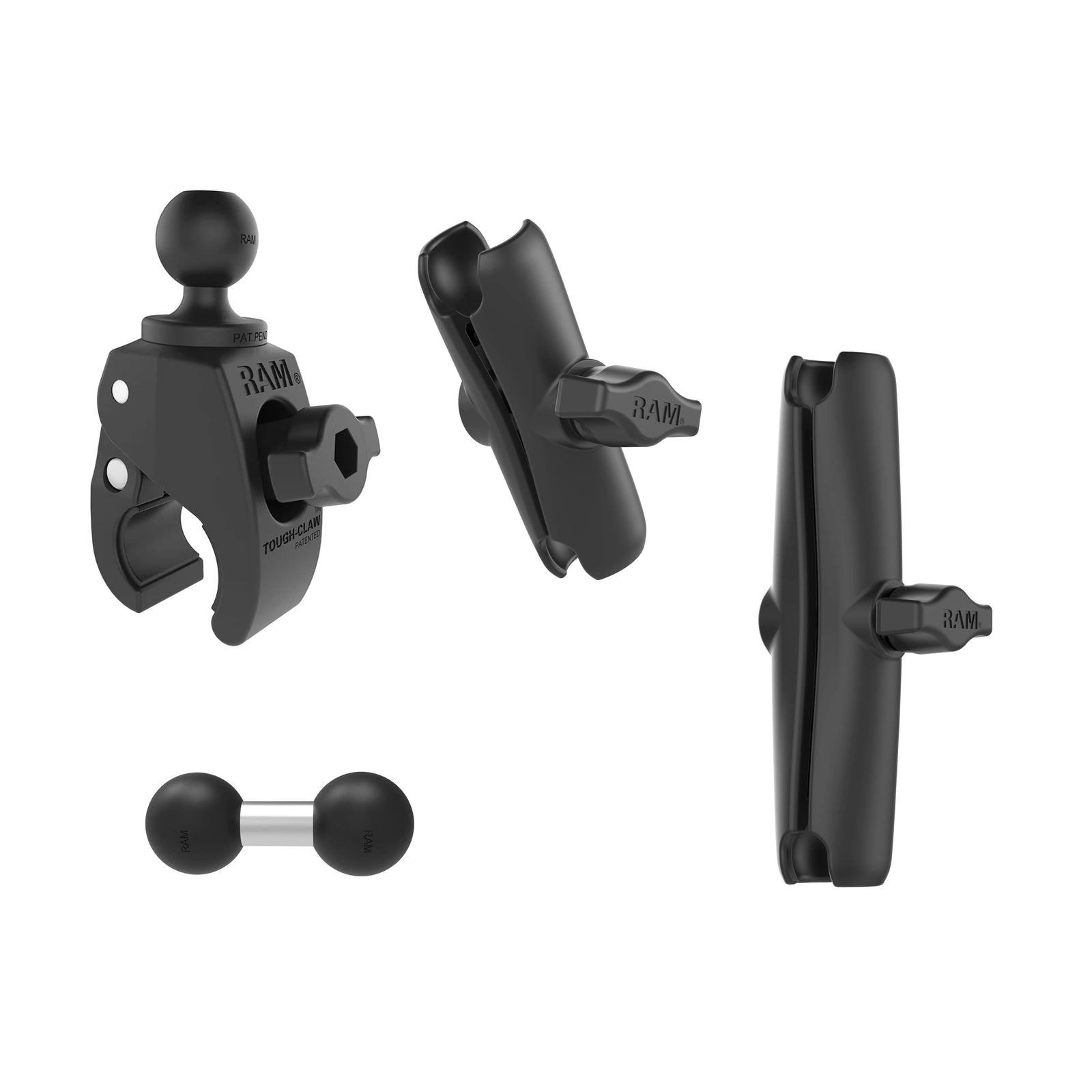

Included:

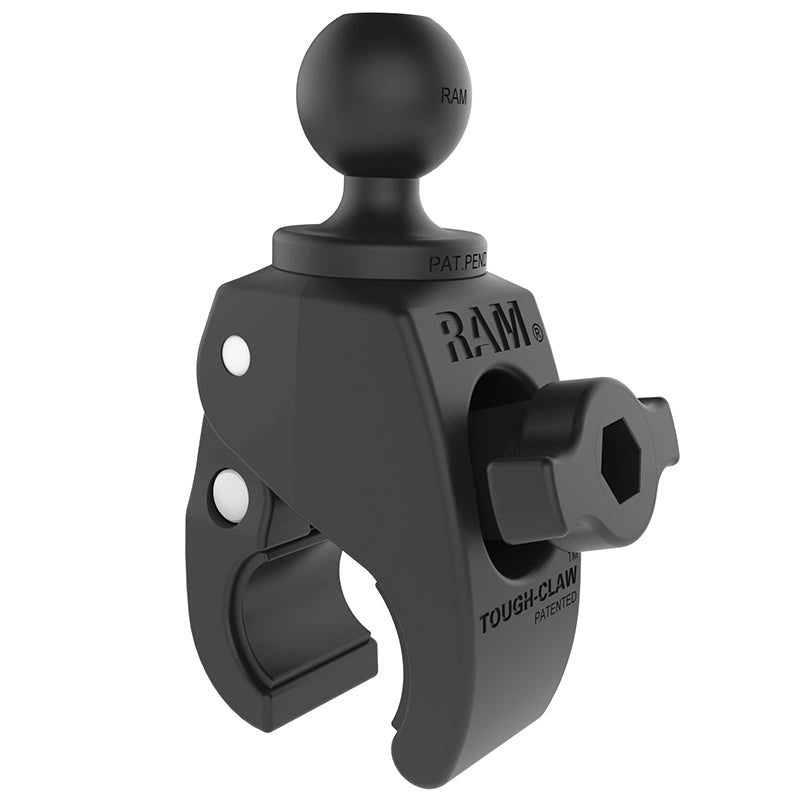

• 1 x RAM Small Tough-Claw Clamp with B Size Ball (RAP-B-400U)
• 1 x RAM Standard Double Socket Arm B Size (RAM-B-201U)

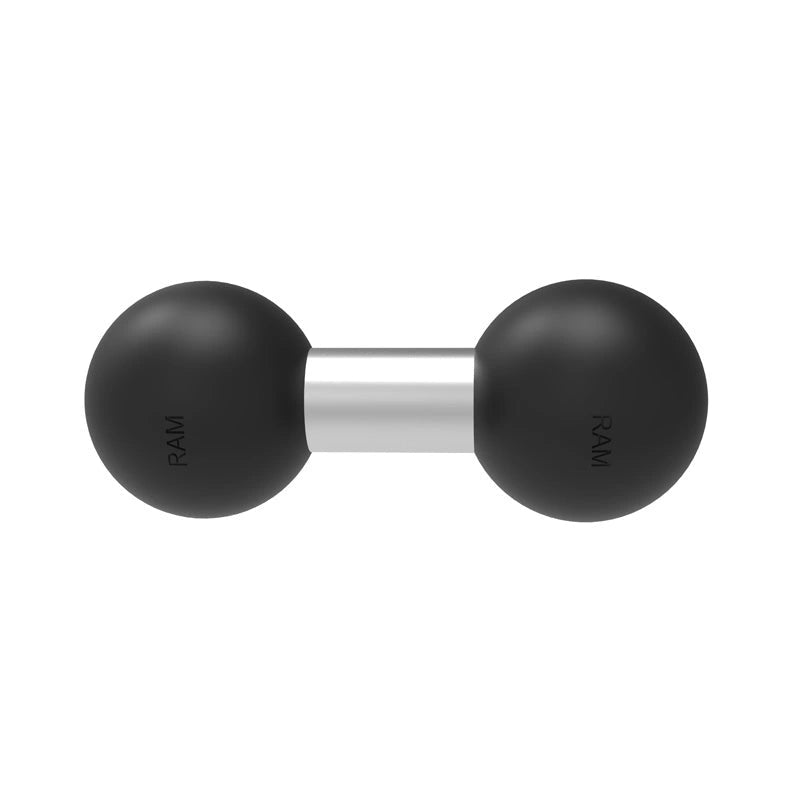

• 1 x RAM Double Ball Adapter B Size (RAM-B-230U)

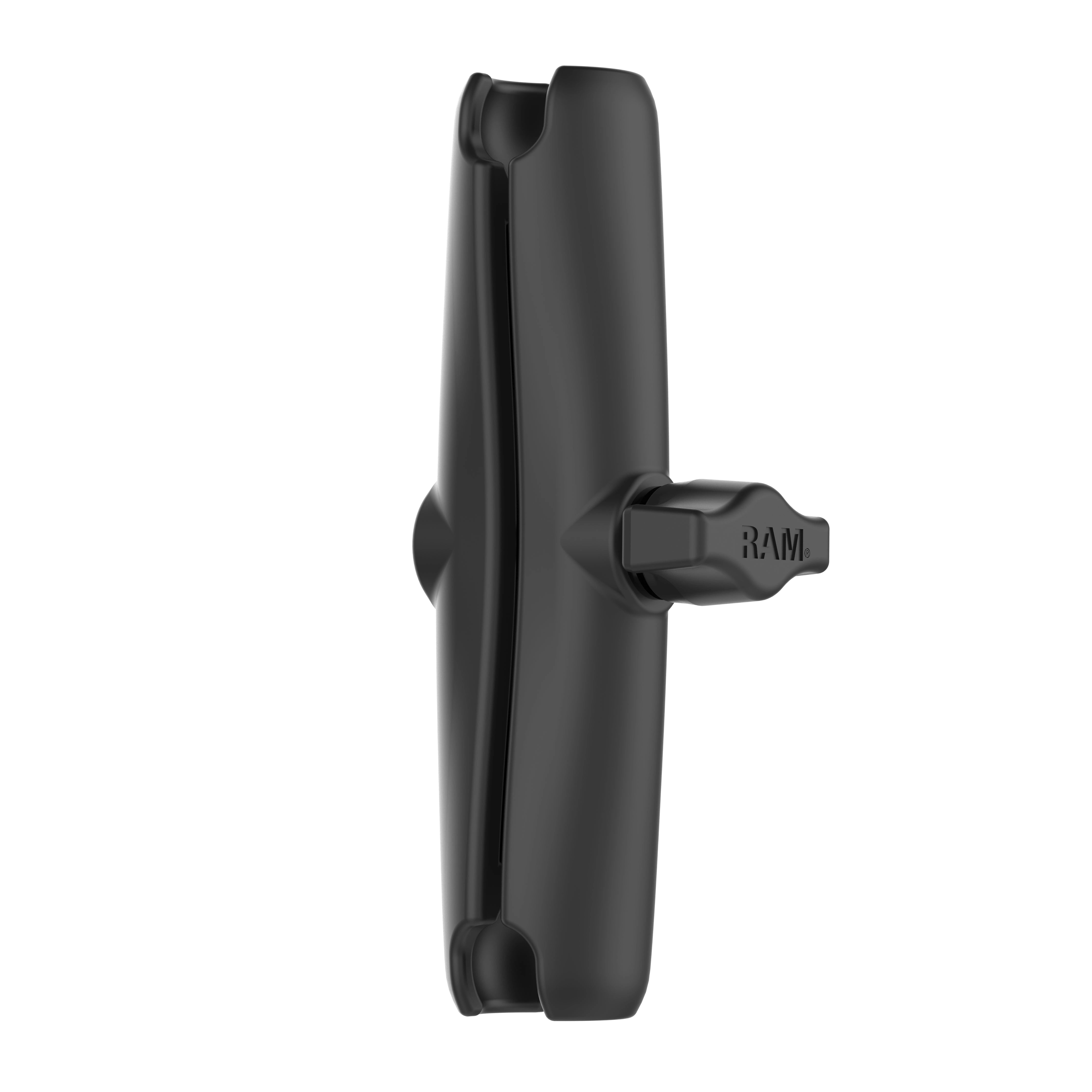

• 1 x RAM Long Double Socket Arm B Size (RAM-B-201U-C)

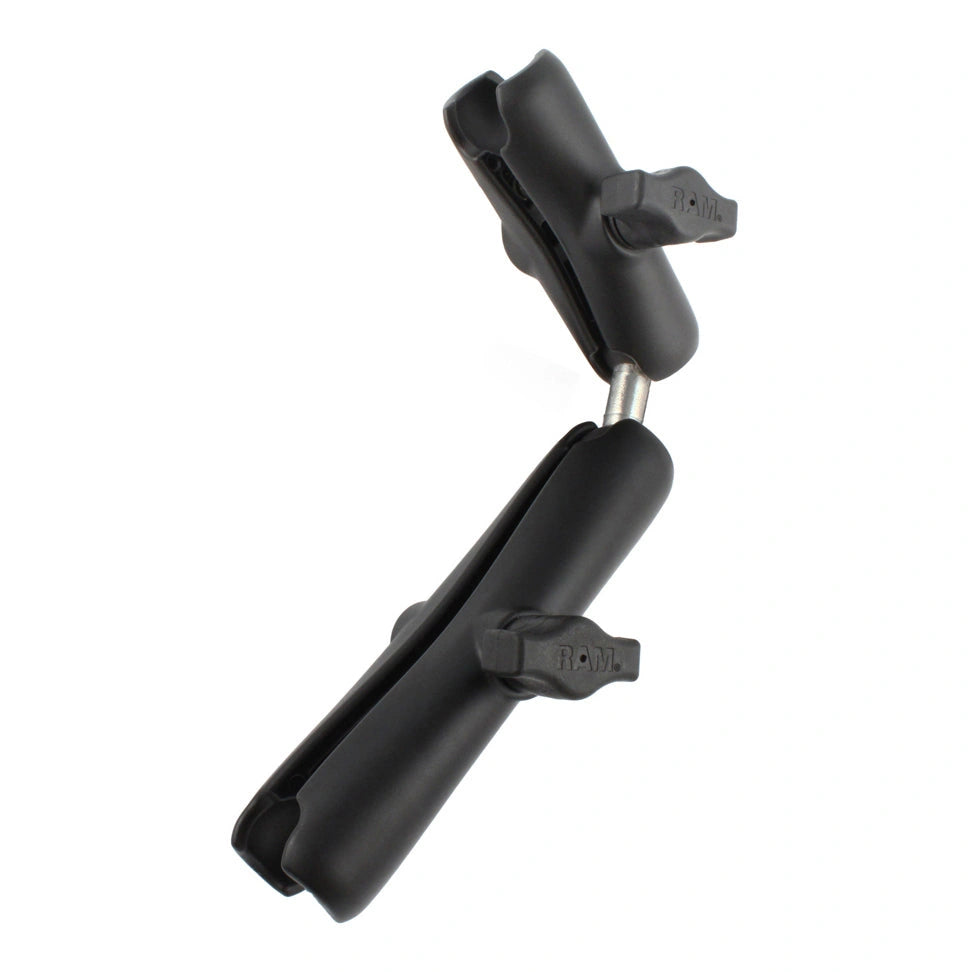

The small Tough-Claw attaches to a suitable wheelchair armrest rail. A medium arm and long arm, joined by the double-ball adapter, provide an articulated mounting position that can be adjusted around the user's seating arrangement.

Holder sold separately. The open upper socket accepts a holder with its own B Size ball. A flat-backed cradle needs a suitable B Size ball plate or adapter purchased separately.

Specifications

• Rail Diameter: 0.625"–1.14" (15.9–29.0 mm), following RAM's published Tough-Claw specification table
• Ball and Socket Size: B Size, 1" (25.4 mm)
• Medium Arm: 3.73" (94.7 mm) overall; 3" (76.2 mm) socket-to-socket
• Long Arm: 6" (152.4 mm) overall; 5.31" (134.9 mm) socket-to-socket
• Double-Ball Connector: 1.75" (44.5 mm) between ball centres
• Assembled Arm Section: 10.65" (270.5 mm) overall; 9.92" (252.0 mm) socket-to-socket, per RAM's matching medium-plus-long arm assembly; excludes the clamp and holder
• Weight Capacity: Standard use: 2 lbs (0.91 kg); heavy-duty use: 1 lb (0.45 kg). Include the holder and device in the supported load.
• Materials: Marine-grade aluminium arms/adapter, high-strength composite clamp and stainless-steel clamp hardware

Packaging may vary; all listed components are genuine RAM.

Fitment & Safety: Check rail shape, diameter, gripping area and attachment strength. Test the required reach and loaded stability. Keep the mount clear of controls, brakes, wheels, transfer paths, doorways and moving parts. Additional joints provide adjustment, not additional load capacity. This is not a universal wheelchair fit.

RAM component limited lifetime warranty.

No holder or upper mounting plate is included.
