RAM-HOL-SAM60P-V7B1U

RAM Powered Cradle for Tab Active5, Active3 & Active2 with Hardwire Charger (RAM-HOL-SAM60P-V7B1U)

Size Guide



Included:

  • 1 x RAM® Powered Cradle for Tab Active3 & Active2 with Hardwire Charger (RAM-HOL-SAM60P-V7B1U)

    FEATURES

    • RAM® EZ-Roll'r™ Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active5, Active3 and Tab Active2 through integrated pogo pin connector and mUSB cable

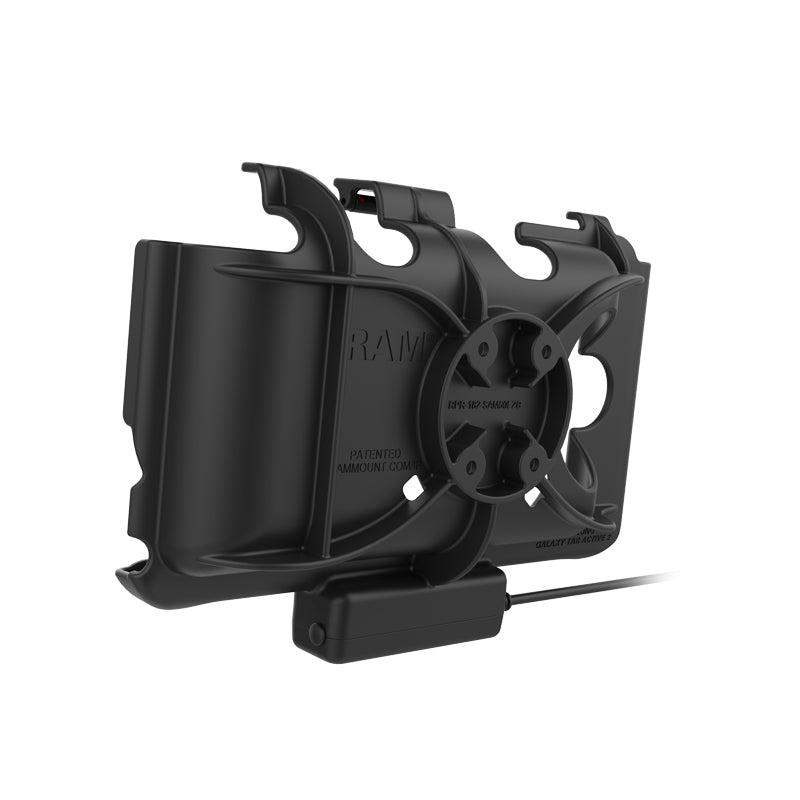

    • Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
    • Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
    • Vehicle hardwire charger included
    • Backed by a 3-year warranty

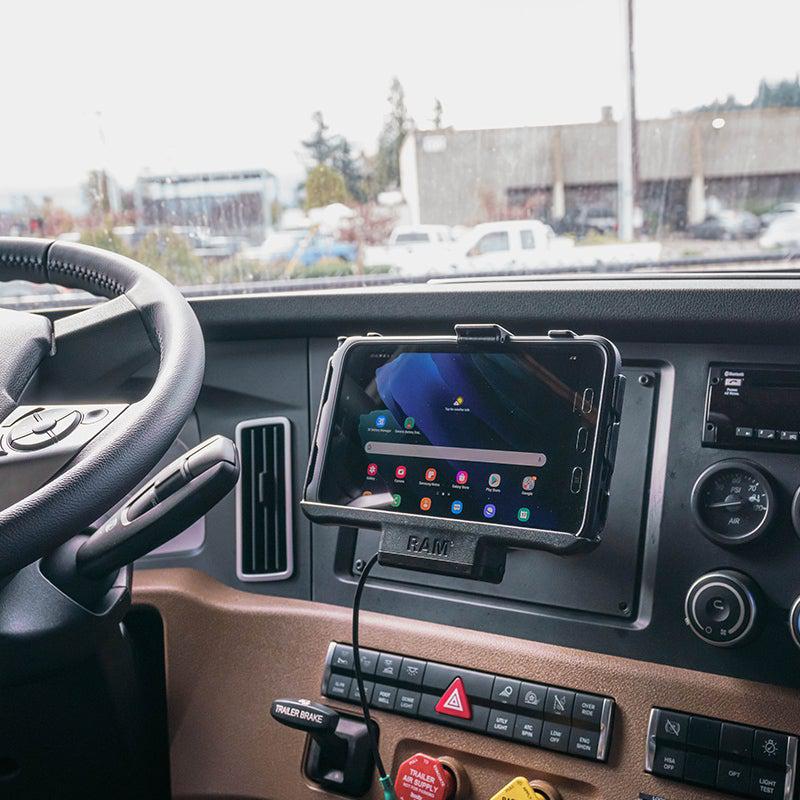

      This powered cradle for the Samsung Tab Active5, Active3 and Tab Active2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more.

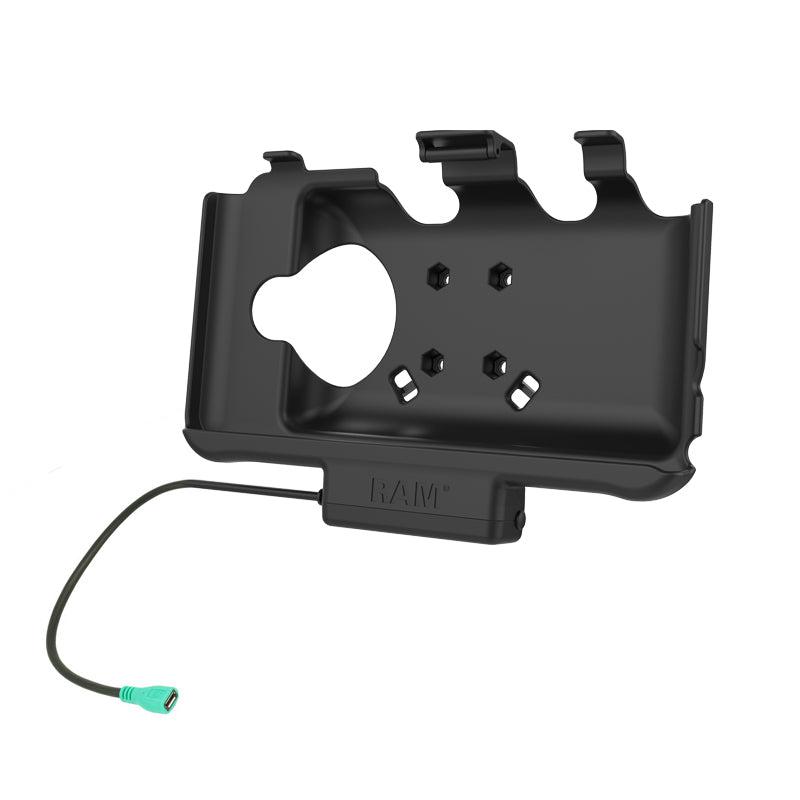

      This ultra-low cost cradle provides power to the device through the pogo pin interface on the tablet and can be easily rotated for both portrait and landscape operation of the device.

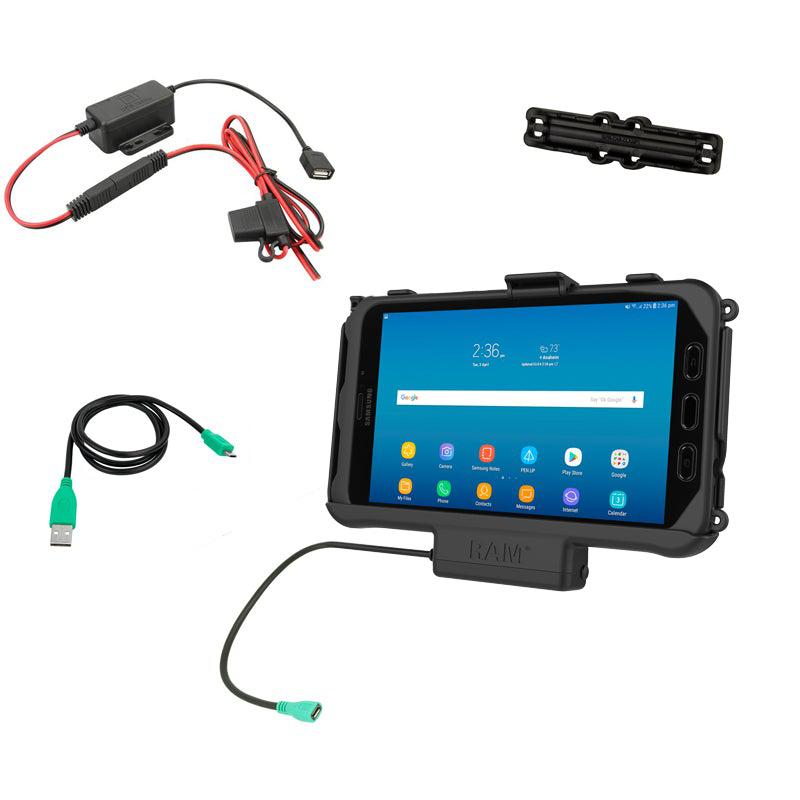

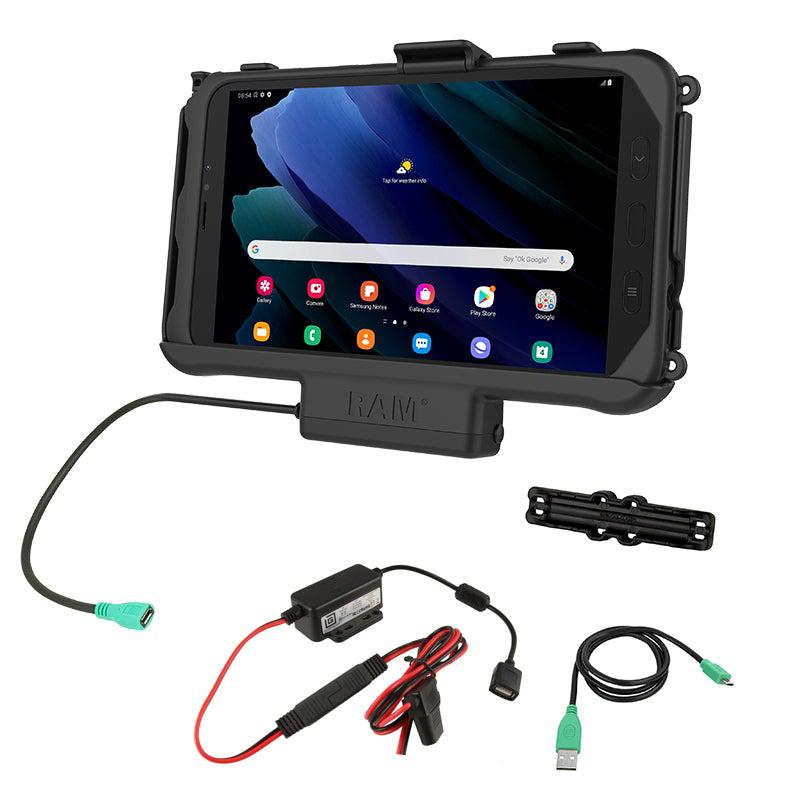

      Also included is the mUSB female pigtail, GDS® USB 2.0 cable, cable clamp with zip ties, and a vehicle hardwire charger.

      Specs

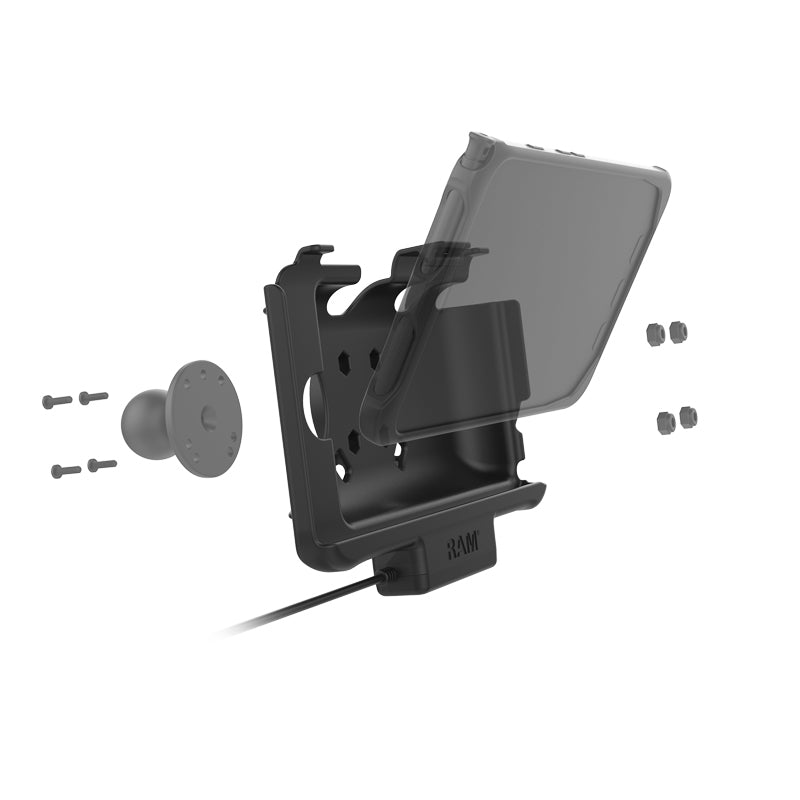

      HARDWARE INCLUDED
      (4) #8-32 x 5/8" Machine Screws
      (4) #8-32 Nylock Nuts
      (1) GDS® Genuine USB 2.0 Straight Cable
      (1) Optional Cable Clamp Housing
      (2) Large Cable Ties
      (5) Small Cable Ties
      (1) Hardwire Charger

      PRODUCT DIMENSIONS
      Width: 9.24"
      Height: 6.34"
      Depth: 2.57"

      HOLE PATTERN
      4-Hole AMPS: 1.181" x 1.496"

      MATERIALS
      High strength composite

      PACKAGING TYPE
      Poly Bag

      INPUT VOLTAGE
      10V - 30V DC

      OUTPUT VOLTAGE
      5-9VDC

      OUTPUT CURRENT
      2.5A max

      INPUT CONNECTOR
      mUSB 2.0

      INPUT CABLE LENGTH
      .21 Meter

      OPERATING TEMPERATURE
      -10°C to +70°C

      STORAGE TEMPERATURE
      -40°C to +70°C

      COMPLIANCE
      Over Voltage Protection
      Short Circuit Protection
      Reverse Polarity Protection
      RoHS Compliance
      WEEE Compliance
      SAE J-1113-5 Load Dump (Transient Voltage)
      Moisture Resistant

      CERTIFICATIONS
      CE Certification
      e-Mark Certification
      RCM Certification
      FCC Certification

      WEIGHT
      0.93 lbs.

      WARRANTY STATUS
      3 year warranty

      Compatibility
      • Samsung Tab Active5
      • Samsung Tab Active3
      • Samsung Tab Active2
      Help

      PDF icon Instructions for Modular Hardwire Charger
